Chapter 2: Jumpers and Connectors

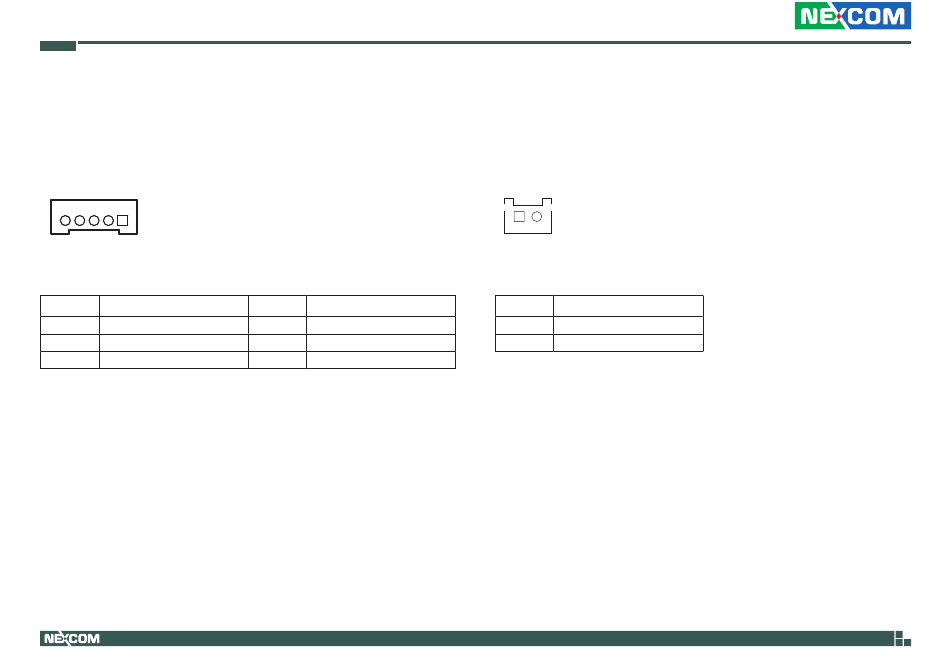

Active LED Connector

Connector type: 1x6 6-pin header JST, 2.5mm pitch
Connector location: J2
5 1
Pin Definition
1 HDD_GND
3 PWR_GND
5 VCC5
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 HDD_PWR
4 5VSB

Power Button

Connector type: 1x2 2-pin header JST, 2.0mm pitch
Connector location: J1
1 2
Pin Definition
1 PWRBT
2 GND
