Chapter 2: Jumpers and Connectors

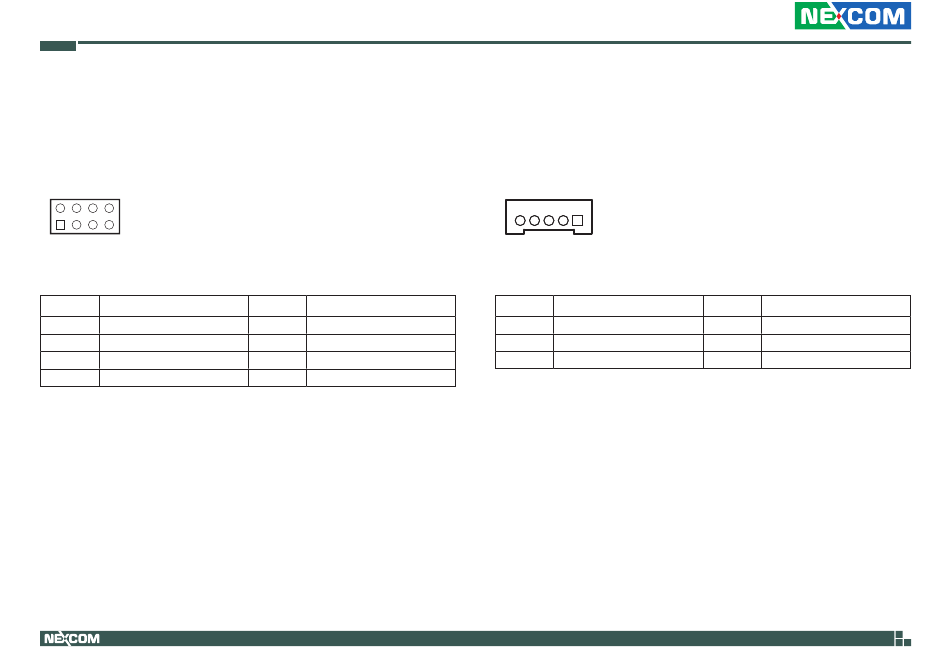

Keyboard/Mouse Connector

Connector type: 2x4 8-pin header, 2.54mm pitch
Connector location: JP7
2 8
1 7
Pin Definition
1 VCC5
3 KB_DATA
5 KB_CLK
7 GND
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VCC5
4 MS_DATA
6 MS_CLK
8 GND

Active LED Connector

Connector type: 1x6 6-pin header JST, 2.5mm pitch
Connector location: J2
5 1
Pin Definition
1 HDD_GND
3 PWR_GND
5 VCC5
39
Pin Definition
2 HDD_PWR
4 5VSB
OPPC 1240T/1540T/1740T/1940T Series User Manual
