STARTING THE MACHINE

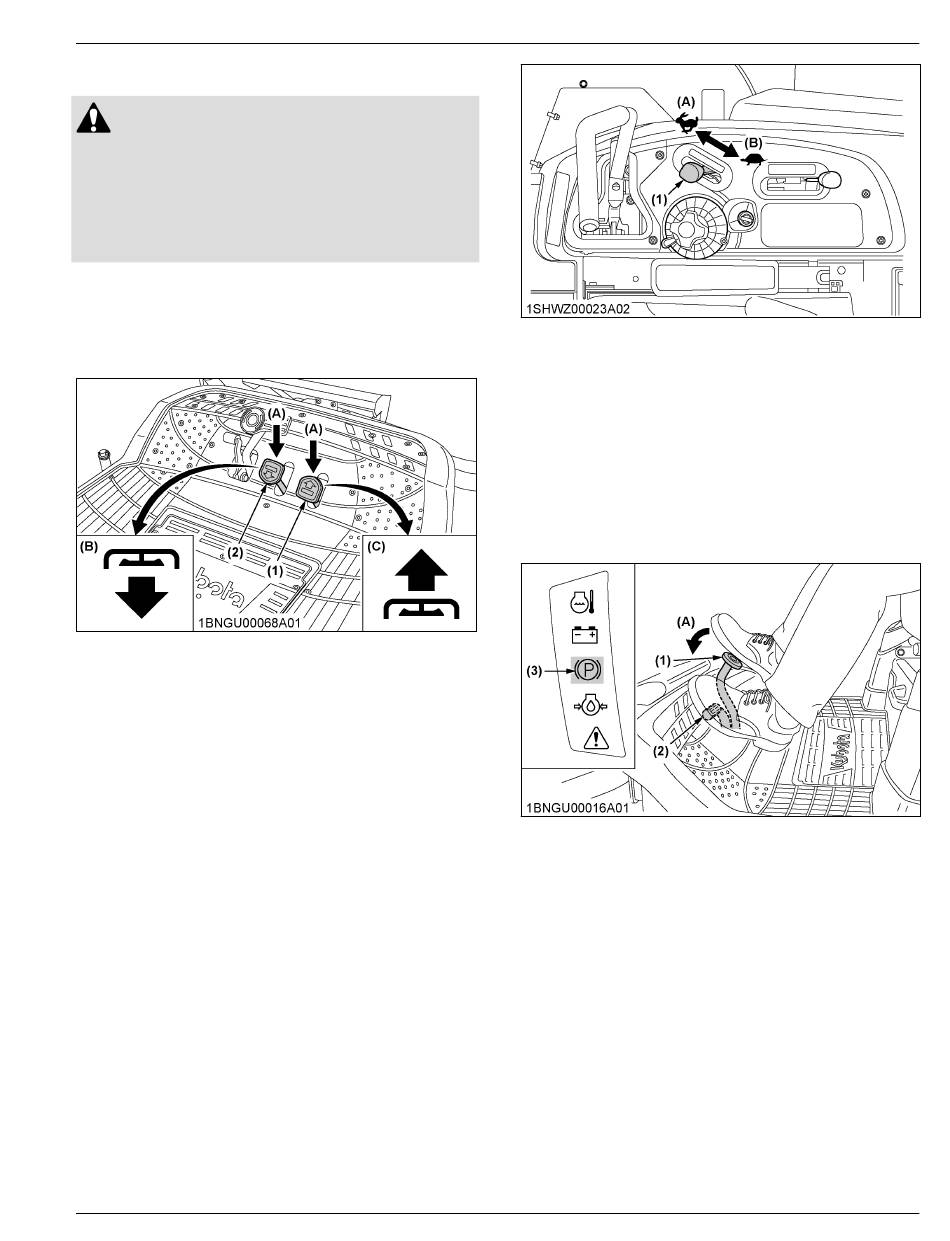

3. Hydraulic lift control pedal

WARNING
To avoid serious injury or death:
• When the engine is off, do not depress the
hydraulic lift control pedal.
When the engine is off, depressing the
hydraulic lift control pedal (UP or DOWN) will
lower the implement.
The hydraulic lift control pedal is used to raise and
lower the implement used with the machine (mower).
To lower the implement, depress the hydraulic lift
control pedal (DOWN).
To raise it, depress the hydraulic lift control pedal (UP).
(1) Hydraulic lift control pedal
(UP)
(2) Hydraulic lift control pedal
(DOWN)
IMPORTANT :
• Do not operate until the engine is warmed up. If
operation is attempted when the engine is still
cold, the hydraulic system may be damaged.
• Do not operate at slow engine rpm. Move the
accelerator lever above 1/2.
• If noises are heard when implement is lifting
after the hydraulic lift control pedal has been
activated, the hydraulic mechanism is not
adjusted properly. Contact your local Kubota
Dealer for adjustment.

4. Accelerator lever

• Move the accelerator lever backward to decrease
the engine speed.
• Move it forward to increase the engine speed.
ZD1611LF,ZD1611RLF,ZD1611RL
(A) "DEPRESS"
(B) "DOWN"
(C) "UP"
(1) Accelerator lever

5. Parking brake pedal

To apply the parking brake:
1. Depress the parking brake pedal firmly with your
right foot and the parking brake lock pedal
simultaneously with your left foot.
2. Then release the parking brake pedal while holding
the parking brake lock pedal down.
3. Parking brake warning indicator will come "ON".
(1) Parking brake pedal
(2) Parking brake lock pedal
(3) Parking brake warning indi-
cator
To release the parking brake:
Depress the parking brake pedal and release it slowly
with your right foot, without pressing the parking brake
lock pedal.
OPERATING THE MACHINE
(A) "INCREASE"
(B) "DECREASE"
(A) "DEPRESS"
