V09J
INSTALLATION & OPERATION MANUAL
ENERGY STORAGE SYSTEM (ESS)

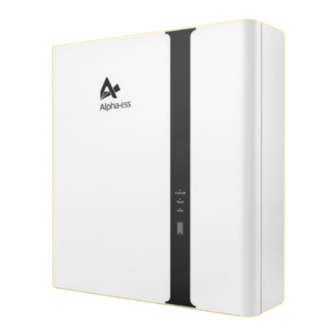

SMILE-B3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMILE-B3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpha ESS SMILE-B3

Summary of Contents for Alpha ESS SMILE-B3

  • Page 1 V09J INSTALLATION & OPERATION MANUAL ENERGY STORAGE SYSTEM (ESS) SMILE-B3...

  • Page 2: Table Of Contents

    CONTENTS Copyright Statement INTRODUCTION The copyright of this manual is owned by Alpha ESS Co., Ltd. (hereinafter referred to as "AlphaESS") and all rights are reserved. Please keep the manual properly and operate strictly 1. Introduction of System according to all safety and operation instructions in this manual. Do not operate the system 2.

  • Page 3: Introduction

    DANGER 1.1 System Introduction SMILE-B3 is an AC coupled all-in-one battery energy storage system (BESS). It can help Danger to life due to high voltages of battery and electric shock. to achieve the optimal usage of renewable energy. SMILE-B3 can control the Do not touch uninsulated cable termination.

  • Page 4: Installation

    2x Gum-elastic ring (AU version) (AU version) Table 4 SMILE-B3 Battery LED Display Table 2 Parts List of Battery Expansion Accessory Package SOC Status Description SMILE-B3 Battery Expansion Accessories (Optional, Standard for DE Version) SOC<5% 5%=<SOC<25% 25%=<SOC<50% Instruction 50%=<SOC<75% 1 x Battery 75%=<SOC<95%...

  • Page 5: Limitation Of Liability

    Any damage caused by external factors Main Battery Breaker 4. System Installation Sub Battery Breaker This manual introduces the basic steps how to install and set up SMILE-B3. Observe the specified minimum distance of adjacent objects; Minimum distance guarantee; Sufficient heat dissipation;...

  • Page 6: Installation Site And Environment

    Figure 2.6 Remove SMILE-B3 Packaging NOTE: Step 1 Take out SMILE-B3 from the packaging box, as shown in Figure 2.6 a ~ e rules are set according to AS/NZS5139. If you install the system in Australia or New Zealand, these rules must be followed. If the installing place is not in Australia or...
  • Page 7 Figure 2.11 Install SMILE-B3 Figure 2.9 Drill the Holes for Fixing and Step 6 Install SMILE-B3 on the wall bracket, as shown in Figure 2.11. Install Expansion Pipe Step 4 Drill holes at the position using a percussion drill (M12 drill, depth of hole: 70mm).
  • Page 8 The suggested torque for the waterproof contact is 3.75 N.m±10%. Figure 2.12 Fix SMILE-B3 to the Wall Bracket Step 7 Use a T20 screwdriver and M4*12 screws in the package to fix Smile-B3 to the wall bracket, as shown in Figure 2.12.

  • Page 9: Battery Expansion

    INSTALLATION INSTALLATION NOTE: Please tighten the screws here with the torque of 2 N.m±10% to avoid problems such as poor signal. NOTE: If using WiFi module, open the cover plate of the side WiFi module, insert the WiFi module into the terminal port and then fix it with screws by using T20 double offset ring spanner, as shown in Figure 2.16.
  • Page 10 Figure 2.18 Figure 2.22 Install the Positioning Bracket Step 5 After installing the expansion bracket, match the wall bracket with SMILE-B3, and Figure 2.19 Remove the Decoration of M4856-P use M5*10 screws to lock and fix, then locate and trace.
  • Page 11 1. Please use the leveling instrument to confirm the hanging bracket installed on a horizontal line to ensure the equipment not to be deflected. 2. If the positioner is not removed, SMILE-B3 can not be removed separately. Figure 2.27 Fix the Wall Bracket and the Expansion Bracket Step 10 If you want to install more battery modules, please take out the wall bracket and expansion bracket and fix them referring to Step 1- Step 3.
  • Page 12 INSTALLATION INSTALLATION NOTE: It is not required to to fix the expansion bracket to the previous wall bracket, just place them together for positioning; and then remove the expansion bracket after tracing points. Figure 2.29 Holes for Fixing Bracket Step 12 Drill holes at the position using a percussion drill (M12 drill, depth of holes: Figure 2.31 Install the Battery 70mm).
  • Page 13 INSTALLATION INSTALLATION Figure2.33 Remove the Maintenance Cover of M4856-P Step 16 Remove the maintenance cover (Figure 2.33) Figure 2.36 Connect the Negative Power Line Step 19 Connect negative power line for expansion (Figure 2.36). Figure 2.34 Confirm Circuit Breaker Status Step 17 Confirm that the status of circuit breaker is OFF.
  • Page 14 Step 24 Install the maintenance cove with the torque being 2.8 N.m±10%. NOTE: If there is only one M4856-P to be connected, switch off the DIP2 in SMILE-B3 and switch on the DIP2 in M4856-P. If there are more than two batteries to be connected, please refer to DIP switch...

  • Page 15: Electricity Meter Wiring

    INSTALLATION INSTALLATION 2.4.5 Electricity Meter Wiring ADL-3000 Connection (with CT and Meterplug): The power meter should be installed and connected in the distribution box. There are several types of power meters, available for CT, ADL-3000 or ACR10R. CT: 100A, 1:3000 ADL-3000: Three-phase electricity meter (with or without CT) ACR10R: Three-phase CT electricity meter (with CT) Table 6 CT Meter Ratio and Accuracy Table...
  • Page 16 5.1.2. NOTE: This function is released in SMILE-B3 EMS firmware version V1.00.33 or above. In AC system and the mixed installation of CT and meter situation, the meter address should be also set in the meter, please refer to 2.4.5.5.1 (ADL3000) and 2.4.5.5.2 (ACR10R).

  • Page 17: Switch On

    4. If PV is applied, the PV-INV switch: OFF 5. GRID / LOAD cables are firmly and correctly connected; 6. External grid AC switch is correctly connected between SMILE-B3 GRID port & GRID, AC circuit breaker: OFF; 7. If backup load is applied, external backup AC switch is correctly connected to SMILE-B3 Load port, AC circuit breaker: OFF;...

  • Page 18: Emergency Procedure

    3. Emergency Procedure There may be a possible explosion when batteries are heated above 150°C. When the When the SMILE-B3 Battery energy storage system appears to be running abnormally, battery pack is burning, it leaks poisonous gases. Do not approach.

  • Page 19: System Registration

    Successfully configured Wi-Fi admin Change Enter the password Password Next Log in to your installer account and choose Storage System Maintenance> "Install new system" to register new system at Alpha ESS. Submit Figure 4.7 WiFi Setting Figure 4.8 Configuration Success...

  • Page 20: System Setup In Monitoring

    After that you must specify whether you have installed a CT or an electricity meter (ADL3000 or ACR10R) and in the case of electricity meters, please further select with or The system settings of the SMILE-B3 must be carried in the installer monitoring. To do without CT were connected.

  • Page 21: Other Information

    - ACDC mode: it should be AC mode are compulsory, and you can select - Time zone the finally users or installation -Data upload frequency: SMILE-B3 has second level data, you can choose it as 10s data procedures. if you wish. *Serial number: EMS serial number...
