2.2 System Overview and General Specification

2.2.1 System Configuration for Stand-Alone Model

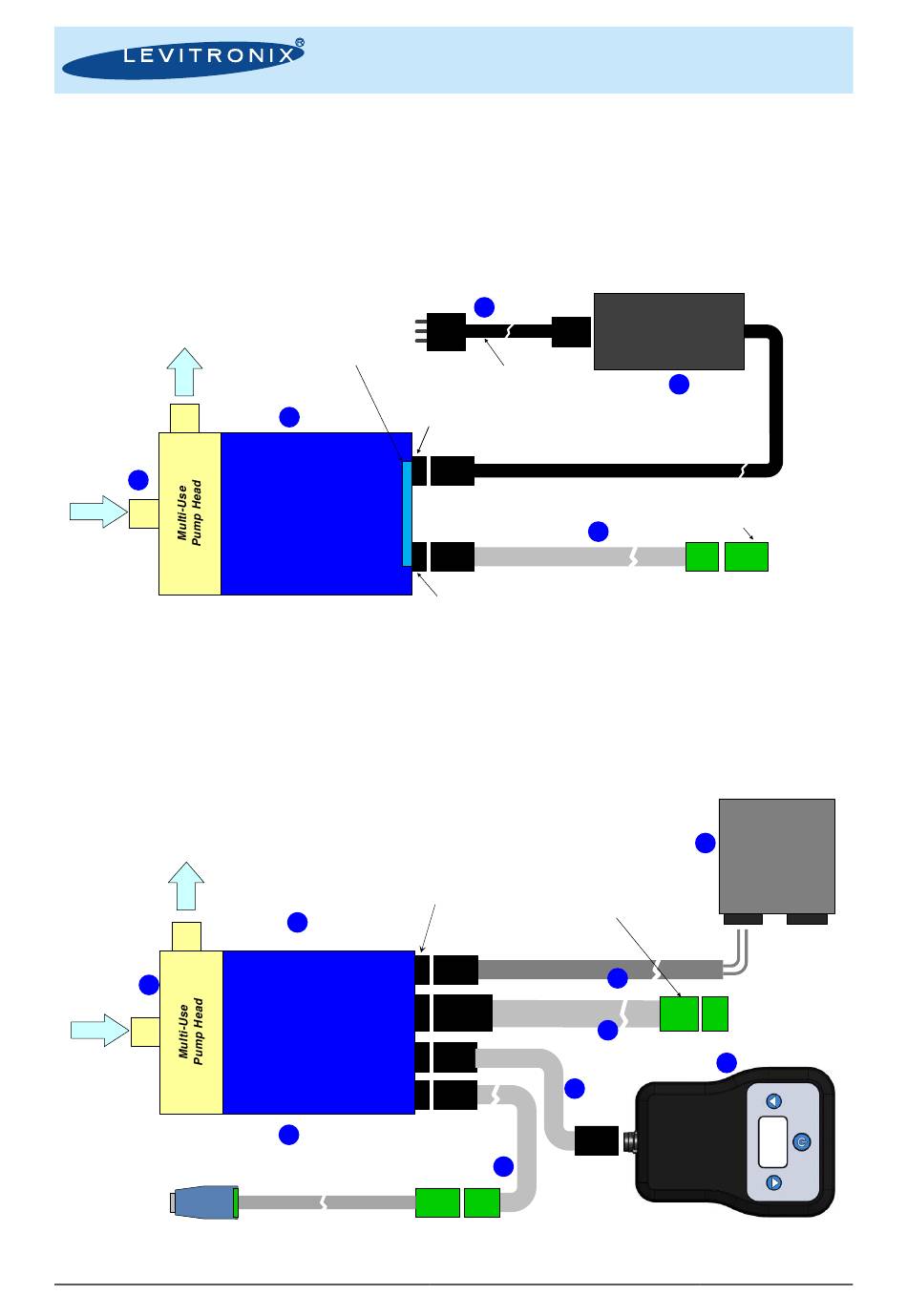

Figure 4 illustrates the system configuration of the Stand-Alone model with integrated user panel and buttons
to set the speed manually. The driver also contains a PLC interface for remote speed control by analog and
digital signals. Various accessories are available like a desktop power supply with relevant power cable and
signal cables to connect to the PLC.
Outlet
1
Inlet
Figure 4: Standard system configuration for Stand-Alone Model
2.2.2 System Configurations for EasyConnect Model
The EasyConnect model (see Figure 5 and Figure 6) with relevant cable accessories is designed to realize
various interface configurations with minimal setup effort. The PLC interface allows not only remote control by
analog/digital signals but also connections of external sensors hence enabling for example a precise flow or
pressure control (see notes below).
Outlet
1
Inlet
Integrated Pump Driver
EasyConnect Model
PC Connection:
- System configuration
- Firmware update
- Monitoring
Figure 5: Standard system configuration for EasyConnect model
