4.1.2 Overview Electrical Schematics of Stand-Alone Driver Interface
Levitronix Driver
Interface Circuit
2.2 k
450 
Analog inputs are not galvanic isolated.
Max. pin voltage to GND = 10 V
Max. 24 V / 100 mA
Open
Drain
GND
30 V
10 A
5 A

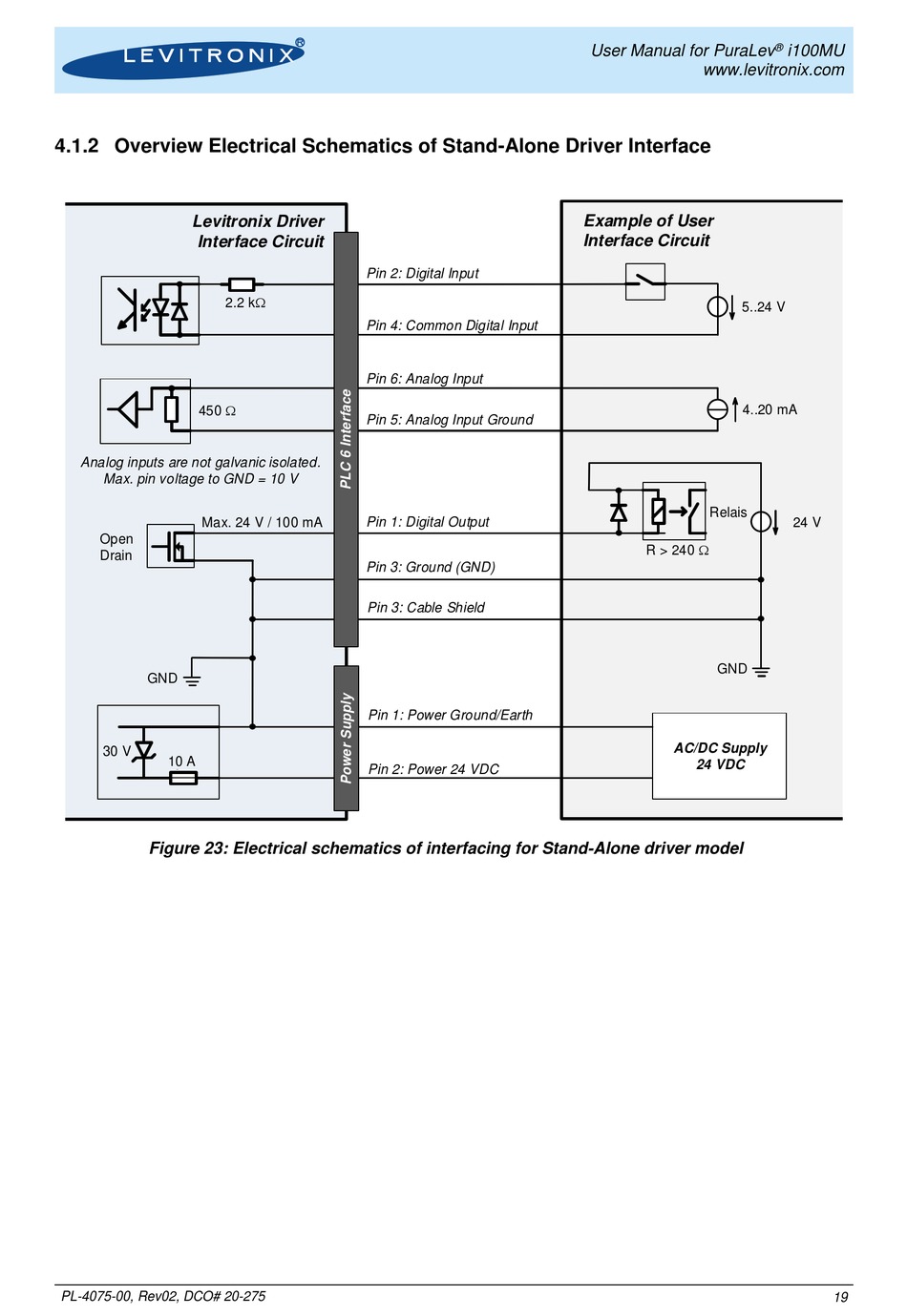

Figure 23: Electrical schematics of interfacing for Stand-Alone driver model
PL-4075-00, Rev02, DCO# 20-275
Pin 2: Digital Input
Pin 4: Common Digital Input
Pin 6: Analog Input
Pin 5: Analog Input Ground
Pin 1: Digital Output
Pin 3: Ground (GND)
Pin 3: Cable Shield
Pin 1: Power Ground/Earth
Pin 2: Power 24 VDC
