4 Installation

4.1 Electrical Installation of Stand-Alone Model

4.1.1 Overview of Connections and Designations
PLC Connector
Pin Wire
Pin #
1
Name Color
B P + red
A P - black
C NC --
1-14 NC --
1: Wire colors of compatible cables: ICP-2.1-xx.
Pin Wire
Pin #
1
Name Color
pink
6 Ain1
blue
5 Ain_GND
red
1 Dout1 white
brown
3 GND black
Shield
2 Din1
yellow
4 Din_COM
grey
2: Designations for standard firmware. For other firmware refer to relevant documentation.
PL-4075-00, Rev02, DCO# 20-275

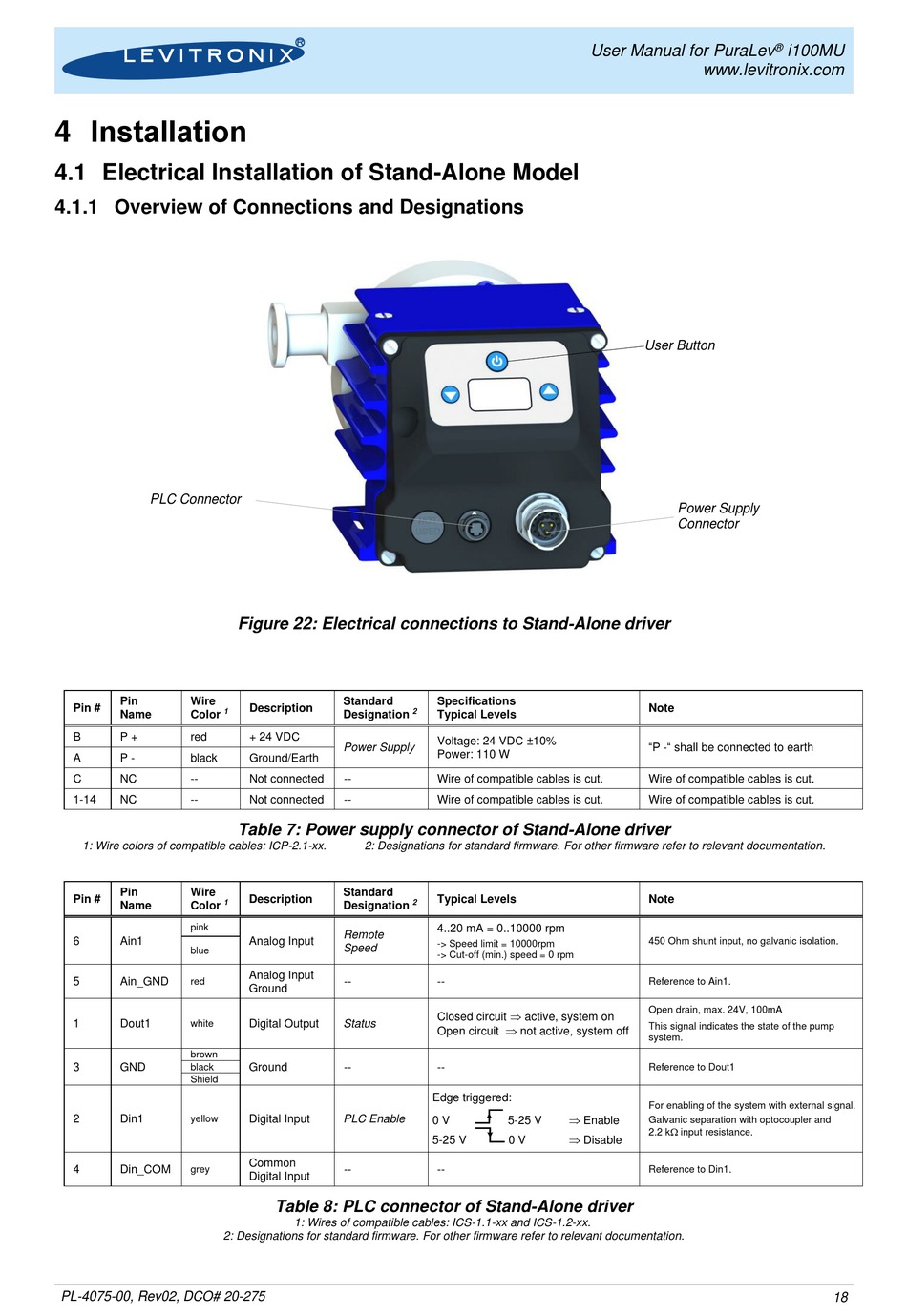

Figure 22: Electrical connections to Stand-Alone driver
Standard
Description
Designation
+ 24 VDC
Power Supply
Ground/Earth
Not connected --
Not connected --
Table 7: Power supply connector of Stand-Alone driver
2: Designations for standard firmware. For other firmware refer to relevant documentation.
Standard
Description
Designation
Remote
Analog Input
Speed
Analog Input
--
Ground
Digital Output Status
Ground --
Digital Input PLC Enable
Common
--
Digital Input
Table 8: PLC connector of Stand-Alone driver
1: Wires of compatible cables: ICS-1.1-xx and ICS-1.2-xx.
Specifications
2
Typical Levels
Voltage: 24 VDC ±10%
Power: 110 W
Wire of compatible cables is cut.
Wire of compatible cables is cut.
Typical Levels
2
4..20 mA = 0..10000 rpm
-> Speed limit = 10000rpm
-> Cut-off (min.) speed = 0 rpm
--
Closed circuit  active, system on
Open circuit  not active, system off
--
Edge triggered:
 Enable
0 V 5-25 V
 Disable
5-25 V 0 V
--
User Manual for PuraLev
www.levitronix.com
User Button
Power Supply
Connector
Note
"P -" shall be connected to earth
Wire of compatible cables is cut.
Wire of compatible cables is cut.
Note
450 Ohm shunt input, no galvanic isolation.
Reference to Ain1.
Open drain, max. 24V, 100mA
This signal indicates the state of the pump
system.
Reference to Dout1
For enabling of the system with external signal.
Galvanic separation with optocoupler and
2.2 k input resistance.
Reference to Din1.
®
