2.1 System Overview and General Specification

Figure 3 shows the mayor components of the BPS-200 pump system. Two basic system configurations are
available. The stand-alone configuration (Figure 1), consists of a controller with an integrated user panel to
set the speed manually and a reduced PLC for speed setting with an analoge signal. The extended version
(Figure 2) consists of a controller with extended integrated PLC functions. This allows setting the speed by
an external signal and enables precise flow or pressure control together with a flow or pressure sensor
3a
8a
1
4
2

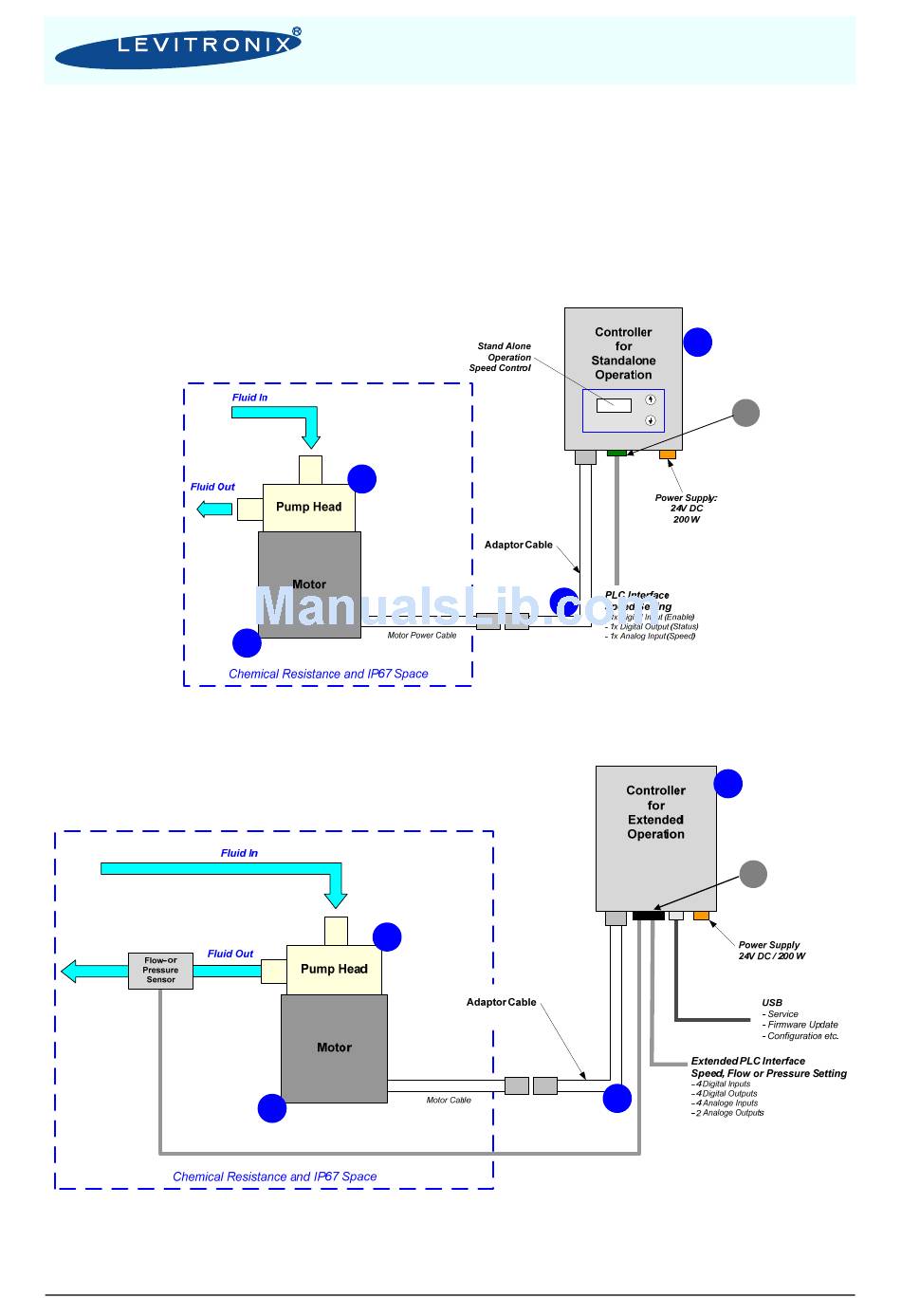

Figure 1: Standard system configuration for standalone operation
(Speed setting with integrated user panel)
3b
8b
1
4
2
Figure 2: Standard system configuration for extended operation
(Pressure or flow control with external sensor)
