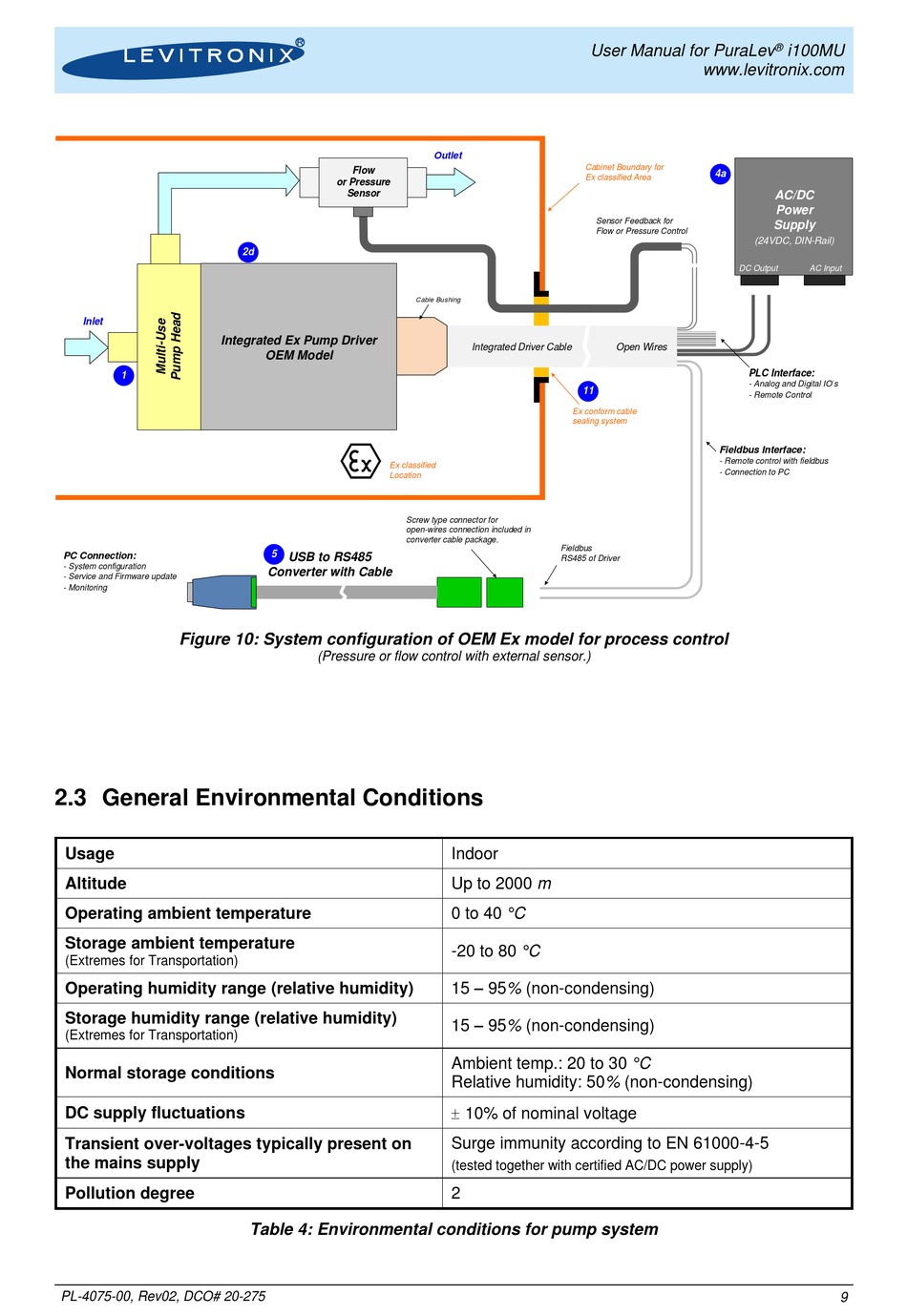

Figure 10: System configuration of OEM Ex model for process control

2.3 General Environmental Conditions

Usage
Altitude
Operating ambient temperature
Storage ambient temperature
(Extremes for Transportation)
Operating humidity range (relative humidity)
Storage humidity range (relative humidity)
(Extremes for Transportation)
Normal storage conditions
DC supply fluctuations
Transient over-voltages typically present on
the mains supply
Pollution degree
PL-4075-00, Rev02, DCO# 20-275
Flow
or Pressure
Sensor
2d
OEM Model
Ex classified
Location
Screw type connector for
open-wires connection included in
converter cable package.
5
USB to RS485
Converter with Cable
(Pressure or flow control with external sensor.)
Table 4: Environmental conditions for pump system
Outlet
Cabinet Boundary for
Ex classified Area
Cable Bushing
Integrated Driver Cable
11
Ex conform cable
sealing system
Fieldbus
RS485 of Driver
Indoor
Up to 2000 m
0 to 40 °C
-20 to 80 °C
15 – 95% (non-condensing)
15 – 95% (non-condensing)
Ambient temp.: 20 to 30 °C
Relative humidity: 50% (non-condensing)
 10% of nominal voltage
Surge immunity according to EN 61000-4-5
(tested together with certified AC/DC power supply)
2
