PuraLev
This manual contains information necessary for the safe and proper use of the PuraLev
Console. Included are specifications for the standard configurations and instructions regarding its use,
installation, operation, adjustment, inspection and maintenance. For detailed description of the menu
structure and the configuration possibilities with the touch screen user interface the console software
manual PL-4067-00 can be consulted. For all in this manual revision described configurations and features
the console software LCO V1.09 R19 or higher is needed. For special configurations of the system refer to
accompanying information. Please familiarize yourself with the contents of the manual to ensure the safe
and effective use of this product. After reading this manual, please store the manual where the personnel
responsible for operating the pump system can readily refer to it at any time.
PL-4066-00, Rev05, DCO#
24-013
PuraLev
LCO-i100
®
i30SU/MU, PuraLev
PuraLev
USER MANUAL
This document and its content are confidential and the property of Levitronix
disclosed or used for manufacturing or sale of Levitronix
User Manual for LCO-i100 Console
®
Console
®
i100SU/MU
®
i600SU
®
and shall not be reproduced, distributed,
®
products without the expressed written consent of Levitronix
www.levitronix.com
®
LCO-i100
First Release: 09-Feb-2017
®
.
Last Update:
02-Feb-2024
Advertisement
Table of Contents
Related Manuals for Levitronix PuraLev Console LCO-i100
Summary of Contents for Levitronix PuraLev Console LCO-i100
- Page 1 ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, First Release: 09-Feb-2017 ®...
-
Page 2: Table Of Contents
Disposal of Equipment – WEEE Directive 2012/19/EU ........................... 19 9.1.4 Symbols and Signal Words................................20 ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix... -
Page 3: Safety Precautions
Use the standard specified AC/DC supplies. A mains protection with residual or leakage current circuit breaker is recommended. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 4: Specifications

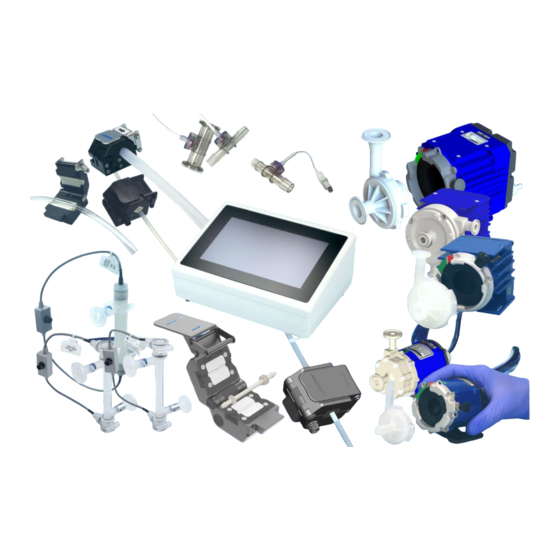

Note 3: Sterile fitting options available. Figure 1: LCO-i100 console with compatible drivers and pump heads ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... - Page 5 LFSC-ixxX.1 (for SU flow pipes of LFP-SU series) compatible with LCO-i100 console. Figure 2: Sensors compatible with LCO-i100 console. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®...
- Page 6 Note 1: ID is 13/8”. Figure 3: Pressure sensors compatible with LCO-i100 console. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix...
- Page 7 Table 7: Specification of standard cables and AC/DC desktop supplies for console. Figure 4: Accessories (Cables and AC/DC supplies). ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®...
-
Page 8: System Overview And General Specification
Figure 6: Stand-alone pump system configuration for PuraLev i600 pump system ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix... -
Page 9: Extended System Configuration
Note 1: For PuraLev® i600 pump system the power supply and console connection concept shown in Figure 6 has to be used. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ®... -
Page 10: General Environmental Conditions
2.4 Basic Dimensions of Console Figure 8: Basic dimensions (in mm) of console LCO-i100 ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix... -
Page 11: Engineering Information
Figure 9: Bottom view of the console housing Note 1: Not available on units older than 2018/19. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 12: Electrical Installation
Note 1: Not available on units older than 2018/19. Note 2: Not available on units older than 2020. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 13: Plc Interface
6: Digital In 2 Low Pin Figure 11: Connection example of PLC interface of Console to user interface ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 14: Analog Input With 24Vdc Supply
5: Do not use. Figure 12: Connection example of Analog Input with 24VDC supply of console to sensor ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 15: General Installation Instructions
5. Assure that all unused connectors are properly sealed with the corresponding protection cap. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 16: Operation
By pressing the power button for more than 4 s, the console is immediately powered off, even in the case of a software failure. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 17: Auto-Resume Feature
CAUTION The update procedure can take several minutes. Do not power off the console! ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix... -
Page 18: Maintenance
If problems or failures can’t be solved with the help of the notification on the console screen, it is recommended to capture a data log during operation, as described in LCO Console Software Manual PL-4067-00, until the ® failure appears and then send the data log file to the Levitronix Technical Service Department or the appropriate key account manager. -
Page 19: Appendix
Follow local legislation for disposal of equipment. In the European Union (EU) marked ( ) devices are governed by the European WEEE Directive 2012/19/EU. Do not dispose with normal waste. ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ®... -
Page 20: Symbols And Signal Words
Prohibition Table 13: Safety symbols and signal words ® PL-4066-00, Rev05, DCO# 24-013 This document and its content are confidential and the property of Levitronix and shall not be reproduced, distributed, ® ® disclosed or used for manufacturing or sale of Levitronix...
