Detail X:
Inlet/Outlet Fitting: 1/2" Triclamp
Clamp OD = 25mm for Mini-Clamp ½"
Bore ID = 9.5 mm
Standard: BS-4825-3

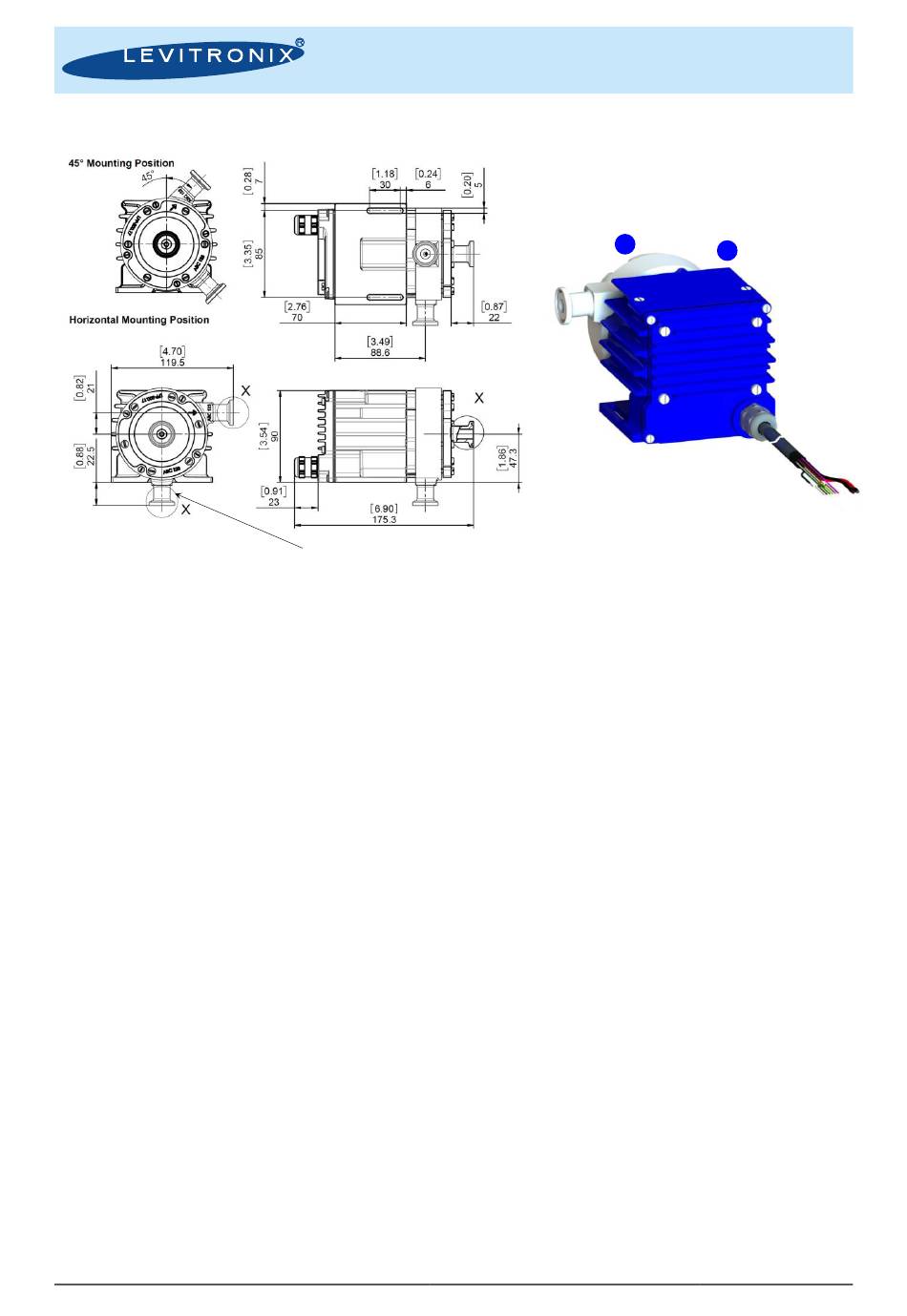

Figure 15: Basic dimensions (in [mm] and [inch]) of OEM model
PL-4075-00, Rev02, DCO# 20-275
Drain Port
(Not on LPP-200.16)
(Pump head LPP-200.16 has same dimensions but no drain port.)
User Manual for PuraLev
www.levitronix.com
Multi-Use
Pump Head
LPP-200.17
Driver IPD-100.1
1a
(Epoxy Coating)
2a
Driver Cable
(PVC with Open Wires)
®
i100MU
