4.4 Mechanical Installation

The driver is not rated to be placed next to flammable gases. Do not use
the driver next to flammable gases without adequate safety precautions
to fulfill the relevant regulatory requirements.
The driver can be fixed with four screws on the motor feet (see Figure 13, Figure 14 and Figure 15). Mounting
of the driver can be done in either the horizontal or vertical position.
When mounting the pump head fittings into a circuit it shall be assured, that no mechanical stress is acting on
the fittings, which can result in distorting creeping effects.
The outlet orientation of the pump head can be changed in steps of 45° by assembling the pump head
accordingly (see Figure 29).

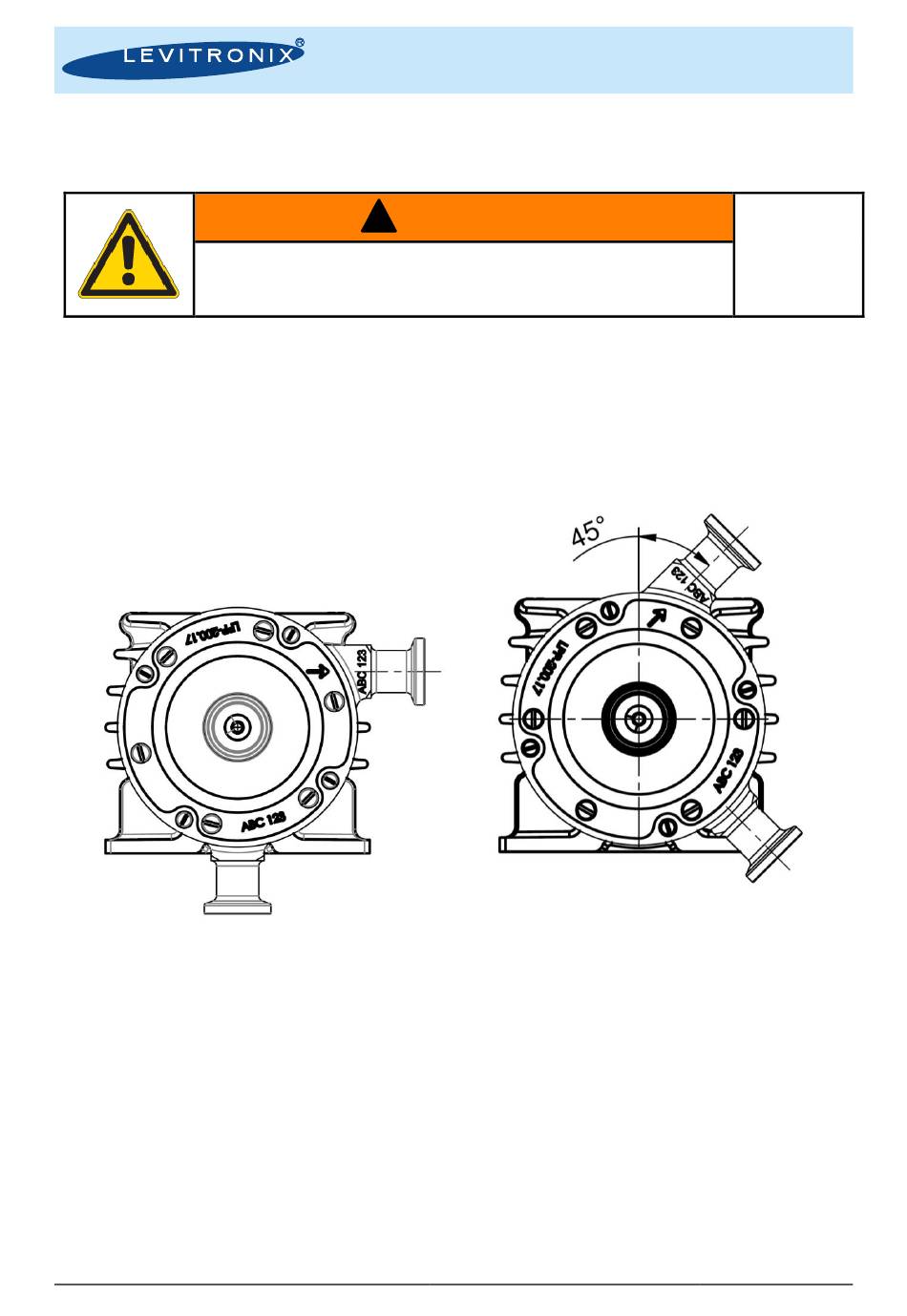

Figure 29: Horizontal and 45° orientation of pump head LPP-200.17
PL-4075-00, Rev02, DCO# 20-275
! WARNING
Horizontal
Pump Head Outlet
Drain Port
(Not on LPP-200.16)
User Manual for PuraLev
www.levitronix.com
45° Pump Head Outlet
Drain Port
(Not on LPP-200.16)
®
