FEATURES
Input voltage: 2.4 V to 5.5 V
Evaluates three regulators (Buck 1, Buck 2, and LDO)
2
USB to I
C interface translation
Jumpers for input current measurement of regulators
Supports EN, SYNC, and XSHTDWN pin interface
Evaluation software included
GENERAL DESCRIPTION
The evaluation system is composed of a motherboard and
a daughterboard. The motherboard provides the I
from the computer USB port and generates the I/O voltages
and digital high and low signals for the daughterboard.
Rev. 0
Evaluation boards are only intended for device evaluation and not for production purposes.
Evaluation boards are supplied "as is" and without warranties of any kind, express, implied, or
statutory including, but not limited to, any implied warranty of merchantability or fitness for a
particular purpose. No license is granted by implication or otherwise under any patents or other
intellectual property by application or use of evaluation boards. Information furnished by Analog
Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result
from its use. Analog Devices reserves the right to change devices or specifications at any time
without notice. Trademarks and registered trademarks are the property of their respective owners.
Evaluation boards are not authorized to be used in life support devices or systems.
Evaluation Board for Power Management
2
C® signals

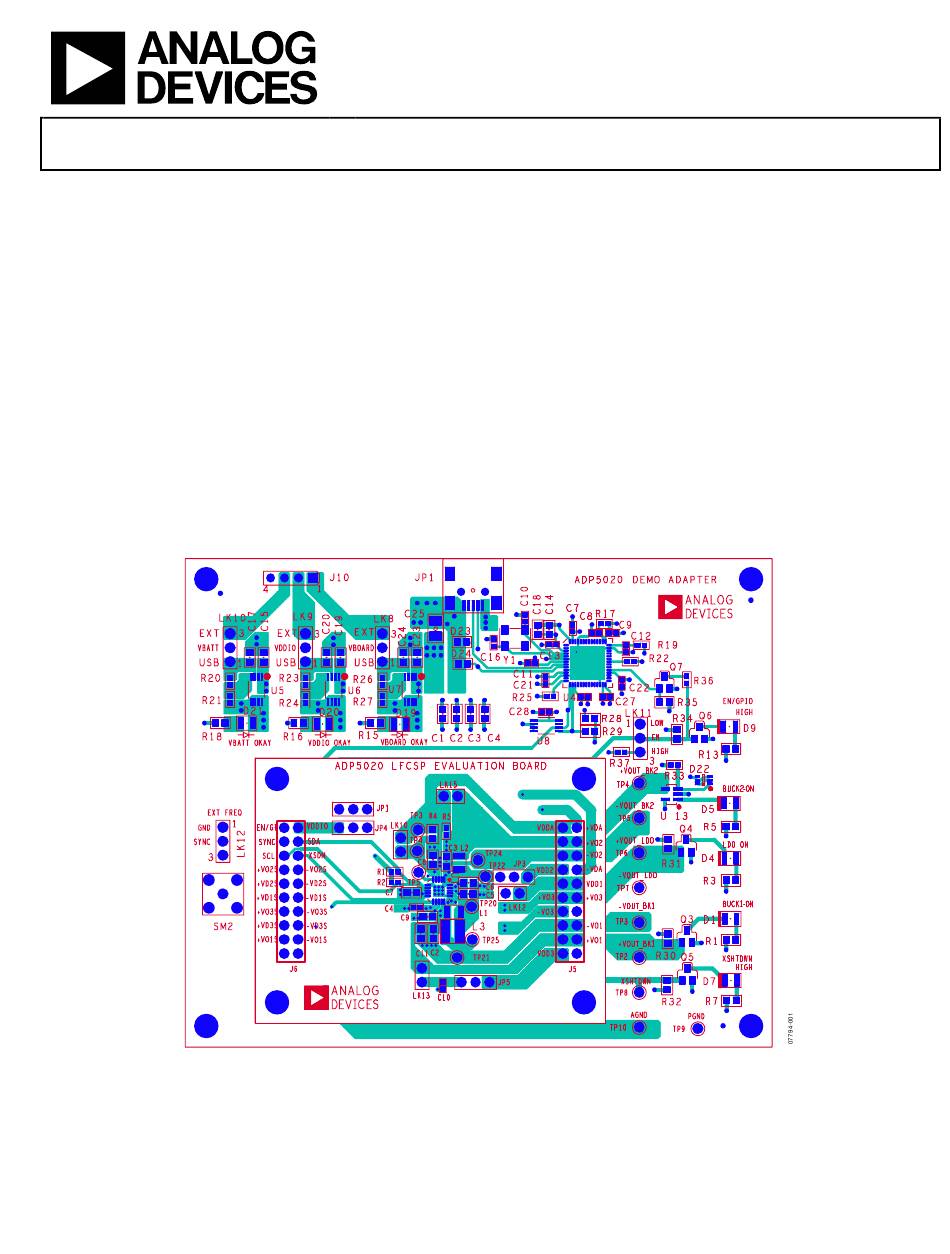

MOTHERBOARD AND DAUGHTERBOARD LAYOUT
Figure 1.
Unit for Imaging Modules
The motherboard features a 3.3 V regulator (VBOARD) a 3.7 V
regulator (VBATT) and a 2.0 V regulator (VDDIO). VDDIO is
the digital I/O voltage supplying the I
pins. VBOARD is the motherboard logic supply while VBATT
provides power to the daughterboard. Jumpers on the top left
of the motherboard define whether the internal regulators are
supplied from the USB port or from external supplies connected to
J10. The VBUS line from the USB connector powers the mother-
board regulators when Jumper LK8 to Jumper LK10 are in the
USB position. Connector J10 provides supply voltages for the
motherboard and daughterboard when Jumper LK8 to Jumper
LK10 are in the EXT position.
The daughterboard contains numerous jumpers, LEDs, and test
points for easy evaluation and monitoring of the board.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
©2009 Analog Devices, Inc. All rights reserved.
EVAL-ADP5020
2
C interface and the control
www.analog.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-ADP5020
Summary of Contents for Analog Devices EVAL-ADP5020
-
Page 1: Features
Devices for its use, nor for any infringements of patents or other rights of third parties that may result One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. from its use. Analog Devices reserves the right to change devices or specifications at any time www.analog.com Tel: 781.329.4700... -
Page 2: Table Of Contents
EVAL-ADP5020 TABLE OF CONTENTS Features ....................1 Additional Commands .............. 12 General Description ................. 1 Warning ..................12 Motherboard and Daughterboard Layout ........1 History ..................12 Revision History ................2 Evaluation Board Overview ............13 Software Installation................. 3 Motherboard ................13 USB Driver Installation.............. -
Page 3: Software Installation
EVAL-ADP5020 SOFTWARE INSTALLATION Before starting the software installation, make sure that the Click Next > to install the files to the default destination ADP5020 adapter board is not connected to the PC USB port. folder or click Browse… to choose a different file. - Page 4 EVAL-ADP5020 10. Click Finish to complete the installation. Click Next > to install the program to the default program folder. Figure 8. InstallShield Wizard Complete Figure 6. Select Program Folder Wait while the program installs. Figure 7. Setup Status Rev. 0 | Page 4 of 24...
-
Page 5: Usb Driver Installation
EVAL-ADP5020 USB DRIVER INSTALLATION Plug the ADP5020 board into the computer using the USB Open the Device Manager and check that the USB driver is cable provided with the evaluation kit. Once the system recog- installed properly. nizes the board, the dialog box shown in Figure 9 appears. -
Page 6: Evaluation Board Software
Click the Start button, located at the bottom left-hand corner of Regs Refresh check box is cleared (status registers are not read periodically). your desktop. Select All Programs, then Analog Devices, then ADP5020 Evaluation Software, and then ADP5020 Evaluation •... - Page 7 EVAL-ADP5020 ENABLE CONTEXT HELP CLOSE APPLICATION VIEW/MODIFY REGISTERS CREATE SOFTWARE SEQUENCING READ DEVICE REGISTERS STOP WRITE DEVICE APPLICATION REGISTERS Figure 13. ADP5020 GUI Rev. 0 | Page 7 of 24...
-
Page 8: Using The Software
EVAL-ADP5020 USING THE SOFTWARE 1. VIEW/MODIFY REGISTER SETTINGS. 2. PROGRAM/RUN SOFTWARE TURN-ON SEQUENCE. 3. PROGRAM/RUN SOFTWARE TURN-OFF SEQUENCE. 4. REGISTERS COMMANDS. 5. REGISTERS COMMANDS OPTIONS. 6. LOAD/SAVE REGISTERS CONFIGURATION. Figure 14. Evaluation Board Software VIEW/MODIFY REGISTER SETTINGS Before running the software, ensure that the board is plugged... - Page 9 EVAL-ADP5020 The LDO Vout Selection drop-down box allows you to change The Buck 2 PGOOD check box shows the power-good status the LDO regulator output voltage to one of the following settings: for the Buck 2 regulator. If the check box is selected, the Buck 2 1.8 V, 1.9 V, 2.0 V, 2.1 V, 2.2 V, 2.3 V, 2.4 V, 2.5 V, 2.6 V, 2.7 V, 2.8 V,...
-
Page 10: Program/Run Turn-On Sequence
EVAL-ADP5020 PROGRAM/RUN TURN-ON SEQUENCE Note that the timing used for the sequencing uses the PC internal clock with 1 ms resolution. In addition, there are time lags due to The TURN ON SEQUENCE section of the GUI window allows the program execution and communication with the adapter you to create and run simple activation patterns for the available board. -
Page 11: Register Command Options
EVAL-ADP5020 The register map utility does not have the Smart Update The Registers MAP button, when clicked, activates another option; therefore, a new value is written into the ADP5020 method to read and write the ADP5020 registers, as shown in following a write operation (by clicking the W or Write ALL Figure 19. -
Page 12: Load/Save Registers Configuration
EVAL-ADP5020 WARNING LOAD/SAVE REGISTERS CONFIGURATION Upon starting the ADP5020 application, a dedicated firmware The software program allows saving a specific register configura- is loaded into the adapter board processor (Cypress IC). This tion and loading it back into the USER REGISTERS section. -
Page 13: Evaluation Board Overview
EVAL-ADP5020 EVALUATION BOARD OVERVIEW MOTHERBOARD EXTERNAL SUPPLIES CONNECTOR INT/EXT SUPPLIES JUMPER SELECTION EN PIN EXTERNAL FORCING LEVEL VBATT LED INDICATOR EN/GPIO STATUS LED VDDIO LED INDICATOR VBOARD LED BUCK2 REGULATOR INDICATOR ACTIVATION LED SYNC PIN SELECTION LDO REGULATOR EXTERNAL ACTIVATION LED... -
Page 14: Daughterboard
EVAL-ADP5020 DAUGHTERBOARD Connect a power supply or Li-Ion battery with 2 A capability to VBATT. Up to 1.8 A (nominal) can be drawn from the The ADP5020 evaluation daughterboard is designed to quickly battery; therefore, short thick cables are recommended to evaluate key parameters of the ADP5020 IC. - Page 15 EVAL-ADP5020 Table 2. Measurement Signals on J6 Quiescent Current Measurement Signal J6 Pins Description The ADP5020 has separated supply lines for Buck 1 (V ), Buck 2 EN/GPIO EN/GPIO pin from IC ) and LDO (V ), in addition to the analog circuit supply...
-
Page 16: Evaluation Board Schematics
EVAL-ADP5020 EVALUATION BOARD SCHEMATICS MOTHERBOARD SCHEMATICS Figure 25. Motherboard Schematic—Main Section Rev. 0 | Page 16 of 24... - Page 17 EVAL-ADP5020 Figure 26. Motherboard Schematic—Interface Section Rev. 0 | Page 17 of 24...
-
Page 18: Daughterboard Schematic
EVAL-ADP5020 DAUGHTERBOARD SCHEMATIC Figure 27. Daughterboard Schematic Rev. 0 | Page 18 of 24... -
Page 19: Pcb Layout
EVAL-ADP5020 PCB LAYOUT Evaluation Board Layout Figure 30. Inner Layer 2 Figure 28. Top Layer Figure 31. Bottom Layer Figure 29. Inner Layer 1 Rev. 0 | Page 19 of 24... - Page 20 EVAL-ADP5020 Motherboard Layout Figure 32. Top Layer Figure 34. Inner Layer 2 Figure 33. Inner Layer 1 Figure 35. Bottom Layer Rev. 0 | Page 20 of 24...
-
Page 21: Ordering Information
Resistor, 10 Ω, 1%, 0403 Panasonic ERJ-3EKF10 Resistor, 49.9 Ω, 1%, 0404 Panasonic ERJ-2RKF49.9 ADP5020, 20-Lead LFCSP, 4 mm × 4 mm Analog Devices, Inc. ADP5020 Header 0.100, Double-Row 10 Pins J5, J6 SAMTEC SSW-110-03-G-D Header 0.100, Single, STR, 2 Pins LK10, LK12, LK13, Sullins Electronics, Inc./3M... -
Page 22: Ordering Guide
EVAL-ADP5020 Reference Description Designator Manufacturer/Vendor Part Number IC LDO Regulator, 500 mA, 8-Lead MSOP U5, U6, U7 Analog Devices ADP1715/16 Crystal 24 MHz CTS Corporation CTX651CT MOSFET N-Channel, SOT23 Q3, Q4, Q5, Q6, Q7 Fairchild FDN335N USB Connector USB Mini B, 5p... - Page 23 EVAL-ADP5020 NOTES Rev. 0 | Page 23 of 24...
