LEDS:

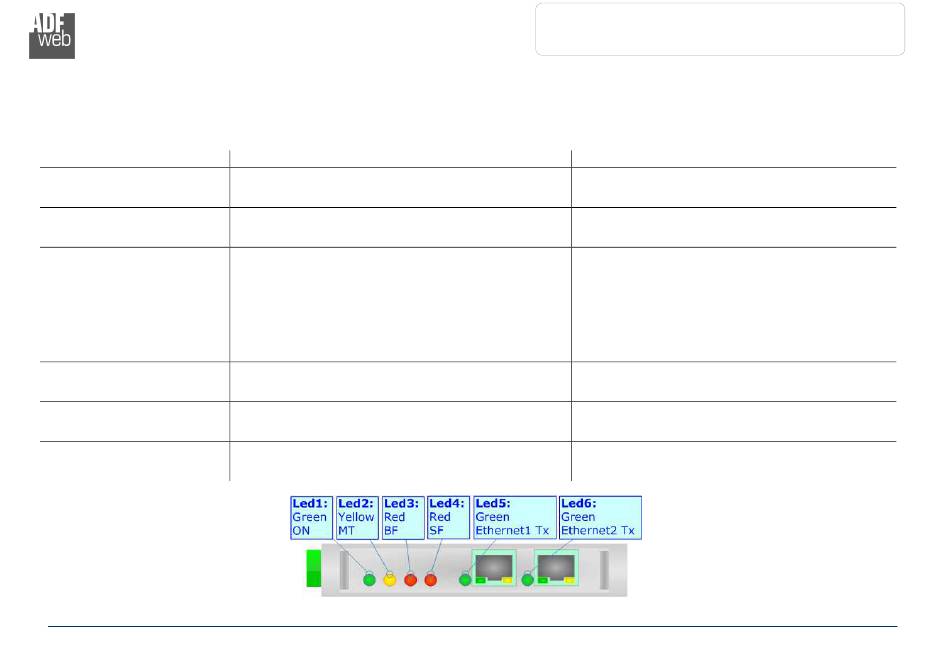

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: MT [maintenance display]
(yellow)
3: BF [bus fault] (red)
4: SF [group error] (red)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
ON: Maintenance problem is present
OFF: No maintenance problems are present
ON: The Ethernet connection is defective; the IP
address exists several times in the network; the own
NameOfStation exists several times in the network; no
IP address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks when Ethernet frames are transmitted
Blinks when Ethernet frames are transmitted
User Manual PROFINET / Modbus TCP Master
Document code: MN67611_ENG Revision 1.001
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Page 9 of 29
