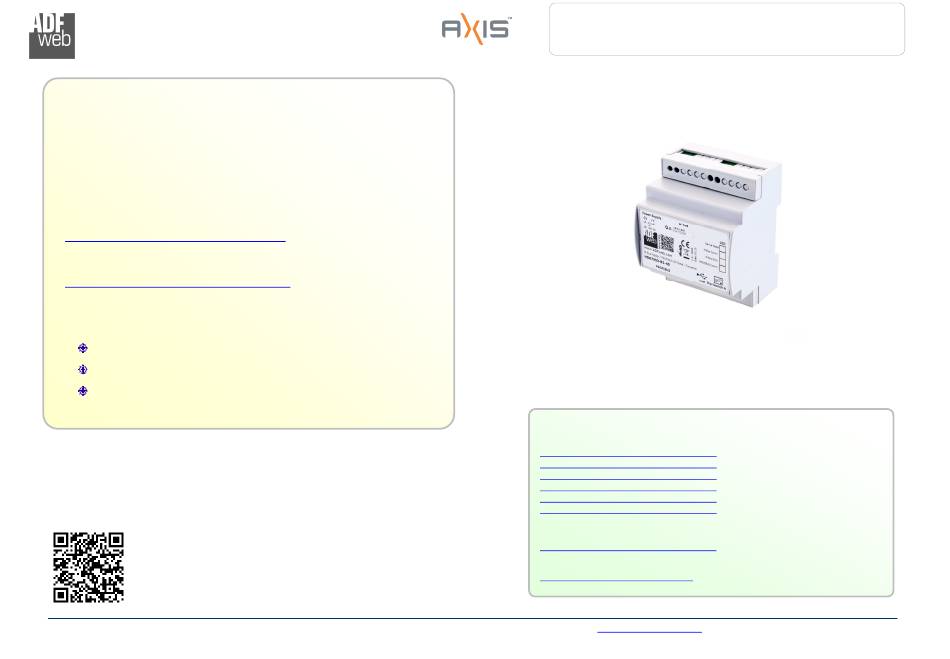

Industrial Electronic Devices
User Manual
Revision 1.000
English
DMX / PROFINET - Converter
(Order Code: HD67614-B2)
for Website information:
www.adfweb.com?Product=HD67614
for Price information:
www.adfweb.com?Price=HD67614-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual DMX / PROFINET
Document code: MN67614_ENG
For others DMX products, see also the following links:
Converter DMX to
www.adfweb.com?Product=HD67670
www.adfweb.com?Product=HD67821
www.adfweb.com?Product=HD67039
www.adfweb.com?Product=HD67588
www.adfweb.com?Product=HD67509
www.adfweb.com?Product=HD67040
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Revision 1.000
Pagina 1 di 22
(BACnet Slave)
(KNX)
(Ethernet)
(EtherNet/IP)
(Modbus TCP Slave)
(SNMP)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web AXIS HD67614-B2
Summary of Contents for ADF Web AXIS HD67614-B2
- Page 1 User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 1 di 22 Industrial Electronic Devices User Manual Revision 1.000 English DMX / PROFINET - Converter (Order Code: HD67614-B2) for Website information: www.adfweb.com?Product=HD67614 for Price information: www.adfweb.com?Price=HD67614-B2 Benefits and Main Features: Very easy to configure Electrical isolation Temperature range: -40°C/85°C (-40°F/185°F)
-
Page 2: Table Of Contents
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 2 di 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 3 di 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 4 di 22 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 5 di 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67614-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 6 di 22 Industrial Electronic Devices CHARACTERISTICS: The HD67614 is a DMX / PROFINET Converter. It has the following characteristics: Up to 512 bytes on DMX side; Triple isolation between Ethernet - Power Supply, Ethernet – Serial, Power Supply - Serial. Mountable on 35mm Rail DIN;... -
Page 7: Power Supply
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 7 di 22 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:... -
Page 8: Function Modes
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 8 di 22 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 9 di 22 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Rs485
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 10 di 22 Industrial Electronic Devices RS485: For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;... -
Page 11: Ethernet
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 11 di 22 Industrial Electronic Devices ETHERNET: The Ethernet port is used for PROFINET communication and for programming the device. The Ethernet connection must be made using Connector2 of HD67614-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 12: Use Of Compositor Sw67614
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 12 di 22 Industrial Electronic Devices USE OF COMPOSITOR SW67614: To configure the Converter, use the available software that runs with Windows called SW67614. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Project / Open Project
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 13 di 22 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “DMX / PROFINET - Converter”... -
Page 14: Software Options
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 14 di 22 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 15: Set Communication
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 15 di 22 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of the converter. By Pressing the “Set Communication” button from the main window for SW67614 (Fig. 2) the window “Set Communication”... -
Page 16: Dmx Default Value
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 16 di 22 Industrial Electronic Devices DMX DEFAULT VALUE: By pressing the “DMX Default Value” button from the main window for SW67614 (Fig. 2) the “DMX Default Value” window appears (Fig. 4). In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON. -
Page 17: Update Device
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 17 di 22 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 18 User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 18 di 22 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 19: Mechanical Dimensions
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 19 di 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67614-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 20: Ordering Informations
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 20 di 22 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67614 – B 2 Connectors Type 2: Fixed 5mm Screw Terminal Enclosure Type B: 4M, 35mm DIN Rail mounting Device Family... -
Page 21: Disclaimer
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 21 di 22 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 22: Warranties And Technical Support
User Manual DMX / PROFINET Document code: MN67614_ENG Revision 1.000 Pagina 22 di 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
