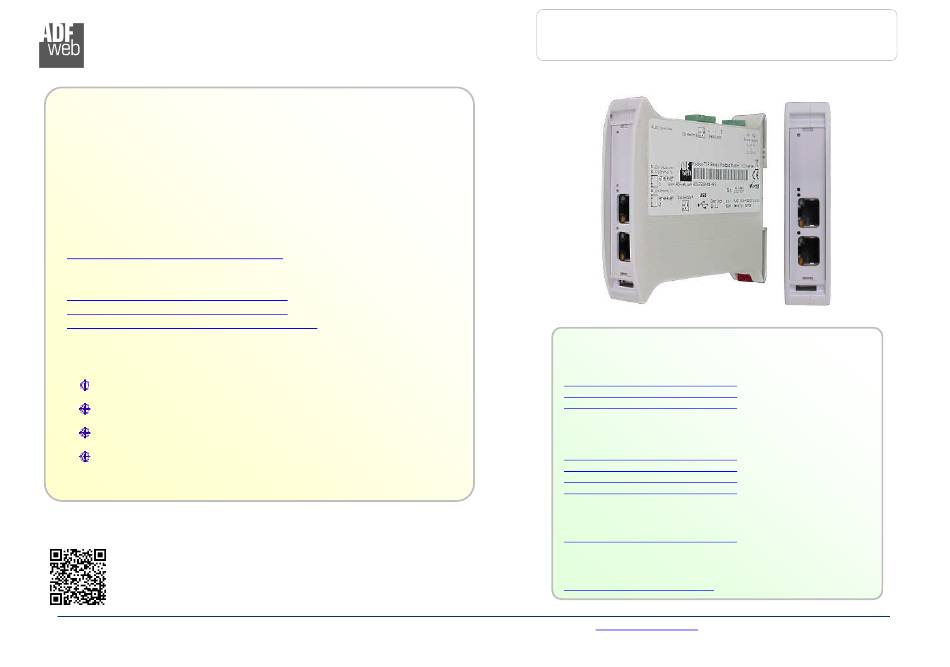

Industrial Electronic Devices

User Manual

Revision 1.200

English

CAN / Ethernet - Converter

(Order Code: HD67644-A1, HD67644-B2, HD67644-WiFi-B2)

For Website information:

www.adfweb.com?Product=HD67644

For Price information:

www.adfweb.com?Price=HD67644-A1

www.adfweb.com?Price=HD67644-B2

www.adfweb.com?Price=HD67644-WiFi-B2

Benefits and Main Features:

Very easy to configure

35mm Rail Din mount

Wide supply input range

Temperature range:

-40°C / 85°C (-40°F / 185°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual CAN /Ethernet - Converter

Document code: MN67644_ENG

Revision 1.200

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67644-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67644-A1

Page 1 Document code: MN67644_ENG Revision 1.200 Page 1 of 41 Industrial Electronic Devices User Manual Revision 1.200 English CAN / Ethernet - Converter (Order Code: HD67644-A1, HD67644-B2, HD67644-WiFi-B2) For Website information: www.adfweb.com?Product=HD67644 For Price information: www.adfweb.com?Price=HD67644-A1 www.adfweb.com?Price=HD67644-B2 www.adfweb.com?Price=HD67644-WiFi-B2 For other Gateways / Bridges:...
Page 2: Table Of Contents
Click on the proper CHARACTERISTICS “Document Code” and download the updates. CONFIGURATION POWER SUPPLY FUNCTIONS MODE LEDS REVISION LIST: ETHERNET (for HD67644-A1/B2) WI-FI (for HD67644-WiFi-B2) Revision Date Author Chapter Description 1.000 04/11/2013...
Page 3: Security Alert
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 3 of 41 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 4 of 41 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 5 of 41 Industrial Electronic Devices ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6: Connection Scheme
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 6 of 41 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67644-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 7 of 41 Industrial Electronic Devices Figure 1b: Connection scheme for HD67644-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 8 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 8 of 41 Industrial Electronic Devices Figure 1c: Connection scheme for HD67644-WiFi-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 9: Characteristics
CHARACTERISTICS: The “HD67644-A1/B2” and the “HD67644-WiFi-B2” is a device used to interface CAN devices with Ethernet devices. This converter can be completely transparent at the CAN frame (so it allows to extend the CAN networks through Ethernet) or can allow the interface between CAN devices and Ethernet devices and vice versa, through a very simple Ethernet protocol.
Page 10: Power Supply
The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device W/VA HD67644-A1/B2 HD67644-WiFi-B2 Warning: Not reverse the polarity power HD67644-B2 HD67644-A1 HD67644-WiFi-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com...
Page 11: Functions Mode
FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: HD67644-A1/B2: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
Page 12: Leds
Revision 1.200 Page 12 of 41 Industrial Electronic Devices LEDS (HD67644-A1/B2): The devices has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode...
Page 13 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 13 of 41 Industrial Electronic Devices LEDS (HD67644-WiFi-B2): The devices has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 14: Wi-Fi (For Hd67644-Wifi-B2)
ETHERNET: The Ethernet connection must be made using Connector5 of HD67644-A1/B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to a Hub/Switch the use of a straight cable is recommended.
Page 15 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 15 of 41 Industrial Electronic Devices CAN: For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B/C’ is at ON position. ADFweb.com Srl –...
Page 16 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 16 of 41 Industrial Electronic Devices Cable characteristics: DC parameter: Impedance Ohm/m AC parameters: Impedance Ohm/m Delay 5 ns/m Length Baud Rate [bps] Length MAX [m] 10 K 5000 20 K 2500...
Page 17: Use Of Compositor Sw67644
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 17 of 41 Industrial Electronic Devices USE OF COMPOSITOR SW67644: To configure the Converter, use the available software that runs with Windows called SW67644. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 18 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 18 of 41 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “Ethernet / CAN - Converter”...
Page 19: Software Options
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 19 of 41 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 20 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 20 of 41 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 21: Set Communication
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 21 of 41 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67644 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: Select Device...
Page 22 Revision 1.200 Page 22 of 41 Industrial Electronic Devices ELECT EVICE This section is used to select the converter in use: HD67644-A1 / B2 HD67644-WiFi-B2 Figure 3b: “Set Communication  Select Device” window ORKING This section is used to define the working mode of the converter. It is possible to...
Page 23 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 23 of 41 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address”...
Page 24 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 24 of 41 Industrial Electronic Devices In the field “Secure Type” the type of security protocol used by the Wi-Fi network is defined; If the field “Enable DHCP” is checked, the converter acts as DHCP Server for the Clients connected. If the option is enabled, in the fields “DHCP First IP Address”...
Page 25: Receive Cob
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 25 of 41 Industrial Electronic Devices RECEIVE COB: If the “Server Mode” is selected, by pressing the “Receive COB” button from the main window for SW67644 (Fig. 2) the window “Receive CAN Frame”...
Page 26: Update Device Via Udp
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 26 of 41 Industrial Electronic Devices UPDATE DEVICE VIA UDP: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
Page 27 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 27 of 41 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67644 device.
Page 28: Ethernet Protocol With Transparent Mode
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 28 of 41 Industrial Electronic Devices ETHERNET PROTOCOL WITH TRANSPARENT MODE “E ” THERNET FRAME TO BE SENT TO OUR ATEWAY WITH NABLE ULTIFRAME IN THERNET DISABLED The Bytes that compose the frame are these: Byte Number Description 1 ÷...
Page 29 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 29 of 41 Industrial Electronic Devices “E ” THERNET FRAME TO BE SENT TO OUR ATEWAY WITH NABLE ULTIFRAME IN THERNET ENABLED The Bytes that compose the frame are these: Byte Number Description Number of CAN frames in Ethernet frame...
Page 30 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 30 of 41 Industrial Electronic Devices “E ” THERNET FRAME THAT CONTAIN FRAMES ARRIVED IN THE ATEWAY WITH NABLE ULTIFRAME IN THERNET DISABLED The Bytes that compose the frame are these: Byte Number Description 1÷4...
Page 31 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 31 of 41 Industrial Electronic Devices “E ” THERNET FRAME THAT CONTAIN FRAMES ARRIVED IN THE ATEWAY WITH NABLE ULTIFRAME IN THERNET ENABLED The Bytes that compose the frame are these: Byte Number Description Number of CAN frames in Ethernet frame...
Page 32 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 32 of 41 Industrial Electronic Devices (RTR) F EMOTE RANSMIT EQUEST RAME It is possible to send or receive Remote Frames. For doing that it is necessary to use the fifth bit of the field “Number of Byte to send” if you want to send a CAN frame to the network from Ethernet, and also in the Ethernet frame sent by the gateway when a CAN frame arrives the field “Number of Data Byte”...
Page 33: Ethernet Protocol With Server Mode
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 33 of 41 Industrial Electronic Devices ETHERNET PROTOCOL WITH SERVER MODE This protocol is able to read and write frames in the CAN net. Write Frames The transmission is very simple; it requires only what are the packets to send. In a single request it is possible to write at maximum 19 frames in the CAN net.
Page 34 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 34 of 41 Industrial Electronic Devices So the string of hexadecimal numbers is: REQ:[02][03][00][00][01][8A][08][01][02][03][04][05][06][07][08][80][04][13][CB][06][11][22][33][44][55][66][00][00][00][00][00][0 1][08][12][34][56][78][9A][9B][9C][9D] RES:[00] ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 35 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 35 of 41 Industrial Electronic Devices Read Frames For reading Data it is necessary to have a map in the RAM memory that contains the Data that passing in the bus. This map is implemented in the “Compositor SW67644”...
Page 36: Mechanical Dimensions
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 36 of 41 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8a: Mechanical dimensions scheme for HD67644-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 37 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 37 of 41 Industrial Electronic Devices Figure 8b: Mechanical dimensions scheme for HD67644-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 38 User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 38 of 41 Industrial Electronic Devices Figure 8c: Mechanical dimensions scheme for HD67644-WiFi-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 39: Order Code
WiFi: Wi-Fi Device Family HD67644: Ethernet / CAN - Converter Order Code: HD67644-A1 Ethernet / CAN - Converter ( Housing type: A, Terminal Blocks Connectors ) Order Code: HD67644-B2 Ethernet / CAN - Converter ( Housing type: B, Terminal Blocks Connectors )
Page 40: Disclaimer
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 40 of 41 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 41: Warranties And Technical Support
User Manual CAN /Ethernet - Converter Document code: MN67644_ENG Revision 1.200 Page 41 of 41 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
