In the field "Max Error" insert the number of consecutive errors that the Master waits before discard the row from the cycle of
requests;
By checking the field "On
using the "Poll Time". This feature is used only on "Modbus Write" section;
In the field "Position" is possible to select the position where take/save the data from PROFINET array;
The field "Start Bit" is used for select from which Bit save the data (to use only when the "Type" is 'Coil Status' or 'Input Status' and
the "NPoint" is more than one);
In the field "Mnemonic" is possible to insert a description of the data inserted in the row.
Note:
If you want that the Modbus register/status is written only when data are changed, the "Poll Time" of the row must be 0.
Note:
If the field "On change" is checked and the "Poll Time" is different from 0, the converter sends the Write request cyclically and also
when the data is changed.

XML FILE:

By Pressing the "PROFINET XML" button from the main window for SW67611 (Fig. 2) it is possible to generate the xml file to be imported
into the master PROFINET.

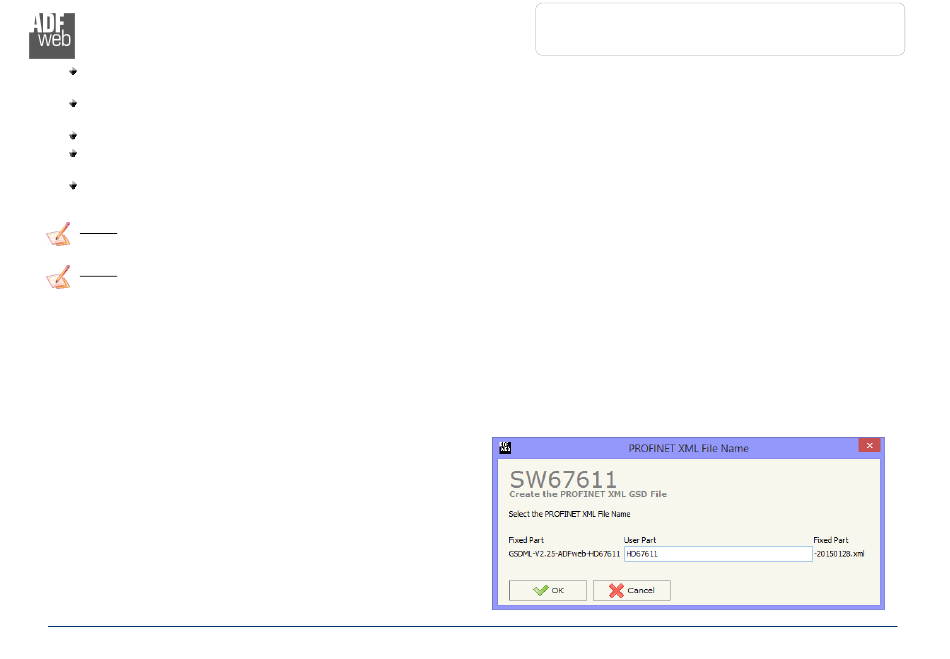

Figure 5: "PROFINET XML File Name" window
