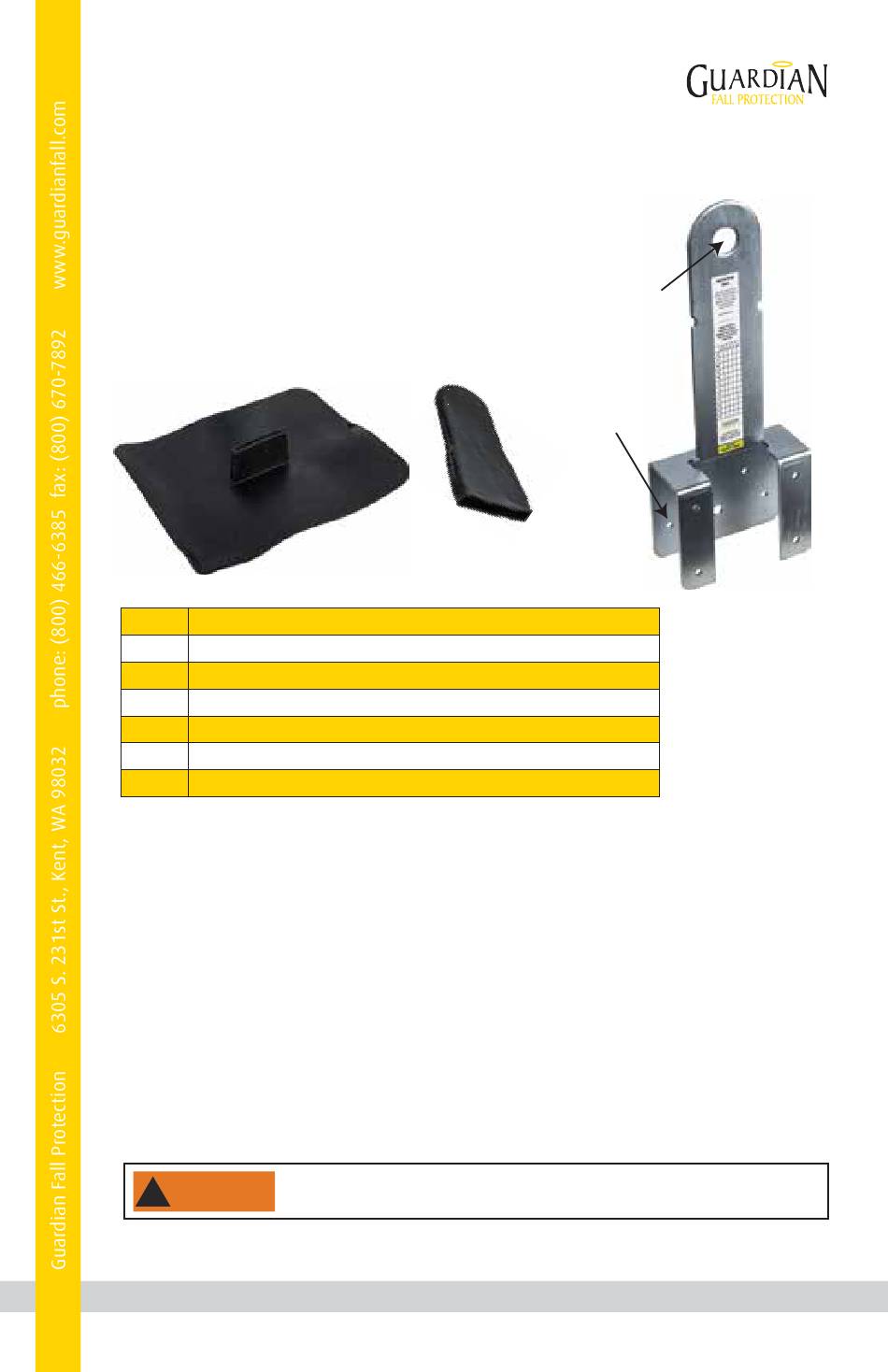

Components and Specifications

Materials:
Truss Boss Anchor: Zinc-plated steel.
Flashing: PVC or steel.
Cap: PVC.
Fasteners (12): Galvanized steel.
Flashing
Part #
00432
00420 Truss Boss Anchor Kit (Includes Weather Proof Cap & Flashing)
00422
00440
00441 Tile Truss Boss Anchor Kit - Terracotta
00442

Installation and Use

Prior to installation, plan your system:
1. Ensure all PFAS equipment is selected and deemed compatible with Truss Boss Anchor by a Competent
Person.
2. Select mounting location for Truss Boss Anchor. Selected mounting location must be compatible roof truss,
rafter, or other structural member, and must withstand minimum loads as specified by this instruction manual.
3. Make considerations for eliminating or minimizing swing fall hazards.
4. Not for use in combination with horizontal lifelines (HLLs).
5. Truss Boss Anchor may be installed in either upright or inverted orientations.
! WARNING
Anchor Cap
Description
Truss Boss Anchor
Truss Boss Anchor Cap
Tile Truss Boss Anchor Kit - Gray
Tile Truss Boss Anchor Kit - Black
Prior to installation, refer to anchorage positioning chart (pg. 3)
to ensure installation location will satisfy intended work applications.
Connection
Point
Fastener Installation
Location (8 total)
