Product Name: Rope Grab
Part #: 01500; 01503; 01505; 01506; 01507; 01508; 01509; 01511
Instruction Manual
Do not throw away these instructions!
Read and understand these instructions before using equipment!
1
1
1
2
2 - 3
3
4 - 5
5
5
6
6 - 7
7
Advertisement
Table of Contents
Related Manuals for Guardian Fall Protection 01500
Summary of Contents for Guardian Fall Protection 01500
- Page 1 Product Name: Rope Grab Part #: 01500; 01503; 01505; 01506; 01507; 01508; 01509; 01511 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations...
- Page 2 Introduction Thank you for purchasing a Guardian Fall Protection Rope Grab. This manual must be User Information read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency.
- Page 3 Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Rope Grabs may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications.

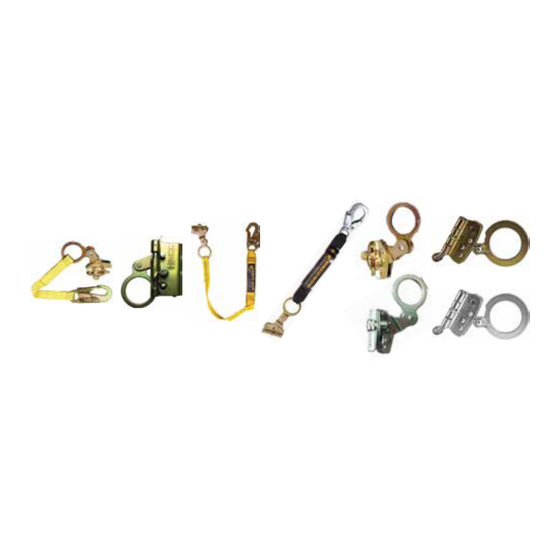

- Page 4 Components and Specifications Materials: galvanized steel or stainless steel, nylon, and polyester. Part # Description 01500 Trailing Rope Grab w/18” Extension Lanyard 01503 Trailing Rope Grab w/3’ Shock Absorbing Extension Lanyard 01505 Trailing Rope Grab (No Extension)
- Page 5 01503 01500 01506 01505 01511 01507 01508 01509 Installation and Use Prior to installation: 1. Robe Grab for use in combination with compatible vertical lifeline (VLL). Ensure VLL on which Rope Grab is to be installed is compliant with all applicable OSHA and ANSI regulations.
- Page 6 3. Depending on Rope Grab part #, attach complete and compatible PFAS to Rope Grab connection point, or attach extension lanyard/shock absorber to applicable harness D-ring. Always ensure maximum distance of lanyard between Rope Grab and applicable harness D-ring does not exceed 36”. 4.
- Page 7 Inspection Log User must inspect prior to EACH use. Competent Person other than user must complete formal inspection at least every 12 months. Competent Person to inspect and initial. Date of First Use: __________________. Product lifetime is indefinite, as long as product passes all inspection requirements.
- Page 8 Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be self-locking and self-closing, and must never be connected to each other.
