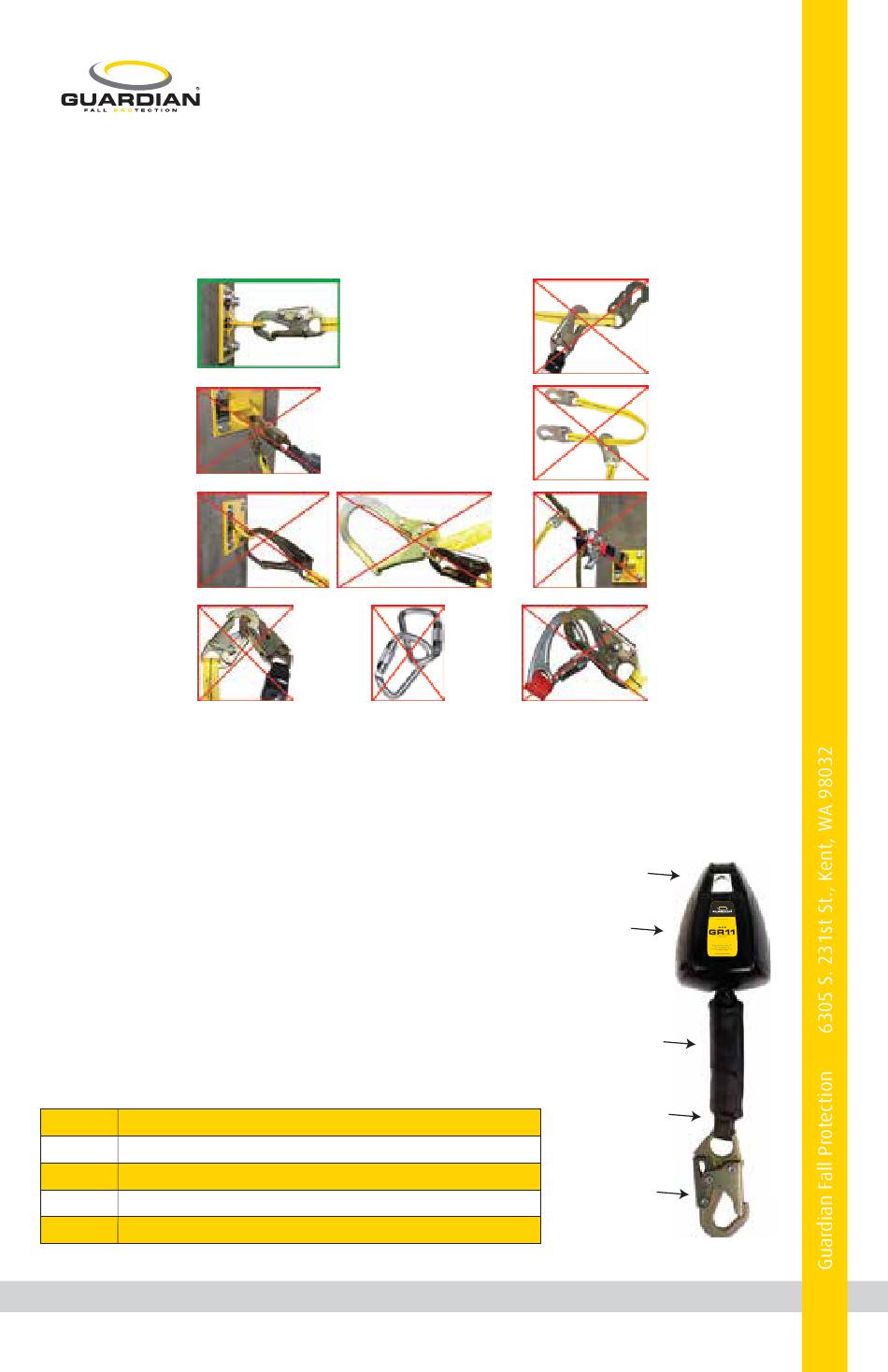

Compatibility: When making connections with GR11 Web SRL, eliminate all possibility of roll-out. Roll-out
occurs when interference between a hook and the attachment point causes the hook gate to unintentionally
open and release. All connections must be selected and deemed compatible with GR11 Web SRL by a
Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of
3,600 lbs. See the following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
Two connectors
to same
D-ring. NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.

Components and Specifications

Materials: stainless steel, glass-filled nylon, HMPE, and galvanized steel or aluminum.
Average arrest force: 1,350 lbs.
Maximum arrest force:1,800 lbs.
Anchor point at/above D-ring, 130-310 lb. worker capacity:
- Class A SRL.
- Maximum deceleration distance: 24".
- Minimum fall clearance: 5'6".
Anchor point at/above D-ring, 311-420 lb. worker capacity:
- Maximum deceleration distance: 84".
- Minimum fall clearance: 10'6".
Anchor point below D-ring, max. 2', 130-310 lb. worker capacity:
- Maximum deceleration distance: 59".
- Minimum fall clearance: 10'5".
Part #
32080 GR11 Web 11' Single Leg SRL w/Steel Snap Hook
GR11 Web 11' Single Leg SRL w/Aluminum Snap Hook
32082
32083 GR11 Web 11' Single Leg SRL w/Aluminum Rebar Hook
32084 GR11 Web 11' Single Leg SRL w/Swivel Steel Snap Hook
3
Description
Connector
to integral
lanyard.
NO.
Connector
directly to
webbing.
NO.
Connector
directly to
horizontal
lifeline.
Connection
Point
Housing
Shock Absorber
w/ Cover
Lifeline
(13/16" width)
Connector
NO.
