Page 1: Table Of Contents
Product Name: Rope Positioning Device Part #: 01520; 01521 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations Components and Specifications Installation and Use... -
Page 2: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection Rope Positioning Device. This User Information manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. Date of First Use: This and any other included instructions Serial #:... -
Page 3: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Rope Positioning Device may be used in Personal Fall Arrest applications to support a MAXIMUM 1 Personal Fall Arrest System (PFAS). Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 4: Components And Specifications

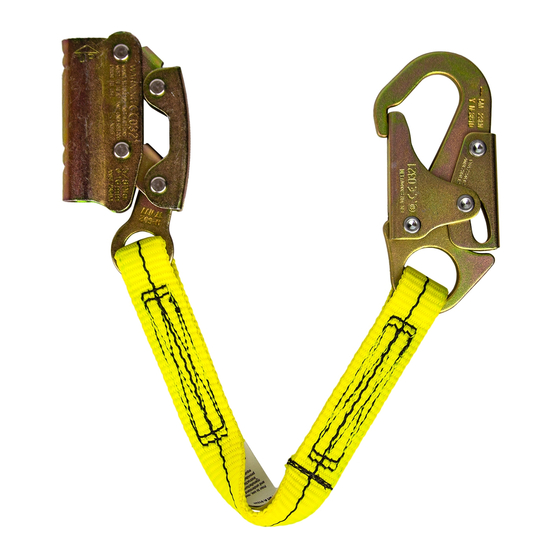

Components and Specifications Materials: galvanized steel and polyester. Part # Description 01520 Rope Positioning Device Assembly w/Snap Hook End. Length: 18”. 01521 Rope Positioning Device Assembly w/Shock Absorber & Snap Hook End. Length: 36”. Rope Positioning... -
Page 5: Installation And Use
5. For use in Fall Arrest applications, PFAS must include shock absorbing component: • For part # 01520, VLL must include integral shock absorber, or 01520 must be used in combination with Guardian Shock Absorber Extension part # 01205. Be aware that the use of the 01205 may increase maximum potential free fall. -
Page 6: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage If Rope Positioning Device fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Cleaning after use is important for maintaining the safety and longevity of Rope Positioning Device. Remove all dirt, corrosives, and contaminants from Rope Positioning Device before and after each use. -
Page 7: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 8: Labels
Labels 01520 and 01521: WARNING CE0321 5/8 Dia. ø MANUFACTURER’S INSTRUCTIONS 16mm MUST BE READ AND UNDERSTOOD ANSI Z359.1 PRIOR TO USE EN353-2 01520: Capacity range: 130-310 lbs. (including all clothing, tools, and equipment). Rope Materials: Positioning galvanized steel Device and polyester.
