Compatibility: When making connections with G-Bolt, eliminate all possibility of roll-out. Roll-out occurs
when interference between a hook and the attachment point causes the hook gate to unintentionally open
and release. All connections must be selected and deemed compatible with G-Bolt by a Competent Person.
All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs. See the

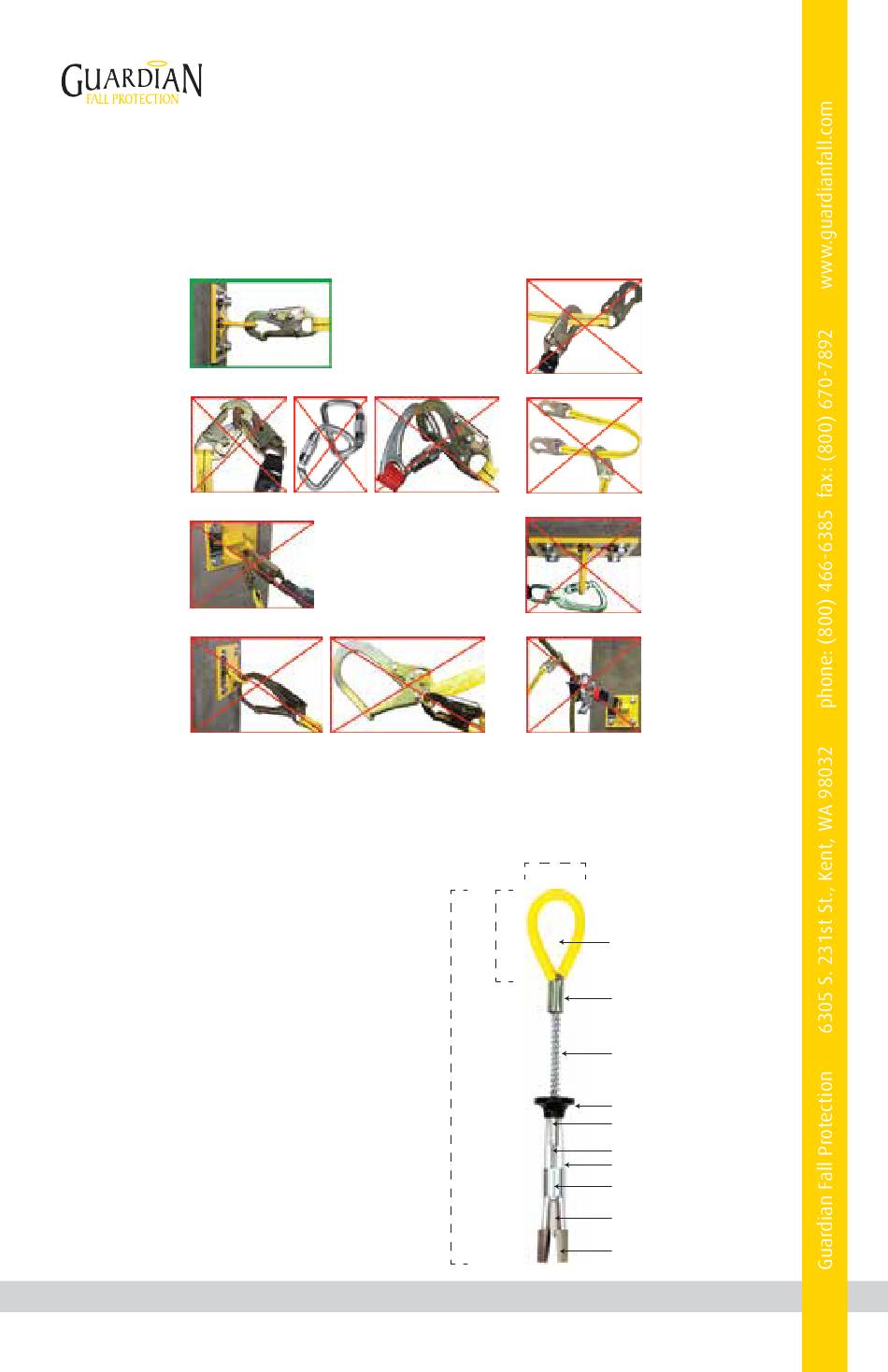

following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
NO.
D-ring.
Incompatible
or irregular
application,
which may
increase risk
NO.
of roll-out.

Components and Specifications

Type A anchorage connector.
Minimum permitted service temperature: -30° F.
5,000 lb. MBS (minimum breaking strength).
Materials: Aluminum, polyurethane, aircraft
cable, stainless steel, zinc-plated steel, and
zinc-plated copper.
3
2"
3"
11½"
Connector
to integral
lanyard.
NO.
Connector
directly to
webbing.
NO.
Application
that places
load on gate.
NO.
Connector
directly to
horizontal
lifeline. NO.
Connection point
Swage
Spring
Trigger
Stop sleeve
Main cable
Heavy-duty return wire
Cleaning bushing
End termination
Spoon
