Summary of Contents for Guardian Fall Protection 00484
-
Page 1: Table Of Contents

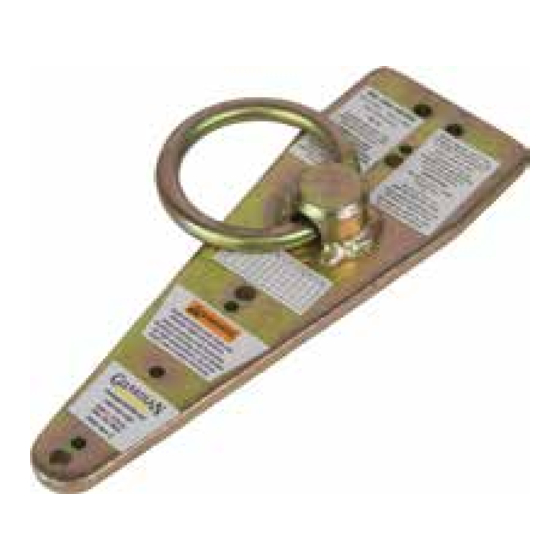

Product Name: Bull Ring Anchor Part #: 00484; 00484-SS Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations 2 - 3 Components and Specifications... -
Page 2: Introduction
Introduction Thank you for purchasing a Guardian Fall User Information Protection Bull Ring Anchor. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency. -
Page 3: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Bull Ring Anchor may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. -
Page 4: Components And Specifications
(6) 16d nails hex head lag screws Minimum permitted service temperature: -30° F. 5,000 lb. MBS (minimum breaking strength). 9” Materials: zinc-plated steel (00484) or stainless steel (00484-SS). 00484-SS: (5) 1/4” x 3” stainless steel hex head lag screws... -
Page 5: Installation And Use
Qualified Person. 2. Make considerations for eliminating or minimizing all swing fall hazards. 3. Ensure all fasteners are those supplied by Guardian Fall Protection, or are deemed compatible with Bull Ring Anchor by a Competent Person. 4. The Bull Ring Anchor is rated for loading in any direction provided it is installed as prescribed. Suitable for use in HLL applications;... -
Page 6: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage If Bull Ring Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Field serviceability testing is not required, and should not be done by the end user. -
Page 7: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 8: Labels
Labels BULL RING ANCHOR Worker capacity: 130-420 lbs. Material: Zinc-plated steel Part #: 00484 Made in China Type A anchorage connector. DOM: Serial #: 5,000 lb. MBS (minimum breaking strength). Minimum service temp.: -30° F. OSHA 1926 Sub M, OSHA 1910, MAXIMUM 1 connection.
