Page 1: Table Of Contents

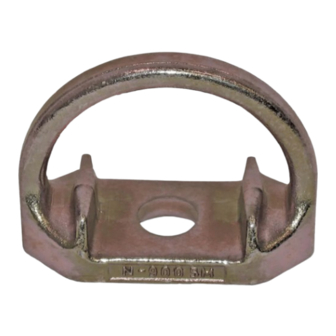

Product Name: D-Bolt Anchor Part #: 00370; 00371; 00372; 00374 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations 3 - 4 Components and Specifications... -
Page 3: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection D-Bolt Anchor. This manual User Information must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. Date of First Use: This and any other included instructions Serial #:... -
Page 4: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: D-Bolt Anchor may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. -
Page 5: Limitations
Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or any obstruction. When calculating fall clearance, account for a MINIMUM 2’ safety factor, free fall, deceleration distance, harness stretch, swing fall, and all other applicable factors. Diagram shown is an example fall clearance calculation ONLY. - Page 6 Compatibility: When making connections with D-Bolt Anchor, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with D-Bolt Anchor by a Competent Person.
-
Page 7: Components And Specifications
Prior to installation, plan your system: MINIMUM substrate thickness requirements: Fastener requirements (per part #): • Wood: 6”. • 00370: 13 TPI bolt. Torque to 65-75 ft-lbs. • Metal: ¼”. • 00371: 11 TPI bolt. Torque to 145-155 ft-lbs. • Concrete: 6”, 4,000 psi. - Page 8 1. Ensure all PFAS equipment is selected and deemed compatible with D-Bolt Anchor by Competent Person. 2. Make considerations for eliminating or minimizing all swing fall hazards. 3. Ensure selected substrate is compatible with D-Bolt Anchor, and is free of any debris, rust, cracking, deformation, and hazardous materials. Substrate must extend entire length of D-Bolt Anchor AND hook of connecting device.
- Page 9 Metal: 1. Metal substrate must be minimum ¼” thick. 2. Pre-drill bolt installation hole. Hole must be minimum 3” from any edge or corner. Hole diameter must be 1/16” greater than applicable Nut snug against bolt diameter. washer. Washer located immediately under nut, and 3.
-
Page 10: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage If D-Bolt Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Field serviceability testing is not required, and should not be done by the end user. -
Page 11: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 12: Labels
Labels WARNING Maximum 1 connection. Avoid contact with hazards, 1-800-466-6385 including, but not limited to, www.guardianfall.com heat, chemicals, electricity, D-Bolt Forged and sharp or abrasive Anchorage Connector edges and surfaces. INSPECTION GRID Part #: User must inspect prior to EACH use. Competent Person must complete Date of Manufacture: formal inspection every 12 months.
