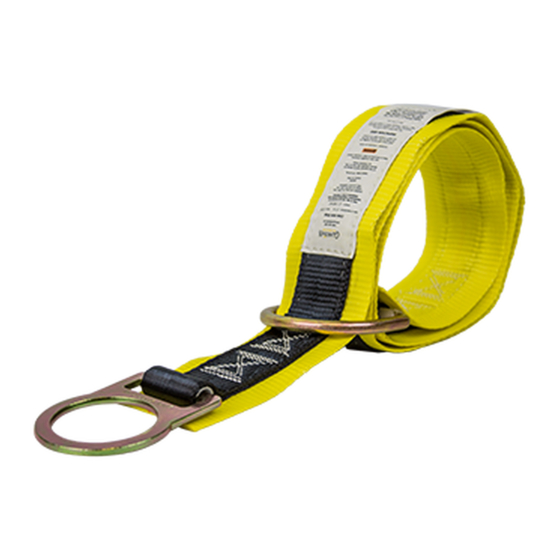

Product Name: Cross Arm Strap
Instruction Manual
Part #: 10785; 10786; 10787; 10788; 10790; 10791; 10792; 10793; 10794; 10795; 10797; 01641
Do not throw away these instructions!
Read and understand these instructions before using equipment!
1
1
2
2
3 - 4
5
6
7
7
7
8
9 - 10
Advertisement
Table of Contents
Related Manuals for Guardian Fall Protection Cross Arm Strap
Summary of Contents for Guardian Fall Protection Cross Arm Strap
-
Page 1: Table Of Contents
Product Name: Cross Arm Strap Instruction Manual Part #: 10785; 10786; 10787; 10788; 10790; 10791; 10792; 10793; 10794; 10795; 10797; 01641 Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications... -
Page 3: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection Cross Arm Strap. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. -
Page 4: Worker Classifications
WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Cross Arm Strap may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if used in combination with equipment explicitly certified for such use. -
Page 5: Limitations
Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or any obstruction. When calculating fall clearance, account for a MINIMUM 2’ safety factor, free fall, deceleration distance, harness stretch, swing fall, and all other applicable factors. Diagram shown is an example fall clearance calculation ONLY. - Page 6 All connections must be selected and deemed compatible with Cross Arm Strap by a Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs.
-
Page 7: Components And Specifications
Premium Cross Arm Strap w/ Large & Small D-rings 10794 30’ Premium Cross Arm Strap w/ Large & Small D-rings 10795 3’ Surfacetech Web Premium Cross Arm Strap w/Large & Small D-Rings 10797 6’ Surfacetech Web Premium Cross Arm Strap w/Large & Small D-Rings 01641 17”... -
Page 8: Installation And Use
Black webbing must face out. 3. To install, pass Cross Arm Strap small D-ring through large D-ring or web loop, as applicable, and cinch down against structural anchor. 4. Cross Arm Strap may be looped around structural anchor multiple times to reduce excess length. -
Page 9: Maintenance, Cleaning, And Storage
Cross Arm Strap before and after each use. If Cross Arm Strap cannot be cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean Cross Arm Strap with corrosive substances. -
Page 10: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 11: Labels
Type A anchorage connector. 5,000 lb. MBS (minimum breaking strength). Minimum service temperature: -30° F. All PFAS equipment must be selected and deemed compatible with Cross Arm Strap by a Competent Person. Only make compatible connections. WARNING Refer to instructions for proper connection methods. - Page 12 Labels Inspection Grid Type A anchorage connector. 1-800-466-6385 5,000 lb. MBS www.guardianfall.com (minimum breaking strength). Cross Arm Strap Minimum service Part #: 01641 temperature: -30° F. DOM: All PFAS equipment must be selected and deemed compatible Serial #: with Scaffold Choker by Competent Person.
