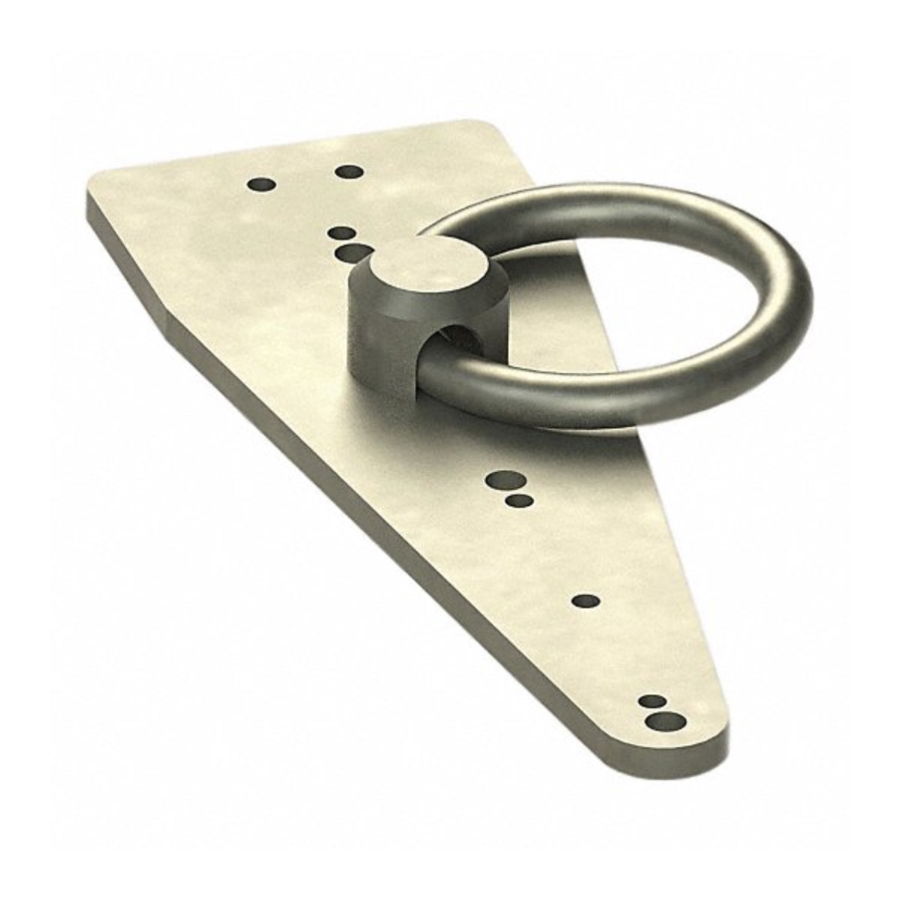

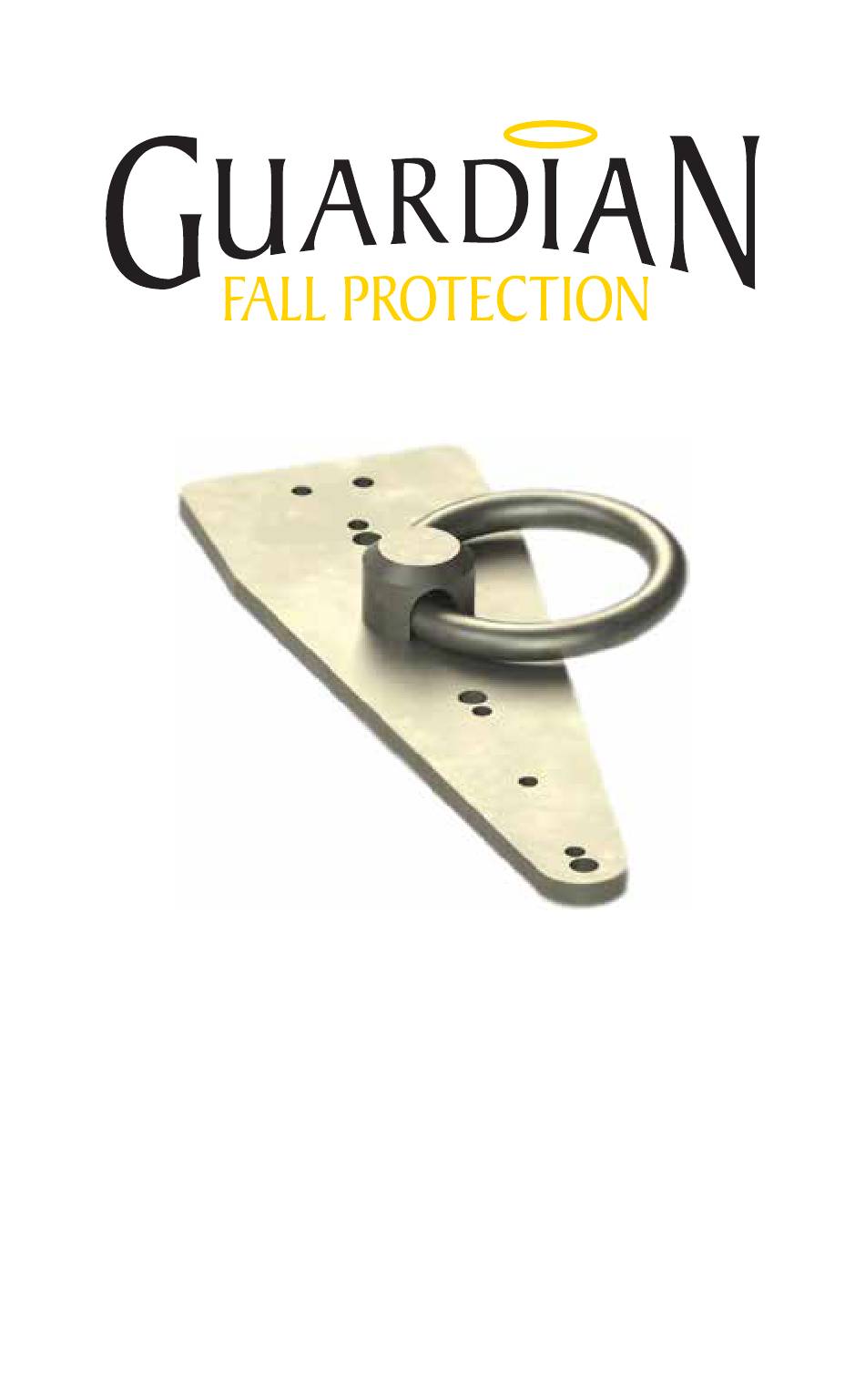

- Page 1 Product Name: Bull Ring Anchor Part #: 00484 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
This and any other included instructions must be made available to the user of the equipment. The user must understand how to safely and effectively use the Bull Ring Anchor, and all fall safety equipment used in combination with the Bull Ring Anchor. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Remove all dirt, corrosives, and contaminants from Bull Ring Anchors before and after each use. If Bull Ring Anchor cannot be cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean Bull Ring Anchors with corrosive substances. -
Page 8: Product Specific Applications
WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Bull Ring Anchor may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 9: Limitations
Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or an obstruction. When calculating fall clearance, account for a MINIMUM 3’ safety factor, deceleration distance, user height, length of lanyard/SRL, and all other applicable factors. - Page 10 All connections must be selected and deemed compatible with Bull Ring Anchor by a Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs. See the following for...
- Page 11 Correct Anchorage Positioning: This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart. Anchor Distance Working Distance Working Angle From Along Roof Edge From Leading Edge (Y) (Either Direction) (X) Perpendicular (Ø) 6’...
-
Page 12: Components And Specifications
Components and Specifications Materials: galvanized steel. Nail installation holes Screw installation holes (6) 16d, 3” length 8 gauge nails (3) 1/4” x 3” zinc-plated steel hex head lag screws... -
Page 13: Installation And Use
4. Bull Ring Anchor is suitable for multiple installation applications. New fasteners MUST be used for each new installation application. 5. Prior to each new installation, ensure Bull Ring Anchor has not been damaged or warped by previous use or removal from substrate. If any damage or defects are found, IMMEDIATELY remove Bull Ring Anchor from service. -
Page 14: Labels
Labels Worker capacity: 130-310 lbs. BULL RING ANCHOR (including all equipment), or up Part #: 00484 Made in China to 420 lbs. *see instructions. Anchor material: Steel Date of Manufacture: All connections must be compatible with the Bull Ring Anchor, and selected by Compliant with OSHA 1926 a Competent Person. -
Page 15: Inspection Log
Date of First Use: __________________. Product lifetime is indefinite as long as it passes pre-use and Competent Person inspections. This inspection log must be specific to one Bull Ring Anchor. Separate inspection logs must be used for each Bull Ring Anchor. All inspection records must be made visible and available to all users at all times.
