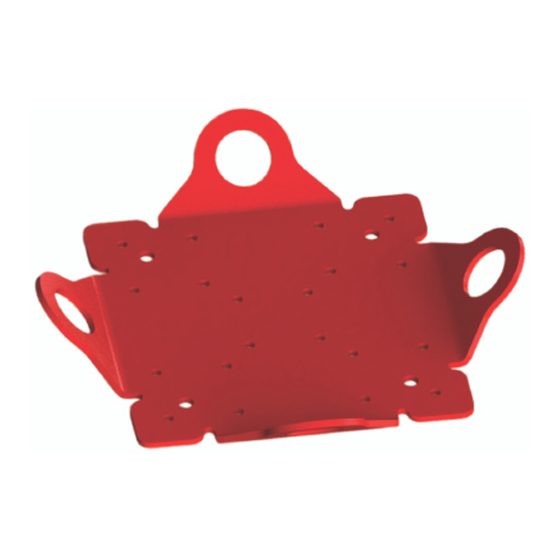

Product Name: 4-Way Plate Anchor
Part #: 00691
Instruction Manual
Do not throw away these instructions!
Read and understand these instructions before using equipment!
1
1
1
2
2-3
4
4-8
9
9
9
10
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 00691 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Guardian Fall Protection 00691

Summary of Contents for Guardian Fall Protection 00691

  • Page 1: Table Of Contents

    Product Name: 4-Way Plate Anchor Part #: 00691 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations Components and Specifications Installation and Use...

  • Page 2: Introduction

    Introduction Thank you for purchasing a Guardian Fall Protection 4-Way Plate Anchor. This manual User Information must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency.

  • Page 3: Product Specific Applications

    Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: 4-Way Plate Anchor may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications.
  • Page 4 Compatibility: When making connections with 4-Way Plate Anchor, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with 4-Way Plate Anchor by a Competent Person.

  • Page 5: Components And Specifications

    Components and Specifications Materials: Powder-coated steel. Connection Point (4) ½” Concrete (20) 73/200” (.365”) fastener installation wood/metal fastener locations installation locations Installation and Use MINIMUM substrate requirements: Wood: 5/8” CDX or better. Metal: 24 gauge. Concrete: 6”. Prior to installation, plan your system: 1.
  • Page 6 3. DO NOT apply torque to fasteners. 4. Guardian Fall Protection recommends all (20) fasteners be used for installation, however a MINIMUM 16 fasteners MUST be used. ONLY use fewer than 20 fasteners if valley exists in metal substrate that prevents all 20 fasteners from being fully embedded.
  • Page 7 Concrete Installation: 1. Use (4) ½” concrete fastener installation locations (see image on pg. 4). Guardian Fall Protection recommends using ½“ x 3½” Threaded ROD assemblies. 2. Follow manufacturer’s fastener instructions for limitations and installation procedure. 3. All fasteners MUST be embedded in substrate a MINIMUM of 3½”.
  • Page 8 HLLs MUST be used in combination with complete and compatible PFAS, and achieve a 2:1 safety factor. Please refer to Guardian Fall Protection’s Absorbinator instructions for complete details and regulations for Cable HLL applications, or contact Guardian for more information. HLL must possess integral shock absorbing functionality, or be used in combination with additional HLL shock absorber, such as the Absorbinator.

  • Page 10: Maintenance, Cleaning, And Storage

    Maintenance, Cleaning, and Storage If 4-Way Plate Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Cleaning after use is important for maintaining the safety and longevity of 4-Way Plate Anchor. Remove all dirt, corrosives, and contaminants from 4-Way Plate Anchor before and after each use.

  • Page 11: Safety Information

    Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment.

  • Page 12: Labels

    (Rev. C) 4-Way Plate Anchor Made in Date of Manufacture: China Part #: 00691 Only make compatible connections. Refer to instructions for Prior to use, read and understand all manufacturer’s instructions connection and installation specifications. provided with equipment. Compliant with OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, Avoid hazardous conditions including, but not limited to, flame, and ANSI A10.32-2012 regulations.
