Summary of Contents for Guardian Fall Protection 00342
-
Page 1: Table Of Contents

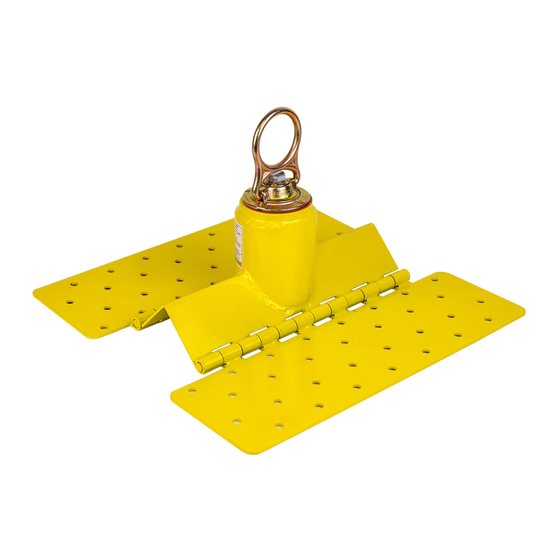

Product Name: Adjustable Skyhook Anchor Part #: 00342 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications 1 - 2 Limitations 2 - 3... -
Page 2: Introduction
Introduction Thank you for purchasing a Guardian Fall User Information Protection Adjustable Skyhook Anchor. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or Date of First Use: any applicable state agency. -
Page 3: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: Adjustable Skyhook Anchor may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. - Page 4 Compatibility: When making connections with Adjustable Skyhook Anchor, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with Adjustable Skyhook Anchor by a Competent Person.
-
Page 5: Components And Specifications
4. Adjustable Skyhook Anchors MUST be placed a MINIMUM 10’ from all leading edges of fall hazards. 5. Ensure all fasteners are those supplied by Guardian Fall Protection, or are deemed compatible by a Competent Person. All fastener installation holes MUST be filled. Installations must be done directly on substrate, and never through any intermediary substrates. -
Page 6: Maintenance, Cleaning, And Storage
6. Connect to Adjustable Skyhook Anchor with complete and compatible PFAS. 7. Adjustable Skyhook Anchor is rated for loading in any direction provided it is installed as prescribed. Suitable for use in HLL applications. Adjustable Skyhook Anchors must be properly flashed when used in permanent applications. It is the responsibility of the installer/roofer to properly flash this anchor. -
Page 7: Inspection Log
Inspection Log Date of First Use: __________________. Product lifetime is indefinite as long as it passes pre-use and Competent Person inspections. User must inspect prior to EACH use. Competent Person other than user must complete formal inspection at least every 12 months. Competent Person to inspect and initial. -
Page 8: Labels
ANSI Z359.18-2017* regulations. *Depending on application. Refer to instructions for Skyhook Anchor more details. Type A anchorage connector. 5,000 lb. MBS (minimum breaking strength). Part #: 00342 Capacity range: 130-420 lbs. (including all equipment) Minimum service temperature: -30° F. DOM: Only make compatible connections. Refer to instructions.
