- Page 1 Product Name: Rope Anchor Part #: 01300 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations Components and Specifications Installation and Use Maintenance, Cleaning, and Storage...
- Page 2 Introduction Thank you for purchasing a Guardian Fall Protection Rope Anchor. This manual must User Information be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. Date of First Use: Serial #: This and any other included instructions...
- Page 3 Restraint: Rope Anchor may be used in Restraint applications. Restraint systems prevent workers from reaching the leading edge of a fall hazard. Always account for fully deployed length of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
- Page 4 Incompatible Connector or irregular directly to application, horizontal which may lifeline. increase risk of roll-out. Two or more snap hooks or carabiners connected to each other. Components and Specifications Materials: aluminum. Hole #1 Hole #2 Hole #3 Hole #4 Hole #5 Hole #6 Installation and Use Prior to use, plan your system:...
- Page 5 Rope Threading #1: Front Back 1. With engravings facing away from user, thread rope end through hole #1, and pull rope through a total of 24”. PFAS Attachment Point. 2. Insert 24” rope end through hole #2 and pull through so there is no slack. 3.
- Page 6 Maintenance, Cleaning, and Storage If Rope Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Cleaning after use is important for maintaining the safety and longevity of Rope Anchor. Remove all dirt, corrosives, and contaminants from Rope Anchor before and after each use.
- Page 7 Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment.

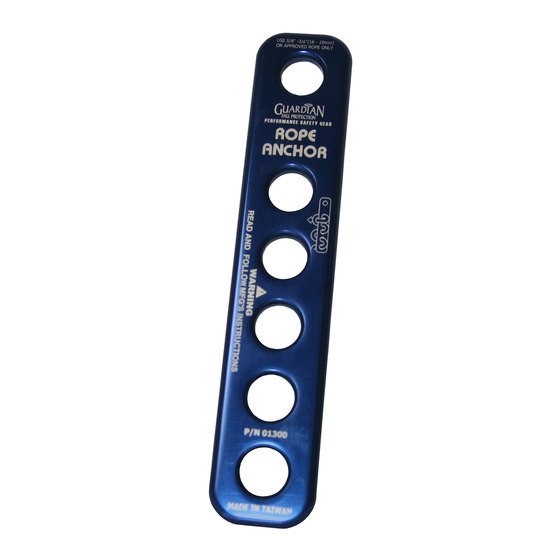

- Page 8 USE 5/8” - 3/4” (16 - 19 mm) OR APPROVED ROPE ONLY ROPE ANCHOR Inspection Grid on back of Anchor. P/N 01300 MADE IN TAIWAN 85112 (Rev. E) Distributed by Engineered Fall Protection | Sales@EngineeredFallProtection.com | (314) 492-4422 | www.EngineeredFallProtection.com...
