Servicing The System - Graf EcoLoop SP 1100 DN 200 Installation And Servicing

Distance a Sludge height
[mm] [mm]
1360 320
1380 300
1400 280
1430 250
1480 200
1530 150

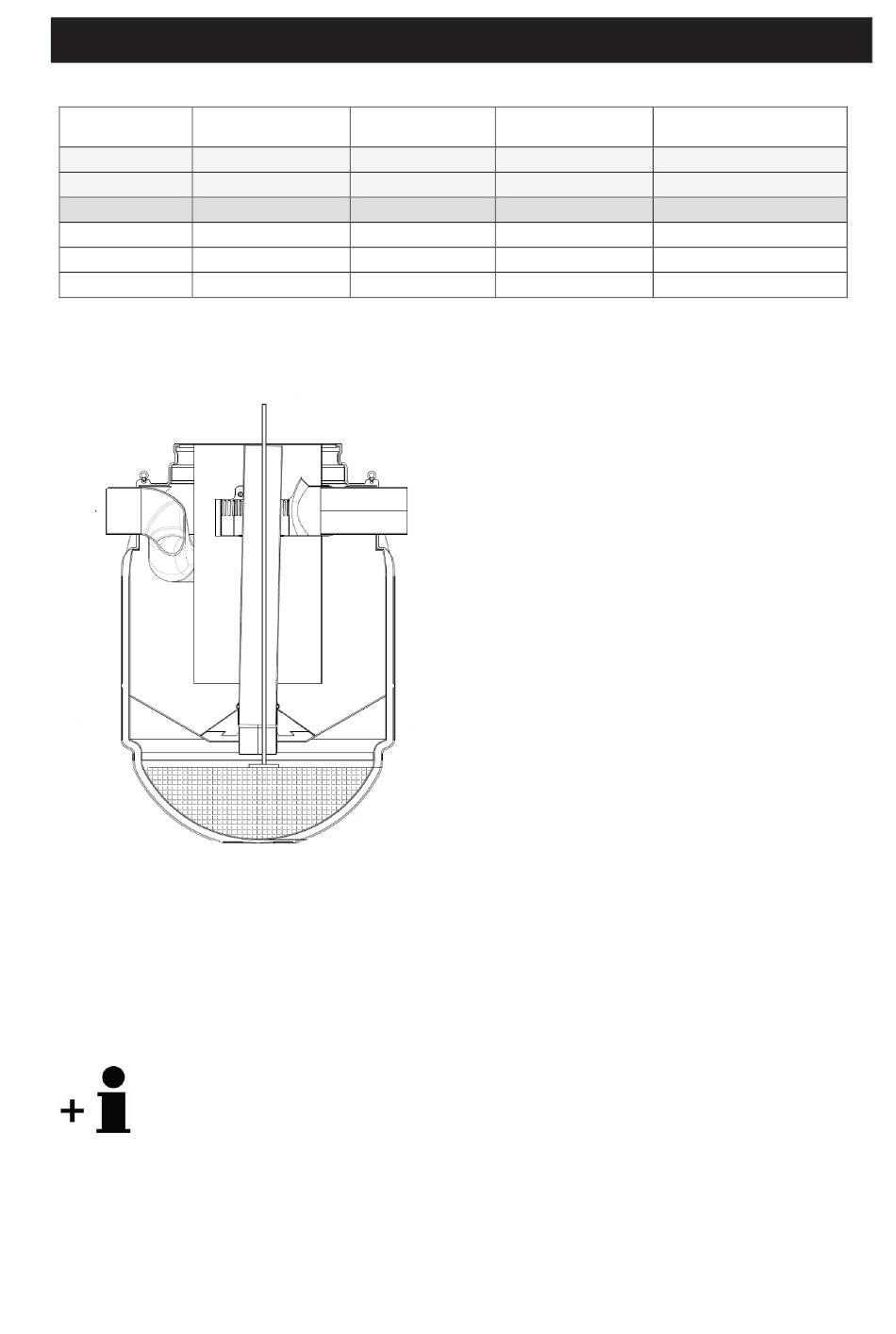

Measuring the sludge level with metering plate and dipstick
1. The level metering plate is to be attached to the dipstick. Then lower the dipstick with the measuring
tape into the sludge trap until the plate rests on the sludge surface.
2. Measuring the distance between sludge level and top edge of underground pipe (distance a).
3. The sludge must be removed at the latest when its level has reached 75% (see Table 2).
4. Record the measurement results and other activities in the logbook (see Annex).
Note:
If the distance a cannot be read off directly at the height of the pipe's top edge, e.g.
because the EcoLoop Saphir has been installed too deeply, the distance can be meas-
ured from a fixed point like the ground surface. distance a = distance c – distance b.
6.3

Servicing the system

The whole collecting space in the system must be emptied with an extractor and afterwards refilled. The
system can then continue operating reliably. Please follow the procedure in the order given below. The
system should be serviced whenever possible in dry weather. The site must be secured in traffic areas.
6 Inspection and maintenance
Level
[%]
100
90
75
65
43
25
34 / 76
Sludge volume Maintenance
[l] sary?
140 Yes, very urgently
125 Yes, very urgently
105 Yes, urgently
90 Not urgently
60 No
35 No
neces-
