5.8.1

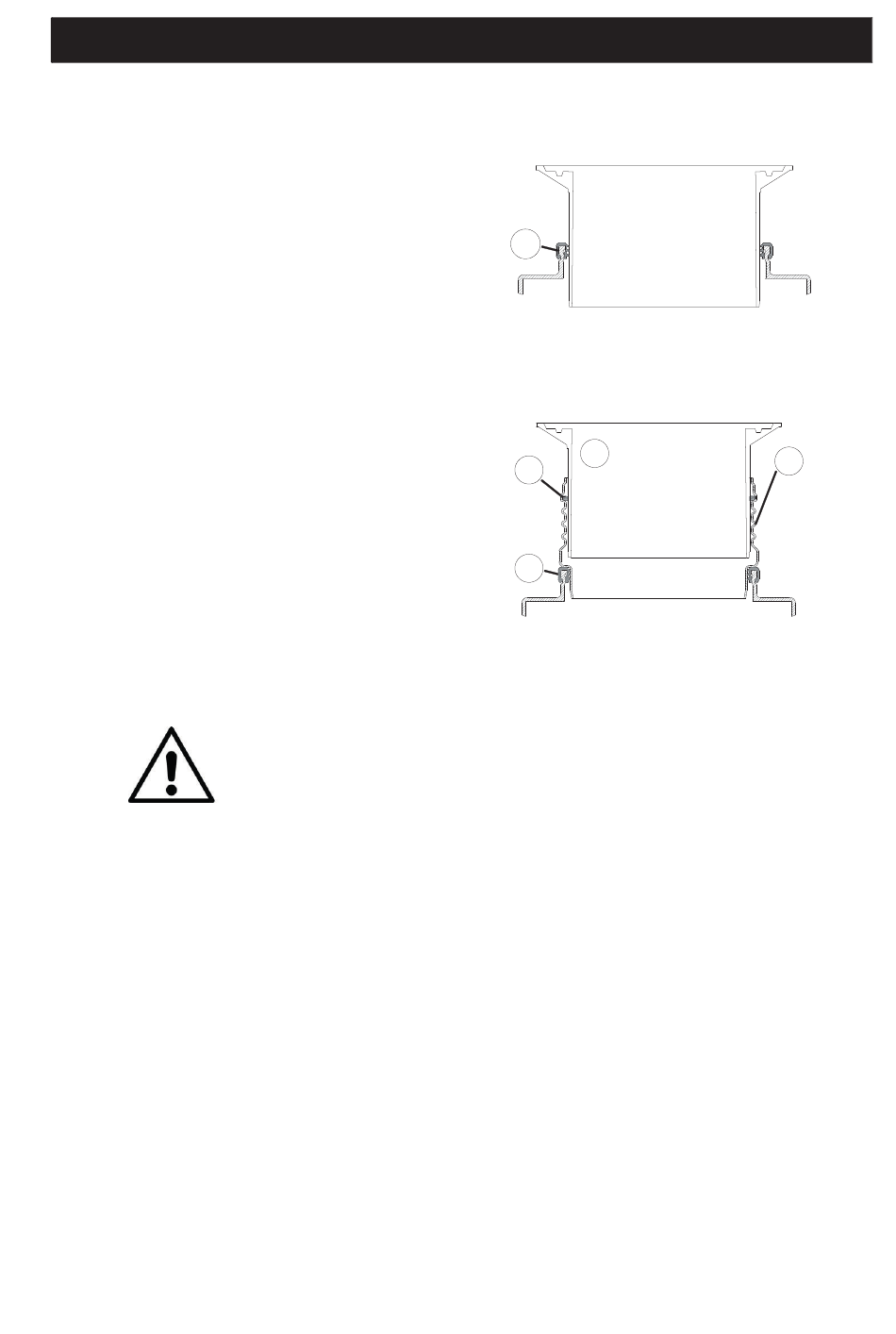

Installation of telescopic dome shaft on the tank

The telescopic dome shaft allows infinite adjust-

ment of the system to given terrain surfaces. To

install the telescopic dome shaft on the system, the

profile seal ⑤ is fitted to the tank opening. The

profile seal (material EPDM) of the shaft dome is

rubbed in with plenty of soft soap (do not use lub-

ricants with a mineral oil base because they will

corrode the seal). The telescope is then greased,

slid in and aligned to the terrain surface.

5.8.2

The profile seal ⑤ is fitted on the tank opening

and the extension sleeve ④ slid in up to its stop.

Before sliding in the extension sleeve, the seal

must be lubricated with soft soap.

The seal ③ is fitted in the extension sleeve and

the telescopic dome shaft ② is slid in.

5 Installation and assembly

If the pipework within the system collides with the telescopic dome shaft,

the telescopic dome shaft has to be shortened accordingly.

30 / 76
