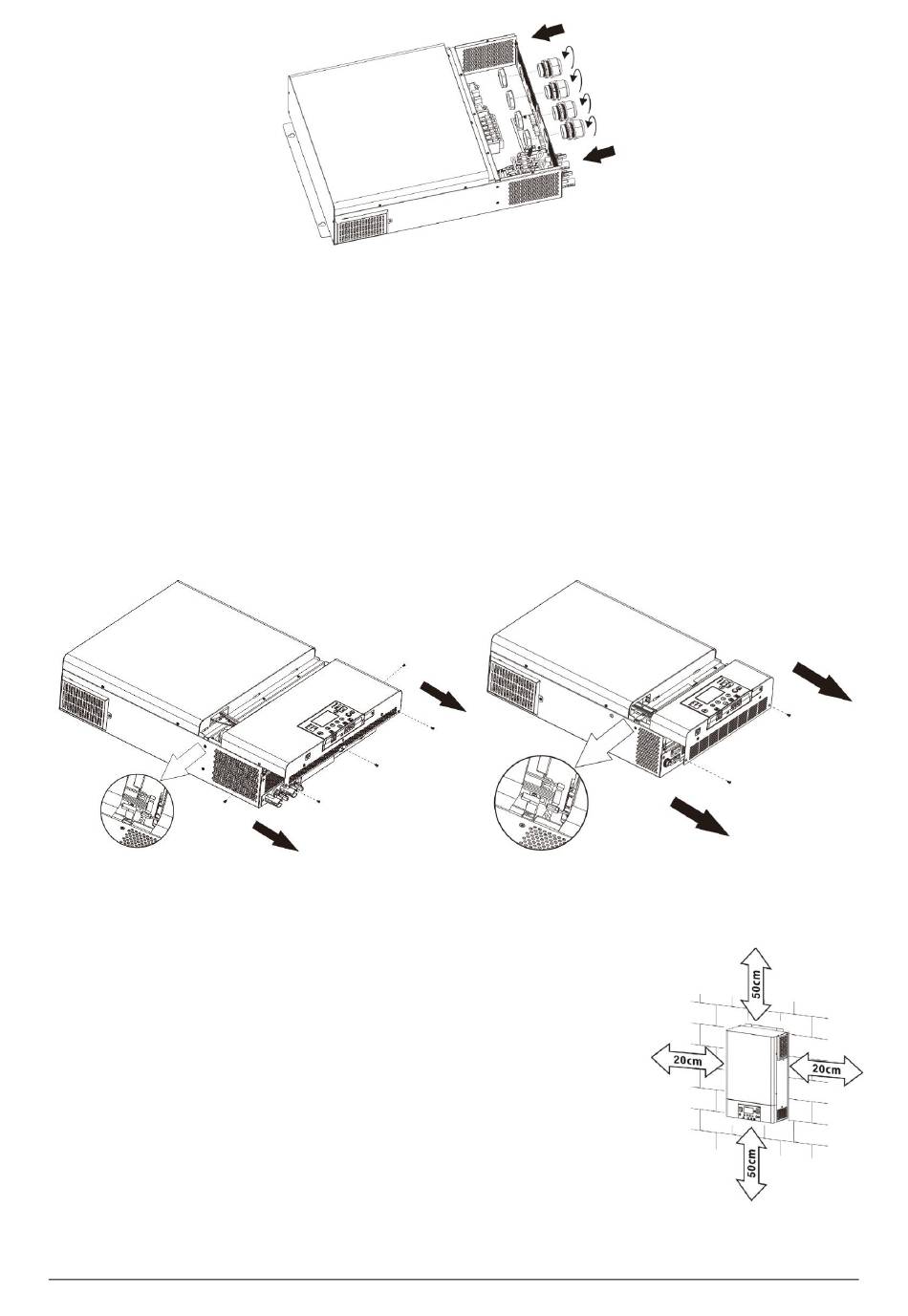

Fig. 3.2: Installation of cable glands (PSW-H-5KW-120/48V and PSW-H-8KW-230/48V)
1. Remove faceplate by removing 4 screws (Fig. 3, left).
2. Assemble battery wiring extension box and mount in place of the faceplate (Fig. 3, right) with screws.
3. Install the 5 (PSW-H-3KW-120/24V, Fig. 3.1, right) or 4 (PSW-H-5KW-120/48V and PSW-H-8KW-230/48V, Fig.
3.2) included cable glands.

Mounting the Unit

5.3
Before connecting all wirings, please take off bottom cover by removing five (PSW-H-5KW-120/48V and PSW-H-
6.5KW-120/48V) or two (all other models) screws as shown below and carefully sliding the cover down. Before
removing the cover entirely, remove the 3 wire harnesses by their connectors (Fig. 4).
PSW-H-5KW-120/48V, PSW-H-6.5KW-120/48V
and PSW-H-8KW-230/48V
WARNING: Only mount this unit on concrete or another solid non-combustible
surface capable of securely holding the weight of the unit.
•
Install this inverter at eye level to ensure legibility of the display
•
Ensure the ambient temperature is between -10 ~ 50 °C, 14 ~ 122 °F at all
times. In order to fulfill UL requirements, inverters must be operated at an
ambient temperature of -10 ~ 40 °C, 14 ~ 104 °F.
•
Avoid excessively dusty environments, direct sunlight, and corrosive
environments such as salty air.
•
The unit is designed for vertical installation on a solid wall
