Phocos Any-Grid Series User And Installation Manual
Pure sine wave grid inverter with mppt solar charge controller
Hide thumbs
Also See for Any-Grid Series:
- User and installation manual (58 pages) ,
- Settings manual (7 pages) ,
- Recommended battery settings manual (7 pages)
Related Manuals for Phocos Any-Grid Series
Summary of Contents for Phocos Any-Grid Series

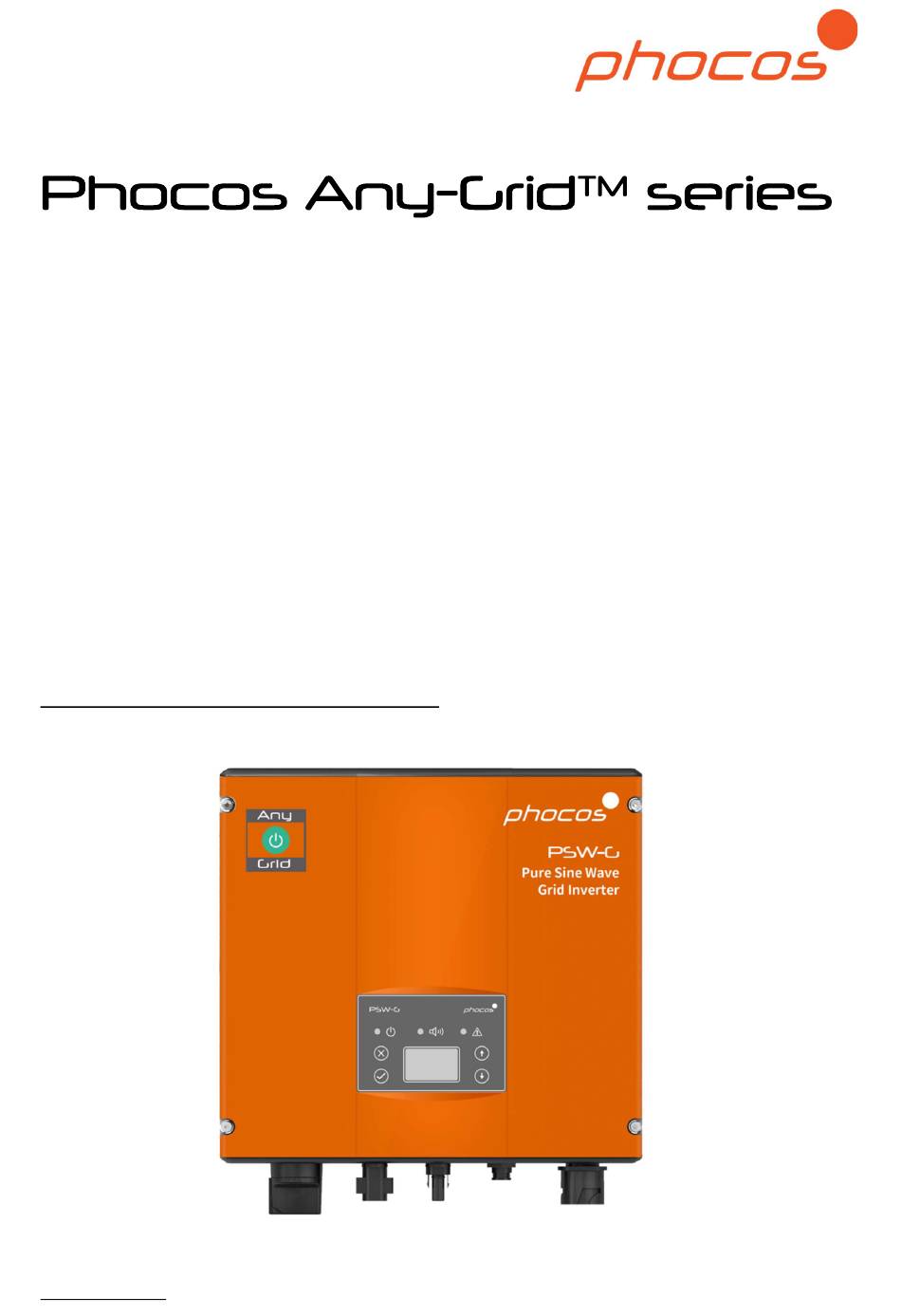

- Page 1 Pure Sine Wave Grid Inverter with MPPT Solar Charge Controller PSW-G-1KW-1P PSW-G-2KW-1P PSW-G-3KW-1P PSW-G-4KW-1P PSW-G-5KW-1P User and Installation Manual English www.phocos.com...
-
Page 2: Table Of Contents
Grid Certification Selection ................................29 Monitoring Communication ........................30 Standard Communication ................................31 Optional Communication ................................32 Troubleshooting............................32 10.0 Technical Specifications ..........................34 11.0 Warranty ............................... 35 Conditions ......................................35 Liability Exclusion ....................................35 www.phocos.com P a g e... -
Page 3: Introduction
Please read this manual carefully and follow all safety precautions seriously before any moving, installation, operation and maintenance to ensure correct use and high performance of operation on the inverter. The use of Any-Grid series PSW-G grid-tied solar inverters must comply with local laws and regulations on grid-tied power generation. -
Page 4: Safety Guidelines
Remove the metal jewelry such as ring and bracelet before installation and electrical connection to avoid electric shock. Do cover solar modules with light-tight materials before electrical connection. Exposed to sunlight, solar modules will output dangerous voltage. www.phocos.com P a g e... -
Page 5: Product Overview
Product Overview This chapter mainly describes the appearance, packaging accessories, name plate, technical parameters and other information of PSW-G series grid-tied solar inverters. www.phocos.com P a g e... -
Page 6: Solar Grid-Tied Power Generation System
Supported Grid Connection Structure PSW-G series grid-tied solar inverters support TN-S, TN-C, TN-C-S and TT grid connection. When applied to the TT connection, the N-to-PE voltage should be less than 30V. Figure 2: Type of grid www.phocos.com P a g e... -
Page 7: Product Appearance

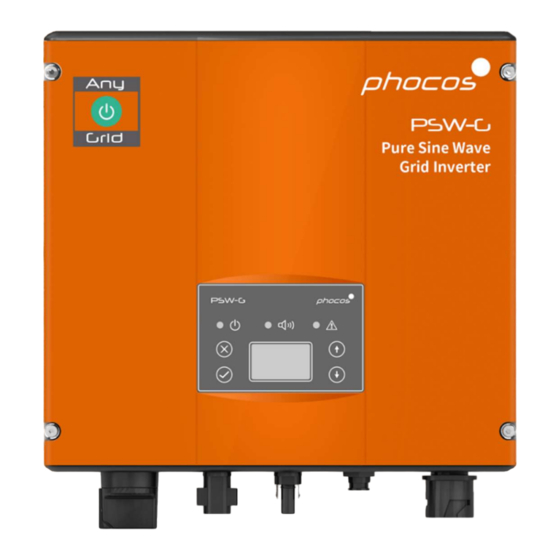

For the connection of solar modules AC terminal For the connection of AC output Communication port RS485 and EXT communication port Cooling chamber Radiator Name plate For rated parameters and safety precautions of the inverter Nameplate Figure 4: Inverter nameplate www.phocos.com P a g e... -
Page 8: Model Names
5000 Note: For technical parameters of grid-tied solar inverter refer to chapter 10. Dimensions and Weight Figure 5: Inverter dimensions Model Height (mm) Width (mm) Depth (mm) Net Weight (kg) PSW-G-1KW-1P PSW-G-2KW-1P PSW-G-3KW-1P PSW-G-4KW-1P PSW-G-5KW-1P www.phocos.com P a g e... -
Page 9: Storage
If any damage is detected, please contact the shipping company or the supplier directly. Please also provide photos of the damage to get our www.phocos.com P a g e... -
Page 10: Before Installation
1 pc. Before Installation Installation Tools Installation Tool Instruction Marking pen Mark the installation hole Electric drill Drill in the bracket or wall Hammer Hammer on the expansion bolts Monkey wrench Fix the installation bracket www.phocos.com P a g e... - Page 11 Figure 8: Installation location space around inverter (mm) Ensure there is sufficient space for heat dissipation. In generally, below space requirement should be met: Side Minimum Clearance Left / Right 200 mm Top / Bottom 450 mm www.phocos.com 10 | P a g e...
-
Page 12: Mechanical Installation
Here we take wall installation as an example to introduce the installation matters of the inverter. As shown in the Figure 10 and 11, the overall installation of the inverter should be vertical to the horizontal surface. www.phocos.com 11 | P a g e... - Page 13 Finally, fasten the inverter and the bracket with M5 screws and tighten the screws to 2 Nm. For firm installation, the operators cannot release the device until the inverter is installed on the bracket firmly. www.phocos.com 12 | P a g e...
-
Page 14: Electrical Installation
Read and follow the instructions provided in this section. Strictly follow the requirements when operating. Note Always note the rated voltage and current defined in this manual. Never exceed the limits. www.phocos.com 13 | P a g e... - Page 15 After the DC connector is connected, use a multimeter to measure the voltage of the DC input string, verify the polarity of the DC input cable, and ensure that the voltage of each string is within the allowable range of the inverter, as shown in Figure 15. www.phocos.com 14 | P a g e...
- Page 16 0.5 Nm. Assemble the AC terminal and tighten to 2.5-3 Nm, then connect the terminal to the AC port of the inverter. Connect the DC output cable of the PV modules to the DC terminal of the inverter. www.phocos.com 15 | P a g e...
-
Page 17: Operation
Run (left) LED: inspection, wait for enough light to fulfill grid-connected feed-in condition. Green indicator on, others off: The inverter is in power generation after self-inspection – Run (left) LED: successful commissioning. www.phocos.com 16 | P a g e... -
Page 18: Stopping Operation
Disconnect the input and output switches. Wait ten minutes. Use a soft brush or a vacuum cleaner to clean the surface and the inlet and outlet of the inverter. Repeat Section “6.1 Inspection before Operation”. Restart the inverter. www.phocos.com 17 | P a g e... -
Page 19: Display Panel
E015). De-couple the inverter from the system before maintenance. Red indicator on, others off. Warn Current-leakage or unqualified output power energy of the inverter (E007, Fault E010, E014, E017, E018 or E020). De-couple the inverter from the system before maintenance. www.phocos.com 18 | P a g e... -
Page 20: Operation Panel
Figure 18: Main interface www.phocos.com 19 | P a g e... -
Page 21: Functions Operation
Figure 20: Monitoring parameters History Press “UP” and “DOWN” in the main interface to select “History”, and then press “ENTER” to view the parameters which are shown in Figure 21. Figure 21: History parameters www.phocos.com 20 | P a g e... - Page 22 Press “UP” and “DOWN” in the main interface to select “Setup Menu”, and then press “ENTER” to view the parameters which is shown in Figure 23. Figure 23: Settings information “Setup menu” can realize the parameter setup shown in the next table. www.phocos.com 21 | P a g e...
- Page 23 LCD Menus www.phocos.com 22 | P a g e...
- Page 24 The default password is “0000”. The user can enter the setting interface without a password. If the password is not “0000”, the user can enter the setting interface only with the correct password. www.phocos.com 23 | P a g e...
- Page 25 The set time and date need to be later than the system setting, and the start time needs to be earlier than the end time. The setting date and time is used for the statistical information. www.phocos.com 24 | P a g e...
- Page 26 The password is needed when entering the personal interface. Get the password from the supplier if necessary. It can set MPPT starting voltage from 120 Vdc to 160 Vdc under the submenu of “MPPT Start Volt”. Personal www.phocos.com 25 | P a g e...
- Page 27 “ENTER” to confirm. Generally, it is only necessary to set ACUV2, ACOV2 and ACUF2 values for ACUV, ACOV and ACUF protection. And it is necessary to set ACOF1 and ACOF2 together for ACOF protection. www.phocos.com 26 | P a g e...
- Page 28 System Information Press “UP” and “DOWN” in the main interface to select “System Information”, and then press “ENTER” to view the parameters which is shown in Figure 24. www.phocos.com 27 | P a g e...
- Page 29 Refer to section “7.4 Functions Operation” “History” for more detailed information. Inverter Control Press “UP” and “DOWN” in the control interface, and then press “ENTER” to view the sub-menu which is shown in Figure 27. www.phocos.com 28 | P a g e...
-
Page 30: Grid Certification Selection
Press the “UP” or “DOWN” button to select the country (refer to the table below), then press the “ENTER” button to complete the setting. After finishing the country setting, please follow the user manual required with the proper use of inverter. Available countries and their grid certification: www.phocos.com 29 | P a g e... -
Page 31: Monitoring Communication
LCD screen: MENU Main Menu: System Info System Information: Cert. Area Certificate Area: Figure 30: Querying country setting Monitoring Communication This chapter describes the communication connection of the inverter and monitoring system (industrial master, private computers, smart phones and so on). www.phocos.com 30 | P a g e... -
Page 32: Standard Communication
Figure 31. Figure 31: Monitoring system of inverter Standard Communication Pin definition of inverter RS485: Pin number on inverter Definition 1 (Red) +5 Vdc 2 (Orange) A (RS485+) 3 (Brown) B (RS485-) 4 (Black) www.phocos.com 31 | P a g e... -
Page 33: Optional Communication
According to above, connect the communication connector pinout and the user's device, make sure the connection is correct. Please download the monitoring software and its operation instructions from www.phocos.com. Optional Communication The optional communication modes include Ethernet, WiFi, GPRS and ENET, which also need corresponding communication parts and components as shown in the table below (sold separately). - Page 34 Output short-circuit Short E018 Input OC Input overcurrent DC input overcurrent E019 Incnst Data consistency fault Inconsistent grid voltage, frequency, leakage current or AC/DC injection E020 Power DC power reversed DC power reversed Reversed www.phocos.com 33 | P a g e...
-
Page 35: 10.0 Technical Specifications
If any problems cannot be resolved, please contact your supplier and provide following information: Model of the inverter Serial number of the inverter System version Version 1 Version 2 MCU software version Fault code Fault description 10.0 Technical Specifications www.phocos.com 34 | P a g e... -
Page 36: 11.0 Warranty
We warranty this product against defects in materials and workmanship for a period of 5 years from the date of purchase and will repair or replace any defective unit when directly returned, postage paid, to Phocos. This warranty will be considered void if the unit has suffered any obvious physical damage or alteration either internally or externally.
