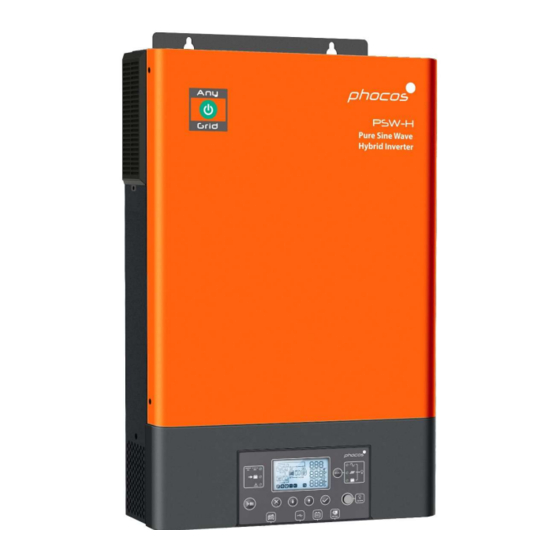

Phocos Any-Grid Series Quick Start Manual
Hide thumbs
Also See for Any-Grid Series:
- User and installation manual (58 pages) ,
- Settings manual (7 pages) ,
- Recommended battery settings manual (7 pages)
Table of Contents
Related Manuals for Phocos Any-Grid Series
Summary of Contents for Phocos Any-Grid Series
- Page 1 Phocos Any-Grid™ series Any-Grid™ use with Lithium battery models: Leoch LFeLi-48100TB, LFeLi-48150TB & LFeLi- 48100S Applicable for Any-Grid™ PSW-H-5kW-230/48V, PSW-H-5kW-120/48V, PSW-H-6.5kW-120/48V and PSW-H-8kW-120/48V Recommended battery settings guide...
- Page 2 The Any-Grid must be installed according to the Any-Grid “User and Installation Manual” included with every Any-Grid unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the batteries according to the Leoch installation manual at the appropriate step mentioned in the chapter “5.0 Battery Settings and Communication Cable Installation”...
- Page 3 Any damage to the PSW-H or battery due to incorrect wiring, cable orientation or use of an incorrect cable is not covered by any warranty. • One of the battery module(s) defined in “1.0 Introduction” of this manual. www.phocos.com P a g e...
- Page 4 Connect the battery communication cable mentioned in chapter 2 to the master battery’s RS-485A port and the other end to the Any-Grid’s BMS port. Take care to connect the correct cable ends to the battery and Any- Grid: www.phocos.com P a g e...
- Page 5 Menu 02: 80A or 0.5 x total battery bank capacity (which ever value is lower) • Voltage set-point to switch from Off-Grid mode to Grid mode when “SBU priority” or “Solar / PV first” is selected in settings menu 01 www.phocos.com P a g e...
- Page 6 Any-Grid units will be set to “User-defined”, this is normal. The commissioning and programming of the battery-related settings of the Any-Grid is now complete. The content of this document is subject to change without notice. Copyright © 2022 Phocos AG, all rights reserved. Version: 20220225 Phocos AG Magirus-Deutz-Str.
