Phocos Any-Grid Series User And Installation Manual page 18

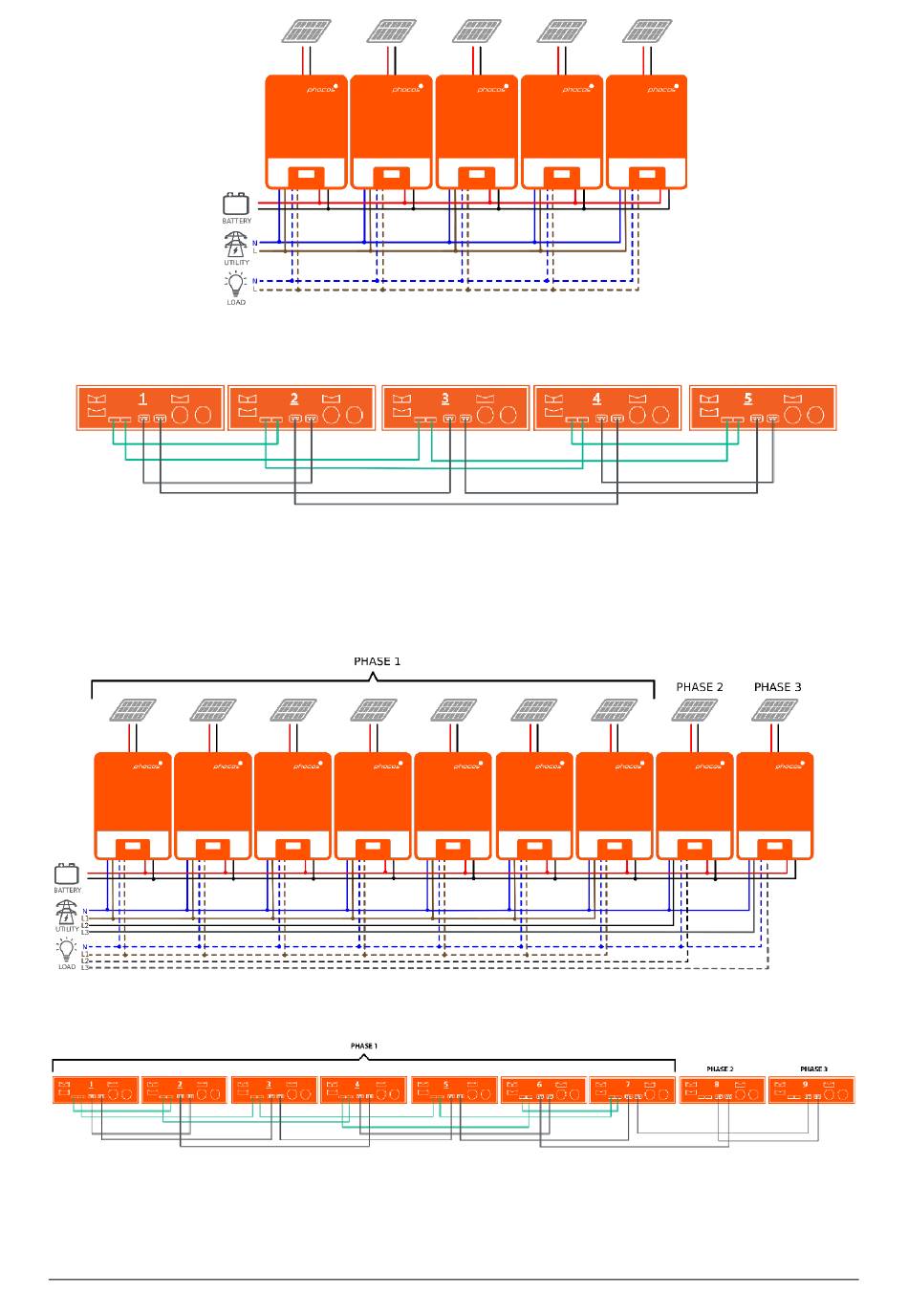

Fig. 14: Power connections of 5 units on a single phase
Fig. 15: Communication connections of 5 units on a single phase
Example: 7 Units on Phase 1, 1 Unit on Phase 2, 1 Unit on Phase 3
Note: this example excludes circuit breakers, SPDs, RCDs and bus bars for better visibility.
Fig. 16: Power connections of 7 units on P1, 1 unit on P2, 1 unit on P3
Fig. 17: Communication connections of 7 units on P1, 1 unit on P2, 1 unit on P3
Notice that because there is only one unit on phase 2 (P2) and phase 3 (P3), there are no green current sharing cables
connected to these two units.
www.phocos.com 17 | P a g e
