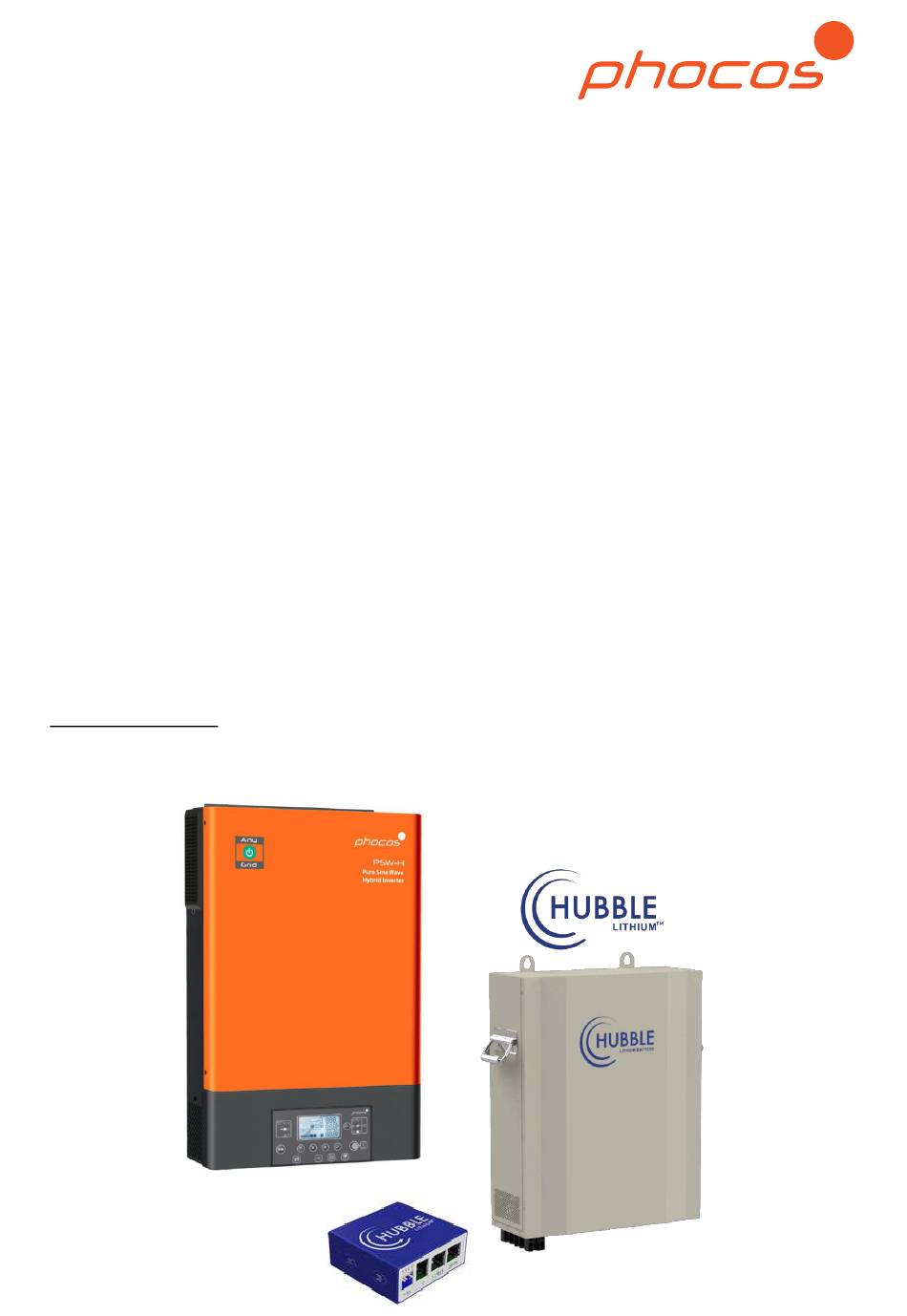

- Page 1 Phocos Any-Grid™ series Any-Grid™ PSW-H use with lithium battery models: Hubble AM-2, AM-4, X-100 and X-101 Applicable for Any-Grid™ models 48 Vdc: PSW-H-5kW-230/48V, PSW-H-5kW-120/48V, PSW-H-6.5kW-120/48V 24 Vdc: PSW-H-3KW-230/24V and PSW-H-3KW-120/24V Setup guide...
- Page 2 The Any-Grid must be installed according to the Any-Grid PSW-H “User and Installation Manual” included with every Any-Grid PSW-H unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the battery units according to the Hubble installation manual at the appropriate step mentioned in the chapter 5.0 of this manual.
- Page 3 CAUTION: If the correct polarity of the battery is not observed, the Any-Grid and the battery may be damaged, this is not covered by warranty. Plug the RJ-12 end of the battery communication cable into the Cloudlink device’s “S” port and the RJ-45 side www.phocos.com P a g e...
- Page 4 When the Cloudlink setup is complete, and if no errors are present on the Any-Grid(s) and any of the battery unit(s), turn on the load breaker, followed by the PV and finally the AC source breaker (if present in the system). The commissioning battery unit(s) and Any-Grid(s) is now complete. www.phocos.com P a g e...
- Page 5 The content of this document is subject to change without notice. Copyright © 2020-2021 Phocos AG, all rights reserved. Version: 20210916 Phocos AG Magirus-Deutz-Str. 12 89077 Ulm, Germany Phone +49 731 9380688-0 Fax +49 731 9380688-50 www.phocos.com info@phocos.com www.phocos.com P a g e...
