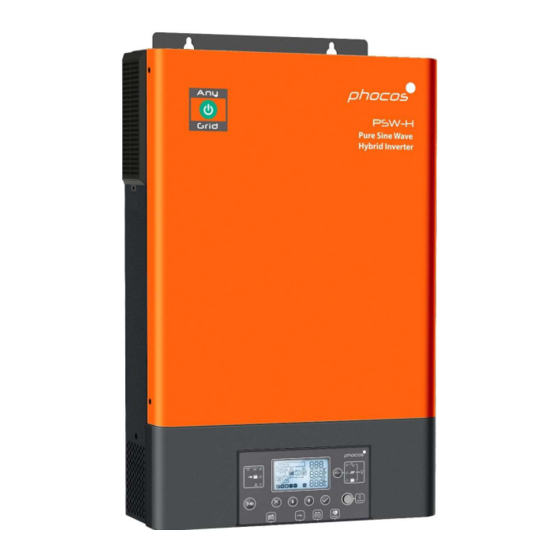

Phocos Any-Grid Series Settings Manual
Use with lithium battery models pylontech us2000, us3000, phantom-s, force l1 and force l2, recommended battery settings
Hide thumbs
Also See for Any-Grid Series:
- User and installation manual (58 pages) ,
- Recommended battery settings manual (7 pages) ,
- Firmware upgrade manual (7 pages)
Related Manuals for Phocos Any-Grid Series
Summary of Contents for Phocos Any-Grid Series

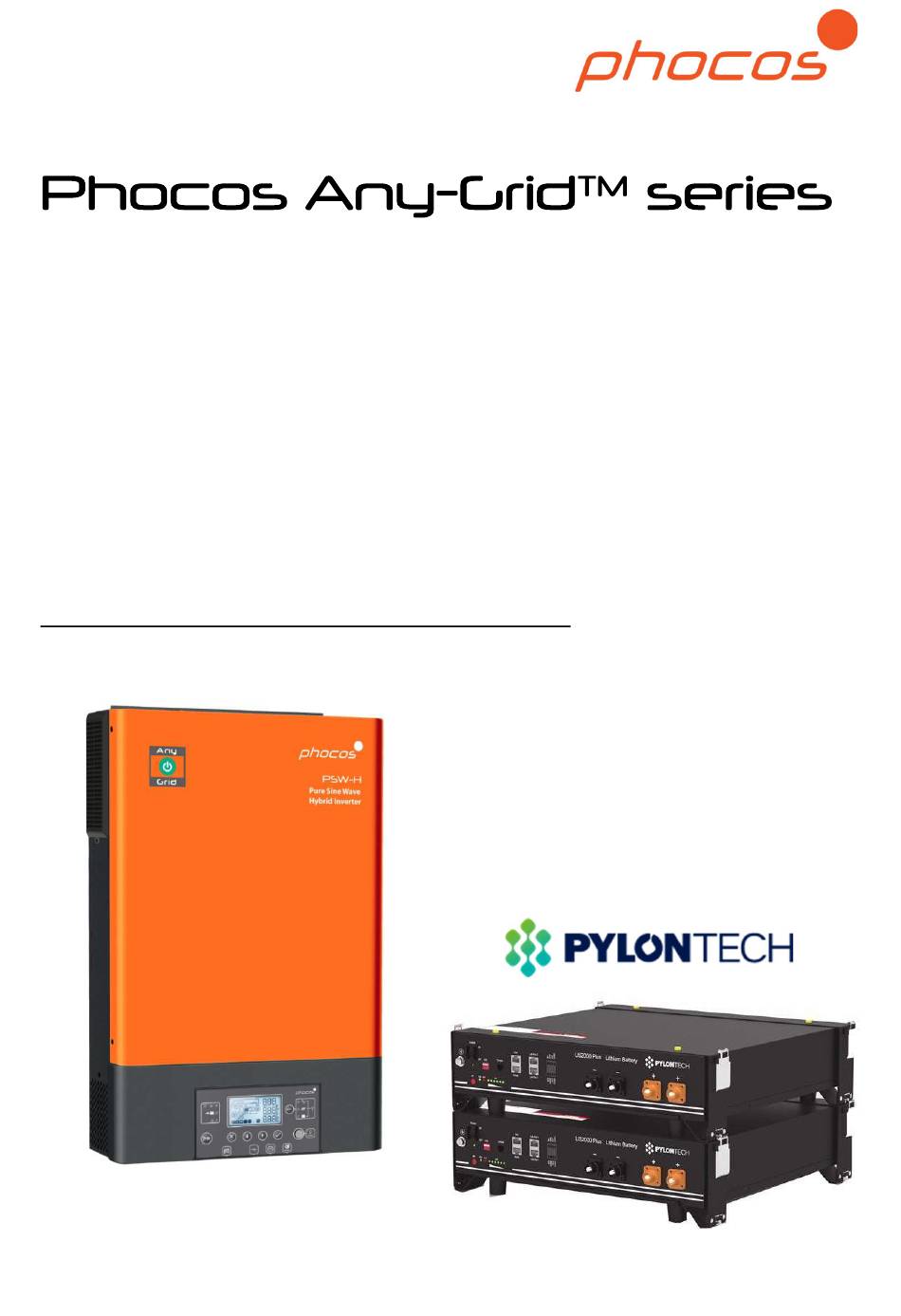

- Page 1 Any-Grid™ use with Lithium battery models: Pylontech US2000, US3000, Phantom-S, Force L1 and Force L2 Applicable for Any-Grid™ PSW-H-5kW-230/48V Recommended battery settings guide...
- Page 2 The Any-Grid must be installed according to the Any-Grid “User and Installation Manual” included with every Any- Grid unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the battery racks according to the Pylontech installation manual at the appropriate step mentioned in the chapter “5.0 Battery Settings and Communication Cable Installation”...
- Page 3 (maximum voltage, maximum current, etc). These settings can be adjusted to optimize the performance of your particular system, but must be kept within the limits of the battery specifications. Purchase the PSW-H-BAT-CABLE-PYLON-2 or PSW-H-BAT-CABLE-PYLON from a Phocos dealer. This cable is designed specifically for connecting the Any-Grid PSW-H to Pylontech battery racks.
- Page 4 To supply the Any-Grid(s) with power, press the red START / SW on the master battery rack for more than 3 seconds. Ensure the “ON/OFF” load power button of the Any-Grid(s) is in the ON position (depressed), but no loads are connected: www.phocos.com P a g e...
- Page 5 “Pylontech battery” . If you wish to modify them later, temporarily set the battery type to “User defined” , change the settings as necessary, and then set the battery type back to “Pylontech battery” . Battery type Menu 05: Pylontech battery www.phocos.com P a g e...
- Page 6 13. Activate the circuit breakers or insert the fuses to energize the various inputs and outputs on the Any-Grid in the following order (skip any that are not connected): a) AC input b) PV input AC output The commissioning and programming of the battery-related settings of the Any-Grid is now complete. www.phocos.com P a g e...
- Page 7 The content of this document is subject to change without notice. Copyright © 2020 Phocos AG, all rights reserved. Version: 20200309 Phocos AG Magirus-Deutz-Str. 12 89077 Ulm, Germany Phone +49 731 9380688-0 Fax +49 731 9380688-50 www.phocos.com info@phocos.com www.phocos.com P a g e...
