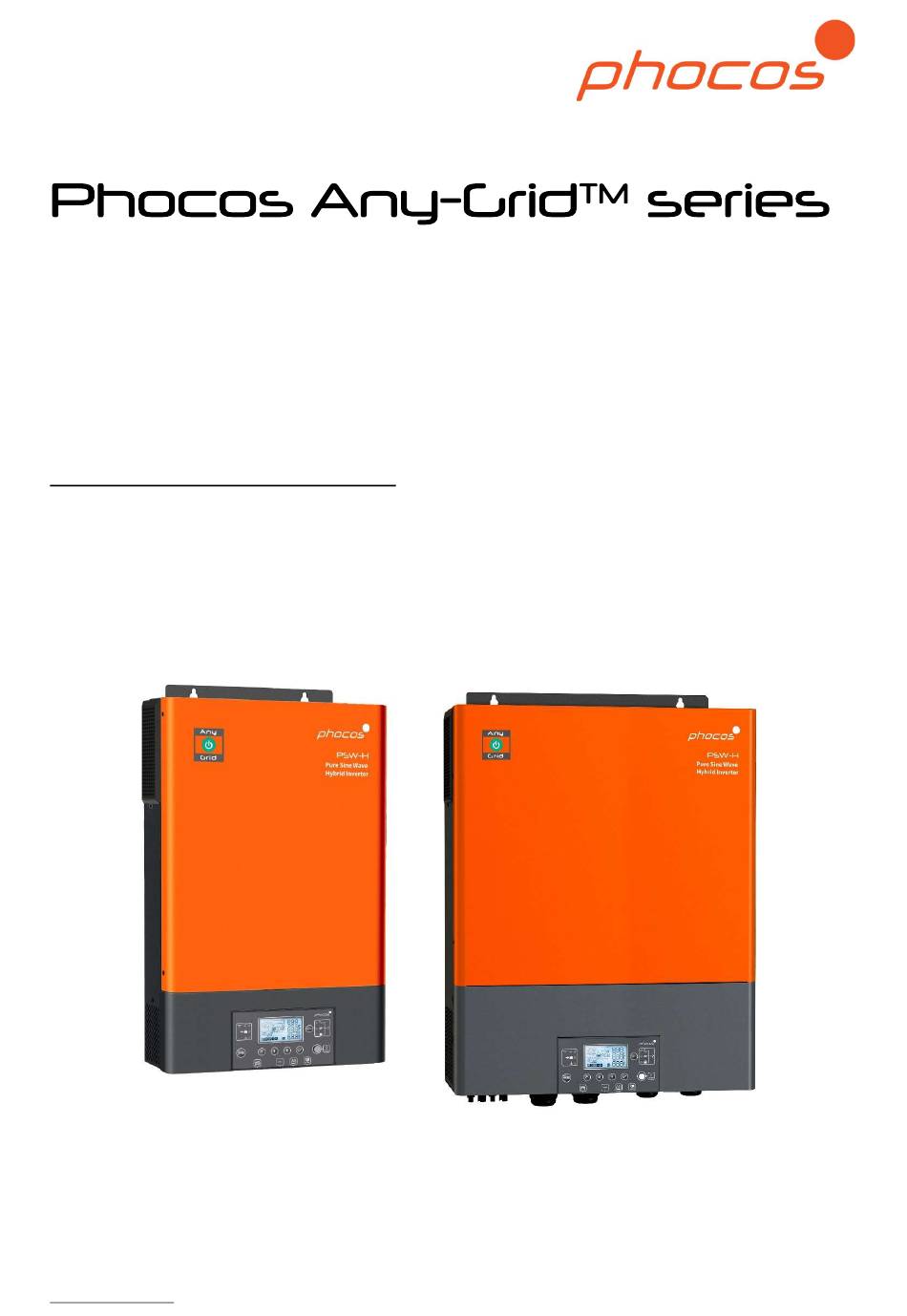

- Page 1 Applicable for Any-Grid™ PSW-H models as mentioned in the Upgrade File Name Firmware Upgrade Guide www.phocos.com...
- Page 2 Any-Grid PSW-H unit – model as mentioned in the filename of the upgrade zip package Firmware upgrade file(s) in zip package provided by your Phocos dealer RS-232 cable (RJ-45 to SUB-D connectors) provided with every Any-Grid unit Using any other cable than the one provided may damage the Any-Grid and/or your PC and void your warranty.
- Page 3 USB drive or other external peripheral to avoid interruption. Enter the folder “PSW-H Main Unit Upgrade” and execute the Upgrade software: Select the serial COM port to which the Any-Grid unit is connected: Click “Upgrade Main Unit (U1)”: www.phocos.com P a g e...
- Page 4 Then continue to connect the PV array and loads as required. 10. The “Main Unit” upgrade procedure is complete. You can check the new version number as described in the chapter “Introduction” of this document. www.phocos.com P a g e...
- Page 5 It is normal that the Upgrader software may appear not to respond for a few seconds. The progress is shown, and the upgrade typically takes 10 ~ 15 minutes. Make sure not to interrupt the upgrade during this time. www.phocos.com P a g e...
- Page 6 ON/OFF switch on display unit set to ON). Then continue to connect the PV array and loads as required. The “Display Unit” upgrade procedure is complete. You can check the new version number as described in the chapter “Introduction” of this document. www.phocos.com P a g e...
- Page 7 The content of this document is subject to change without notice. Copyright © 2020 Phocos AG, All Rights Reserved Version: 20200226 Phocos AG Magirus-Deutz-Str. 12 89077 Ulm, Germany Phone +49 731 9380688-0 Fax +49 731 9380688-50 www.phocos.com info@phocos.com www.phocos.com P a g e...
