Settings menu and Fault Information
Output Information
Battery Information
While the battery is charging, the battery indicator shows the following:
Status Battery voltage (48 V model /
24 V model)
< 48 V / < 24 V
All battery
48 ~ 50 V / 24 ~ 25 V
charging
modes except
50 ~ 52 V / 25 ~ 26 V
Floating phase
> 52 V / > 26 V
Floating phase. Batteries are fully charged.
While the battery is discharging, the battery indicator shows the following:
Load Percentage
Load > 50%
Load < 50%
www.phocos.com
Indicates input voltage, input frequency, PV voltage, charging current,
charging power, battery voltage.
Indicates the setting menus
Indicates warning and fault codes.
Warning:
Fault: shown with fault code.
Indicates output voltage, output frequency, load in % of nominal power,
load in VA, load in Watt and discharging current.
Indicates battery level in 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100%
(left to right) increments.

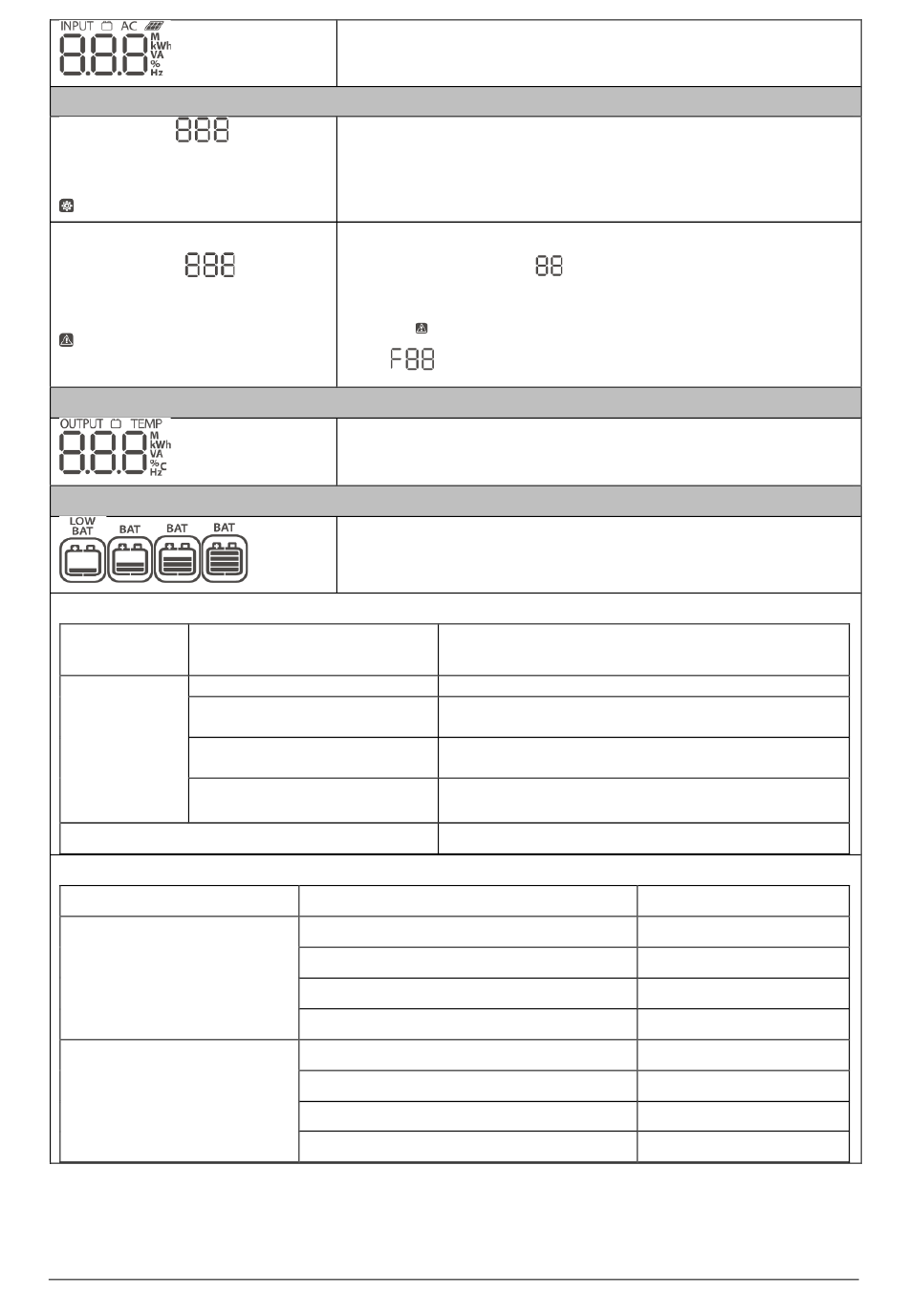

LCD Display
4 bars flash in turns
Bottom bar constantly on and other three bars flash in
turns
Bottom two bars constantly on and other two bars flash
in turns
Bottom three bars constantly on and top bar flashes
4 bars constantly on
Battery voltage (48 V model / 24 V model)
< 44.4 / < 22.2 V
44.4 ~ 46.4 V / 22.2 ~ 23.2V
46.4 ~ 48.4 V / 23.2 ~ 24.2V
> 48.4 V / > 24.2 V
< 45.4 / 22.7 V
45.4 ~ 47.4 V / 22.7 ~ 23.7V
47.4 ~ 49.4 V / 23.7 ~ 24.7V
> 49.4 V / > 24.7 V
flashing with warning code.
LCD screen
0 ~ 24%
25 ~ 49%
50 ~ 74%
75 ~ 100%
0 ~ 24%
25 ~ 49%
50 ~ 74%
75 ~ 100%
