into the "PV-" terminal (see Fig. 9.2).
CAUTION: Ensure correct polarity before connecting. Failure to do so will damage the PSW-H.
(PSW-H-5KW-120/48V, PSW-H-6.5KW-120/48V and PSW-H-8KW-230/48V)
www.phocos.com

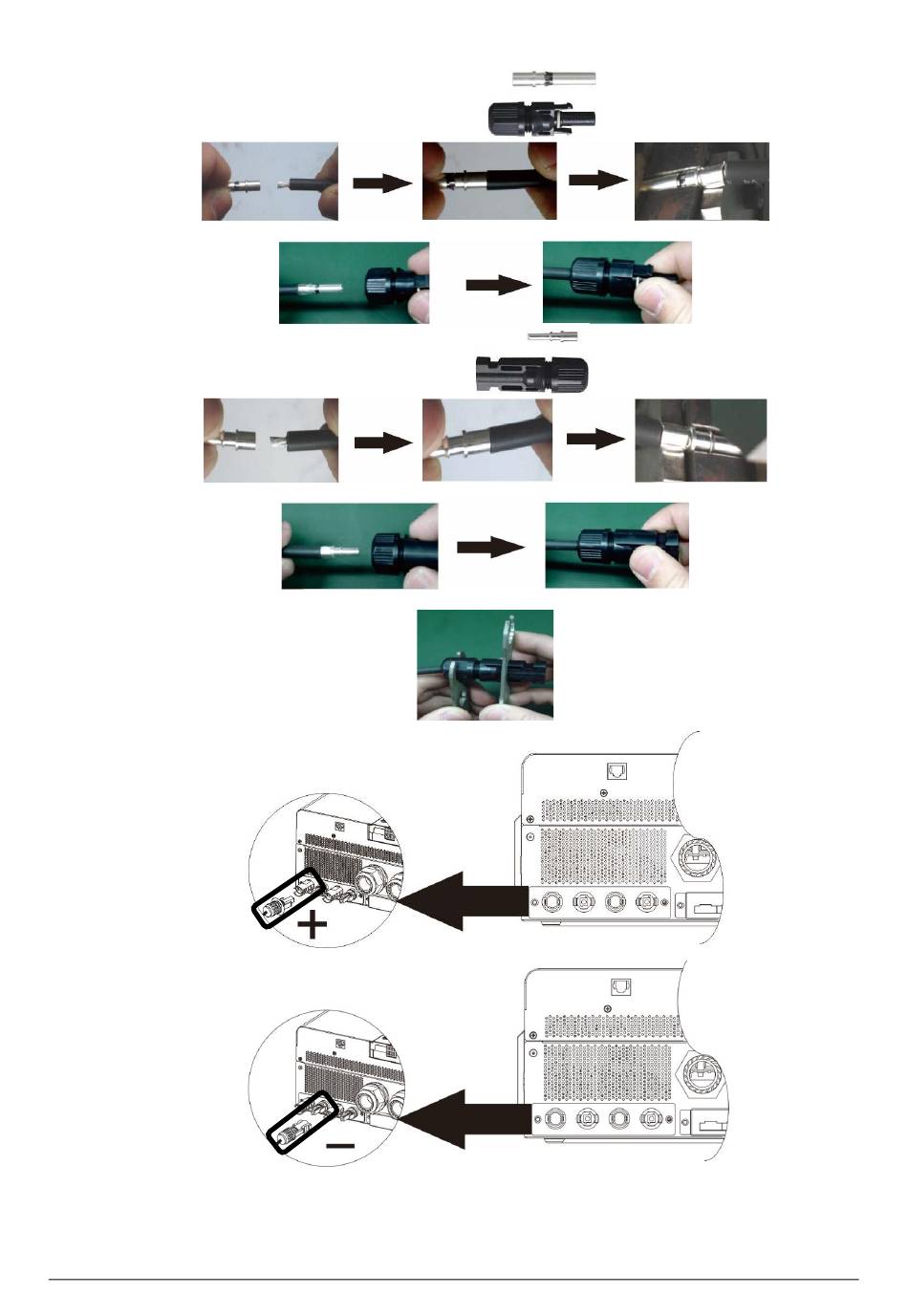

Insert stripped PV+ wire into female
Insert assembled pin into corresponding connector housing:
Insert stripped PV- wire into male
Insert assembled pin into corresponding connector housing:
Tighten both connector domes with a spanner:
Fig. 9.1: PV connection, PV2 input shown as example
MC4 pin and crimp:
MC4 pin and crimp:
