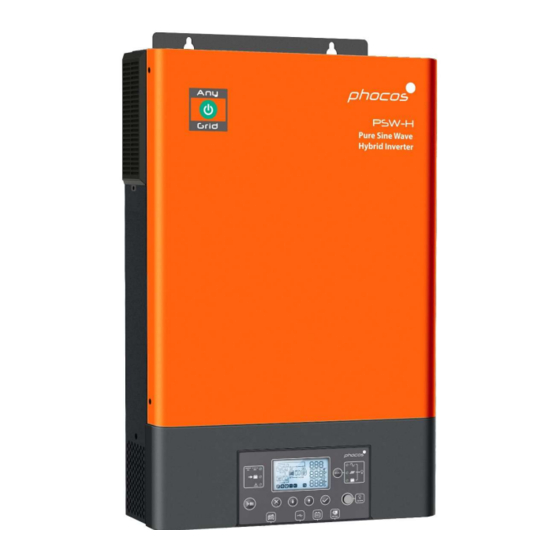

Phocos Any-Grid Series Recommended Battery Settings Manual
Hybrid inverter chargers
Hide thumbs
Also See for Any-Grid Series:
- User and installation manual (58 pages) ,
- Settings manual (7 pages) ,
- Firmware upgrade manual (7 pages)
Related Manuals for Phocos Any-Grid Series
Summary of Contents for Phocos Any-Grid Series

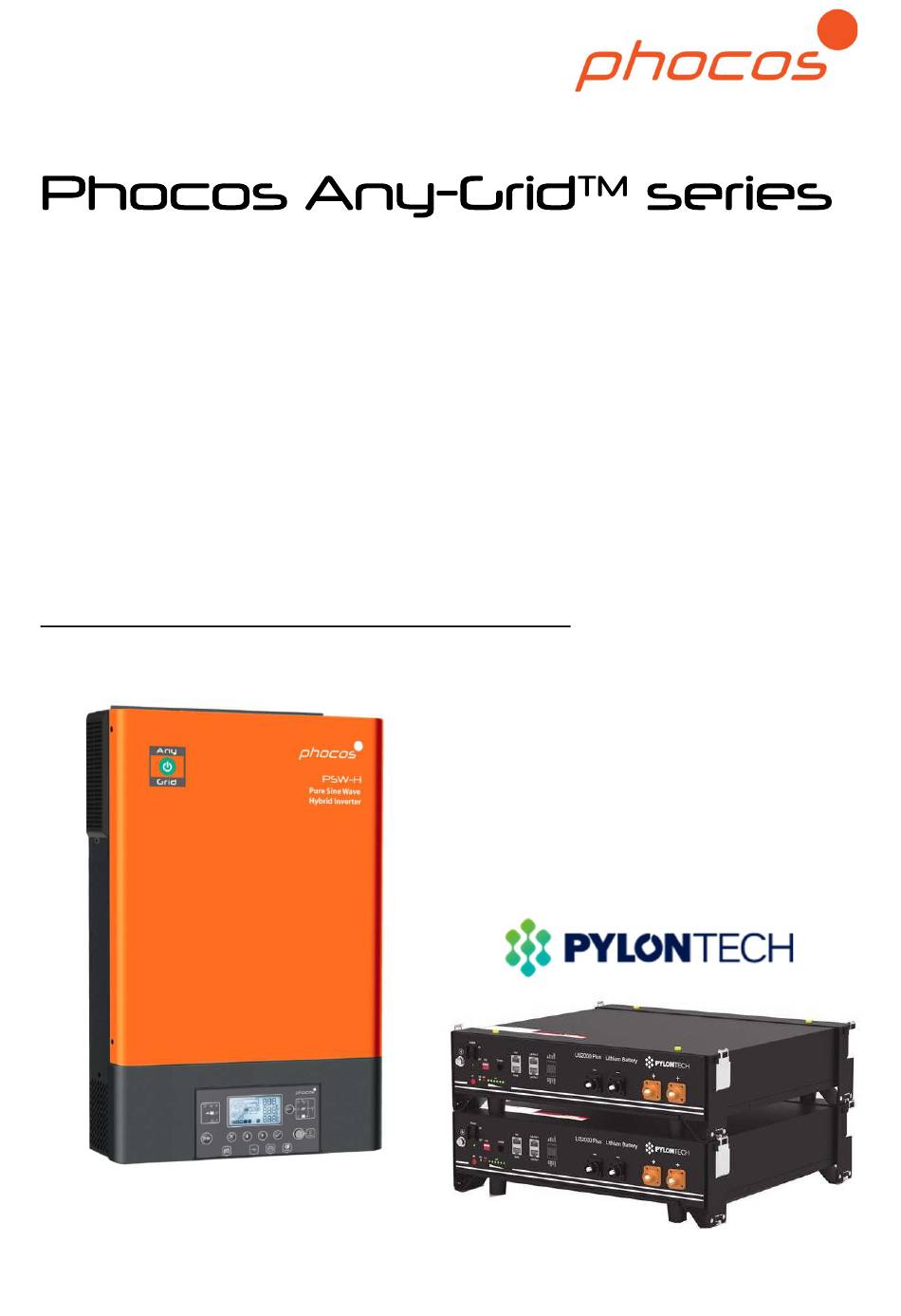

- Page 1 Any-Grid™ use with Lithium battery models: Pylontech US2000(C), US3000(C), Phantom-S, Force L1 and Force L2 Applicable for Any-Grid™ PSW-H-5kW-230/48V and PSW-H-5kW-120/48V Recommended battery settings guide...
- Page 2 The Any-Grid must be installed according to the Any-Grid “User and Installation Manual” included with every Any- Grid unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the battery racks according to the Pylontech installation manual at the appropriate step mentioned in the chapter “5.0 Battery Settings and Communication Cable Installation”...
- Page 3 If adjustments are made, the battery type (PSW-H settings menu 05) must be set to “USE”, otherwise any changes will be over-written if “PYL” is selected. Purchase the PSW-H-BAT-CABLE-PYLON-2 or PSW-H-BAT-CABLE-PYLON from a Phocos dealer. This cable is designed specifically for connecting the Any-Grid PSW-H to Pylontech battery racks.
- Page 4 If instead you are using the PSW-H-BAT-CABLE-PYLON, it is not labelled on either side. For this cable it does not matter which orientation you choose, as it functions in both orientations (do not use for C models): www.phocos.com P a g e...
- Page 5 This hub can be purchased from Pylontech (the Pylontech LV-HUB is not required): Alternatively, any RJ45 hub that simply connects in parallel all pin 1 ports, connects in parallel all pin 2 ports etc. up to pin 8 is sufficient, such as this for example https://www.amazon.de/Terminal- Parallel-Breakout-Ethernet-DMX-512/dp/B08BC4DGC5/ref=sr_1_18: www.phocos.com P a g e...
- Page 6 Therefore, these values cannot be changed once menu 05 is set to “PYL”. The maximum battery charging current in settings menu 02 is automatically calculated as follows, after communication with the battery is established (see step 11): www.phocos.com P a g e...
- Page 7 Any-Grid units will be set to “User-defined”, this is normal. The commissioning and programming of the battery-related settings of the Any-Grid is now complete. The content of this document is subject to change without notice. Copyright © 2020 Phocos AG, all rights reserved. Version: 20210120 Phocos AG Magirus-Deutz-Str.
