5.0

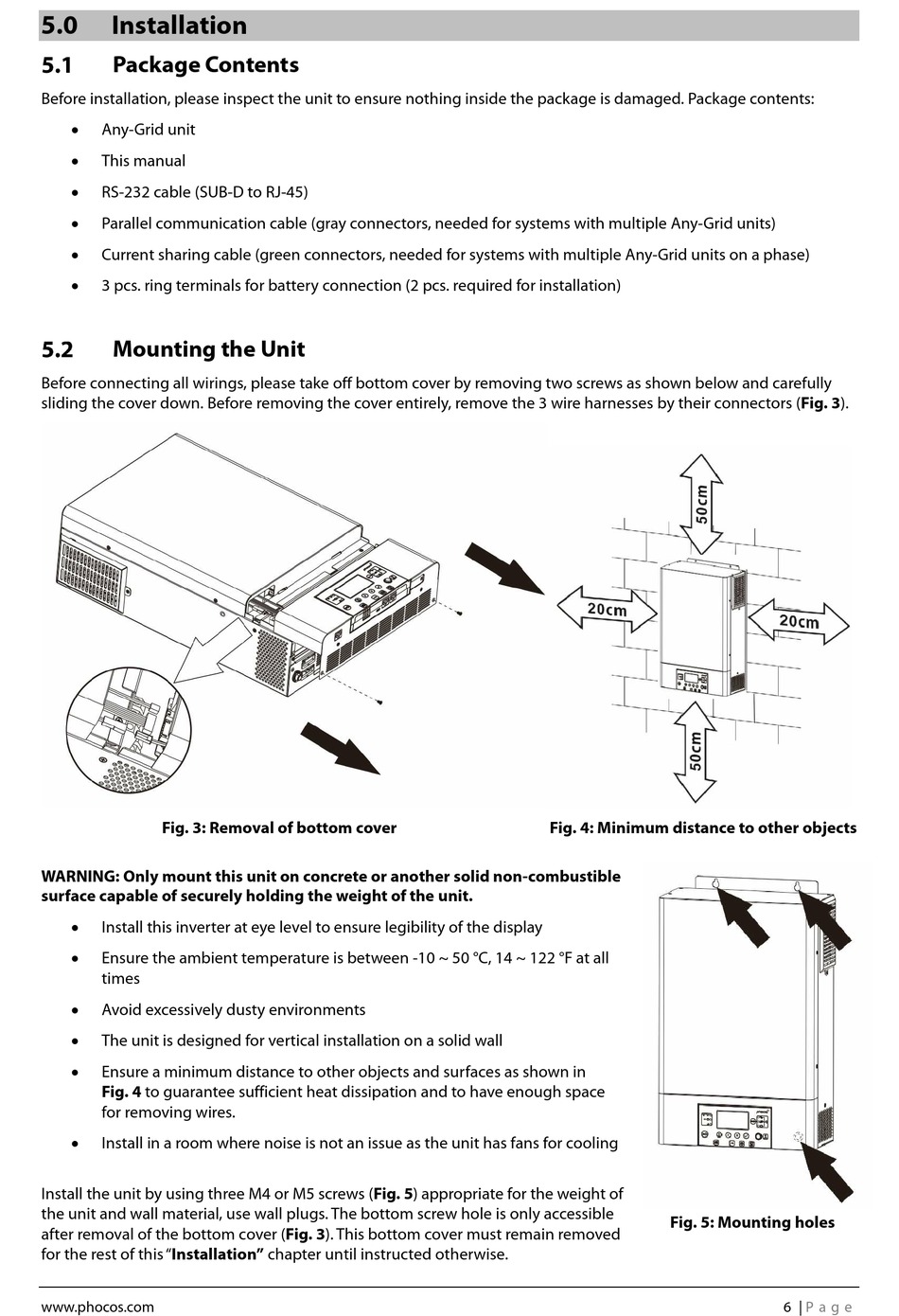

Installation

Package Contents

Before installation, please inspect the unit to ensure nothing inside the package is damaged. Package contents:

Any-Grid unit

This manual

RS-232 cable (SUB-D to RJ-45)

Parallel communication cable (gray connectors, needed for systems with multiple Any-Grid units)

Current sharing cable (green connectors, needed for systems with multiple Any-Grid units on a phase)

3 pcs. ring terminals for battery connection (2 pcs. required for installation)

Mounting the Unit

Before connecting all wirings, please take off bottom cover by removing two screws as shown below and carefully
sliding the cover down. Before removing the cover entirely, remove the 3 wire harnesses by their connectors (Fig. 3).
Fig. 3: Removal of bottom cover
WARNING: Only mount this unit on concrete or another solid non-combustible
surface capable of securely holding the weight of the unit.

Install this inverter at eye level to ensure legibility of the display

Ensure the ambient temperature is between -10 ~ 50 °C, 14 ~ 122 °F at all
times

Avoid excessively dusty environments

The unit is designed for vertical installation on a solid wall

Ensure a minimum distance to other objects and surfaces as shown in
Fig. 4 to guarantee sufficient heat dissipation and to have enough space
for removing wires.

Install in a room where noise is not an issue as the unit has fans for cooling
Install the unit by using three M4 or M5 screws (Fig. 5) appropriate for the weight of
the unit and wall material, use wall plugs. The bottom screw hole is only accessible
after removal of the bottom cover (Fig. 3). This bottom cover must remain removed
for the rest of this "Installation" chapter until instructed otherwise.
www.phocos.com
Fig. 4: Minimum distance to other objects
Fig. 5: Mounting holes
