Installation

5.0

Package Contents

5.1
Before installation, please inspect the unit to ensure nothing inside the package is damaged. Package contents:
•
Any-Grid unit
•
This manual
•
RS-232 cable (SUB-D to RJ-45)
•
Parallel communication cable (gray connectors, needed for systems with multiple Any-Grid units)
•
Current sharing cable (green connectors, needed for systems with multiple Any-Grid units on a phase)
•
3 pcs. ring terminals for battery connection (2 pcs. required for installation)
•
4 pcs. MC4 connectors for PV connection (PSW-H-5KW-120/48V, PSW-H-6.5KW-120/48V and PSW-H-8KW-
230/48V)

Installation of Battery Wiring Extension Box and Cable Glands

5.2
Note: Cable glands applicable to 120 Vac models and PSW-H-8KW-230/48V only. Battery wiring extension box
applicable to PSW-H-3KW-120/24V and PSW-H-6.5KW-120/48V only.
Installation of the battery wiring extension box is necessary for UL conformity. If UL conformity is not required in your
region, it is sufficient to only install the cable glands (step 3) shown below.

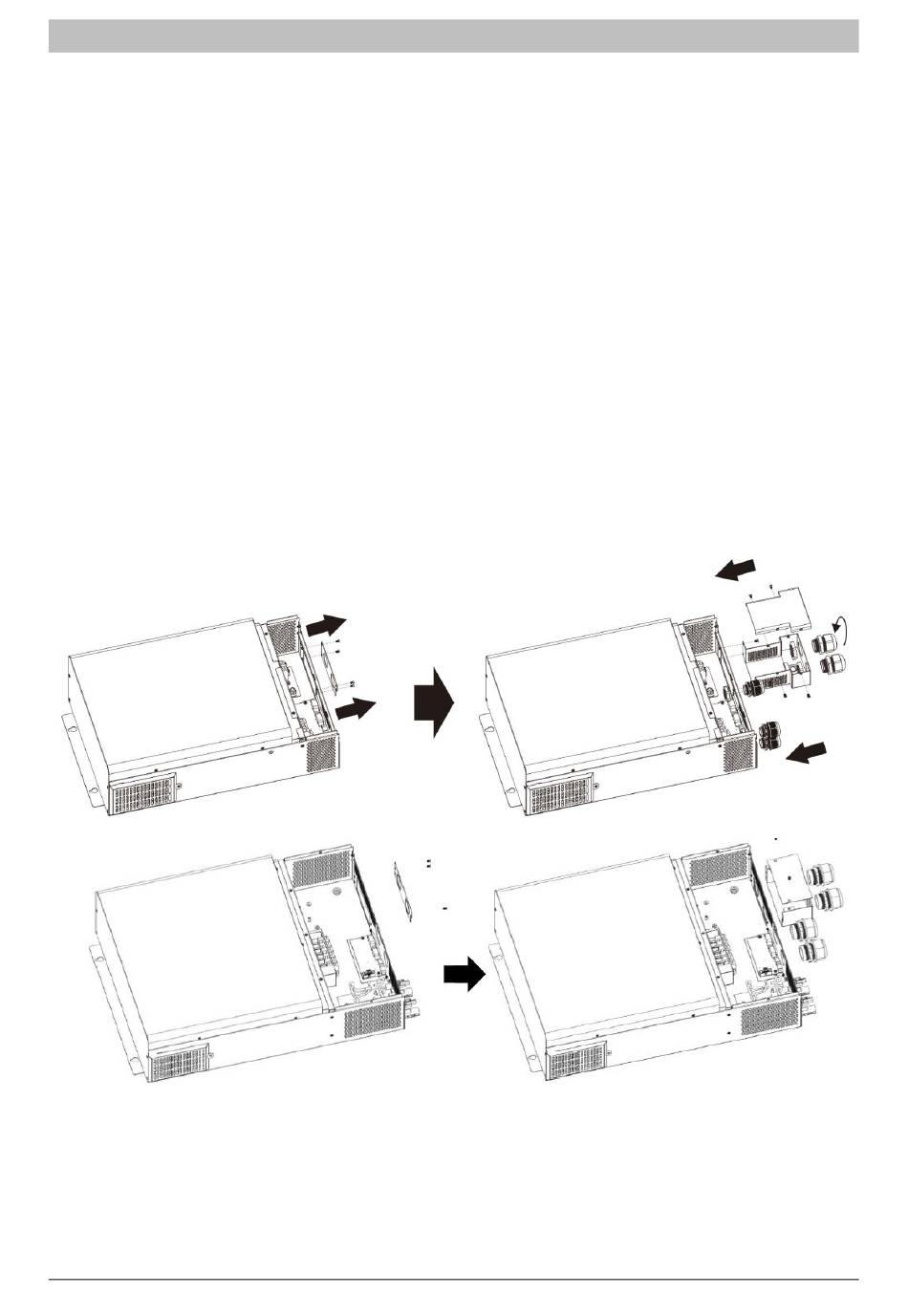

Fig. 3.1: Installation of cable glands and battery wiring extension box
www.phocos.com
(PSW-H-3KW-120/24V and PSW-H-6.5KW-120/48V)
