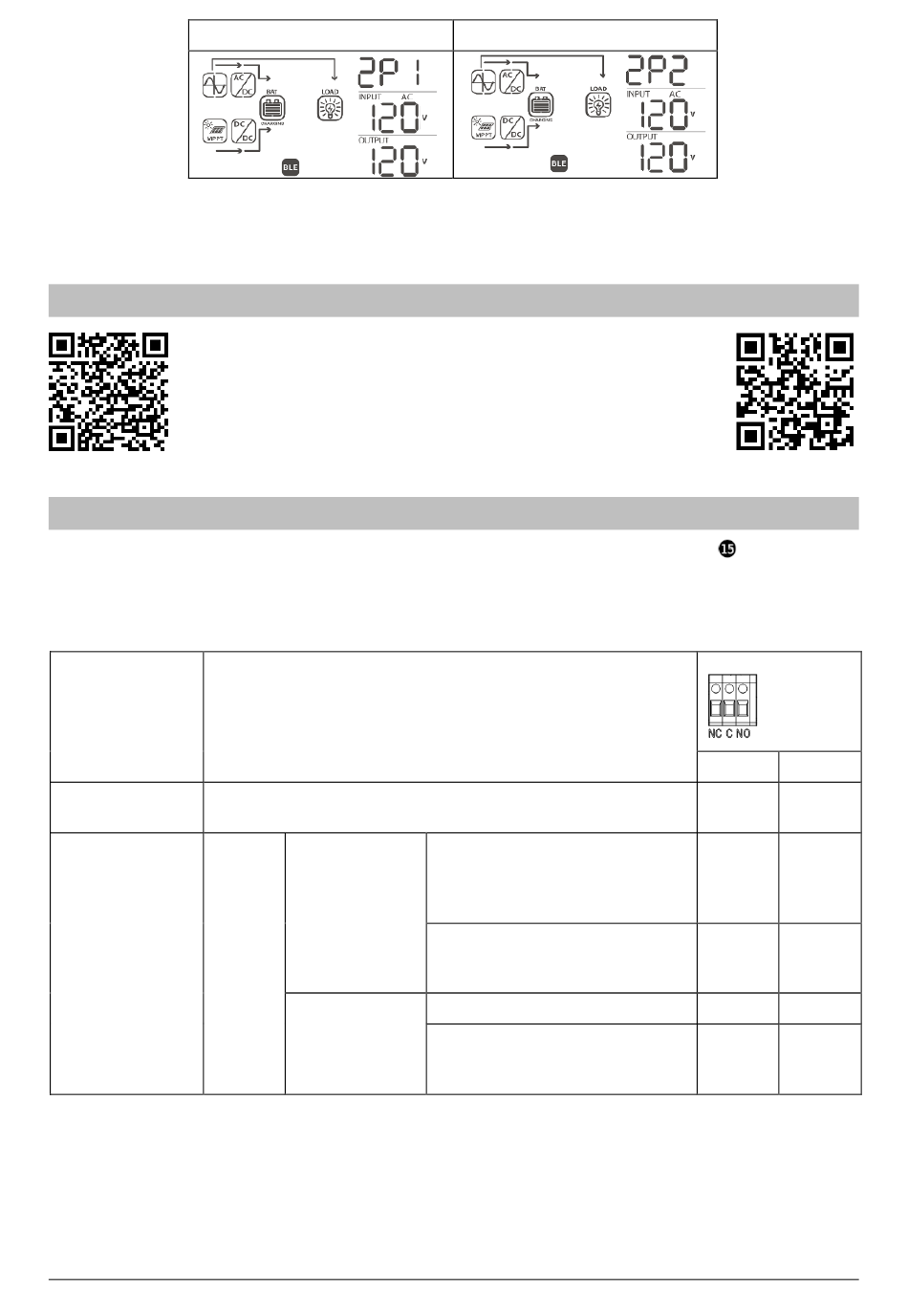

Screen of Units on Phase L1
9. If there are no further faults displayed, the split-phase system installation is complete. The breakers on the
AC output of each unit can be switched on and then loads may be connected.

BLE Communication

6.0
This unit is equipped with wireless BLE functionality. Download the
"PhocosLink Mobile" App from the Google Play™ store or Apple's App
Store® with an Android™ or iOS device, respectively. Once the App is
installed, use "pair your device"with the built-in BLE functionality of your
device to connect to the Any-Grid unit with the BLE pairing password
"123456". Then open the app and connect to the Any-Grid.The typical
maximum communication distance is approximately 6 ~ 7 meters.
Google Play™

Relay Contact

7.0
There is one potential-free relay contact (3A / 250Vac) available on the display module (Fig. 2 →
to signal an external device when battery voltage reaches a low level, such as a gasoline or diesel generator.The relay
may be wired with normally closed (NC) or normally open (NO) logic. The table below indicates the relay states
between the common (C) and NO, as well as between C and NC contacts.
Any-Grid Status Condition
Powered Off or
Unit is off and AC output is not powered.
Battery-free mode
Output is
powered
from
Powered On Battery
power or
Solar
power.
www.phocos.com
Screen of Units on Phase L2
Battery voltage < Low DC warning
voltage (2 Vdc for the 48 V model / 1
Settings Menu 01
Vdc for the 24 V model above the
set as "Utility / AC
value in settings menu 29)
input first" (USB)
or "Solar / PV first"
Battery voltage > Settings menu 13
(SUB)
or battery charging reaches Floating
phase
Battery voltage < Settings menu 12
Settings Menu 01
Battery voltage > Settings menu 13
is set as SBU
or battery charging reaches Floating
phase
Apple App Store®
). It may be used
Relay terminals:
NC & C NO & C
Closed Open
Open Closed
Closed Open
Open Closed
Closed Open
