Mechanical Fastening

Mechanical Fastening

Preliminary Remarks

IFS241x optical sensors operate in the μm range. Ob-
serve the maximum tilt angle between sensor and target.
i
Ensure careful handling during installation and
operation!

Circumferential Clamping

Use an adapter to mount the IFD241x sensors.

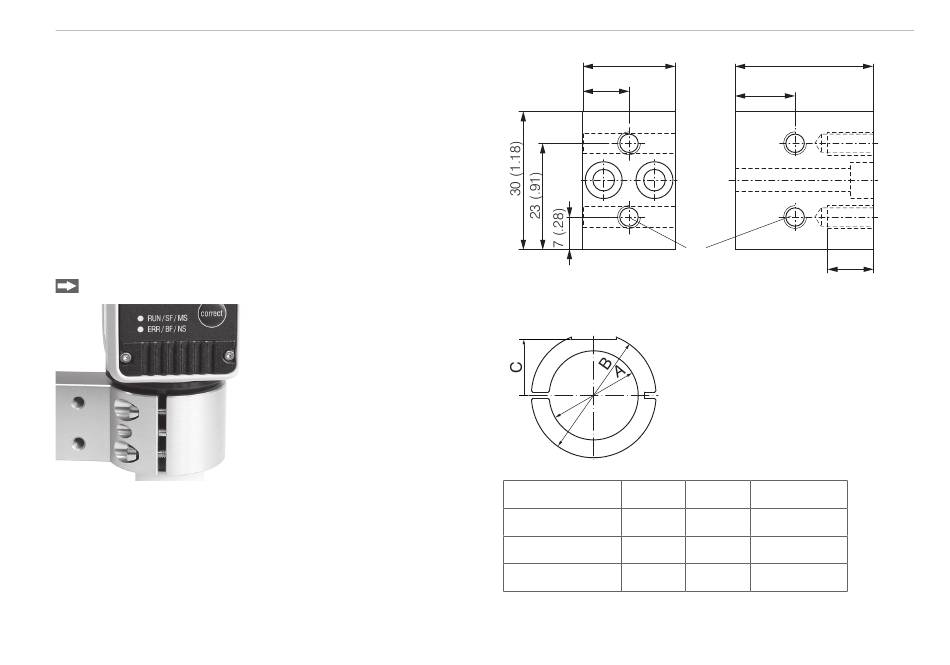

Circumferential clamping with MA240x mounting ring,
consisting of mounting block and mounting ring
i
Micro-Epsilon recommends circumferential clamp-
ing
confocalDT 2410/2415
20 (.79)
10
(.39)
Dimension in mm (inch)
Mounting ring Size A Size B
MA2400-27 ø27
MA2405-34 ø34
MA2405-54 ø54
Mounting block and MA240x mounting ring
30 (1.18)
13 (.51)
M5
10
(.39)
Size C
ø46 19.75 (.78)
ø50 22 (.87)
ø70 32 (1.26)
Page 5
