Mechanical Fastening

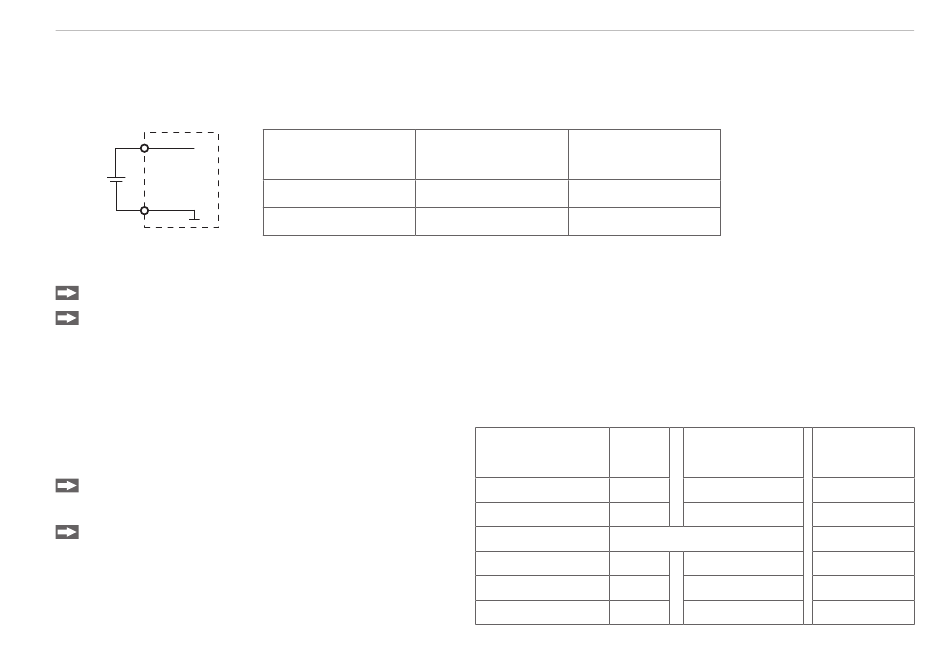

Supply Voltage

Nominal value: 24 V DC (20 ... 28 V, P < 7 W)
Sensor supply is via the PC2415-1/Y or PC2415-x/OE cable.
1
20 ...
28 VDC
IFD2410
IFD2415
2
Voltage supply only for measuring devices, not to be used for drives or similar sources of impulse interference at the
same time. MICRO-EPSILON recommends using an optional available power supply unit PS2020 for the sensor.
Only turn on the power supply after wiring has been completed.
Connect the inputs Pin 1 and Pin 2 at the sensor with a 24V power supply.

RS422 Connection with USB Converter IF2001/USB

In addition to Industrial Ethernet, the sensor also supports serial communication via RS422. Serial communication is
possible with PC2415-1/Y or PC2415-x/OE cables. The IF2001/USB is available as an optional accessory.
Properties: Differential signals according to EIA-422,
galvanically connected to the supply voltage.
Use a shielded cable with twisted wires.
Cable length less than 30 m.
Connect the ground connections.
confocalDT 2410/2415
Sensor Power supply
12-pin connector
1
2
PC2415-1/Y
PC2415-x/OE
V Red
+
GND Blue
Sensor Signal
12-pin connector
3 RX +
4 RX -
2 Supply GND (Blue)
5 TX +
6 TX -
Housing Shield
PC2415-1/Y IF2001/USB
PC2415-x/OE
Brown TX +
White TX -
Green RX +
Yellow RX -
Cable shield ---
