1.2 INA260EVM-PDK Features
•
USB-powered; no external power supply is required
•
Support for full ±15-A input current range and 36-V common-mode voltage range of the INA260
•
EVM includes placeholders for transient voltage suppression (TVS) devices to protect the INA260 inputs from
excessively high common-mode voltages
•
Digital host controller included
•
Intuitive GUI software supports all major INA260 functional modes and simplifies device configuration
To protect against voltage transients that may exceed the absolute maximum ratings, TI highly
recommends installing the TVS devices (D3 and D4, as shown in
rating of 1000 W to clamp the input voltages to less than 36 V.
SBOU180A – NOVEMBER 2016 – REVISED MARCH 2023
Submit Document Feedback

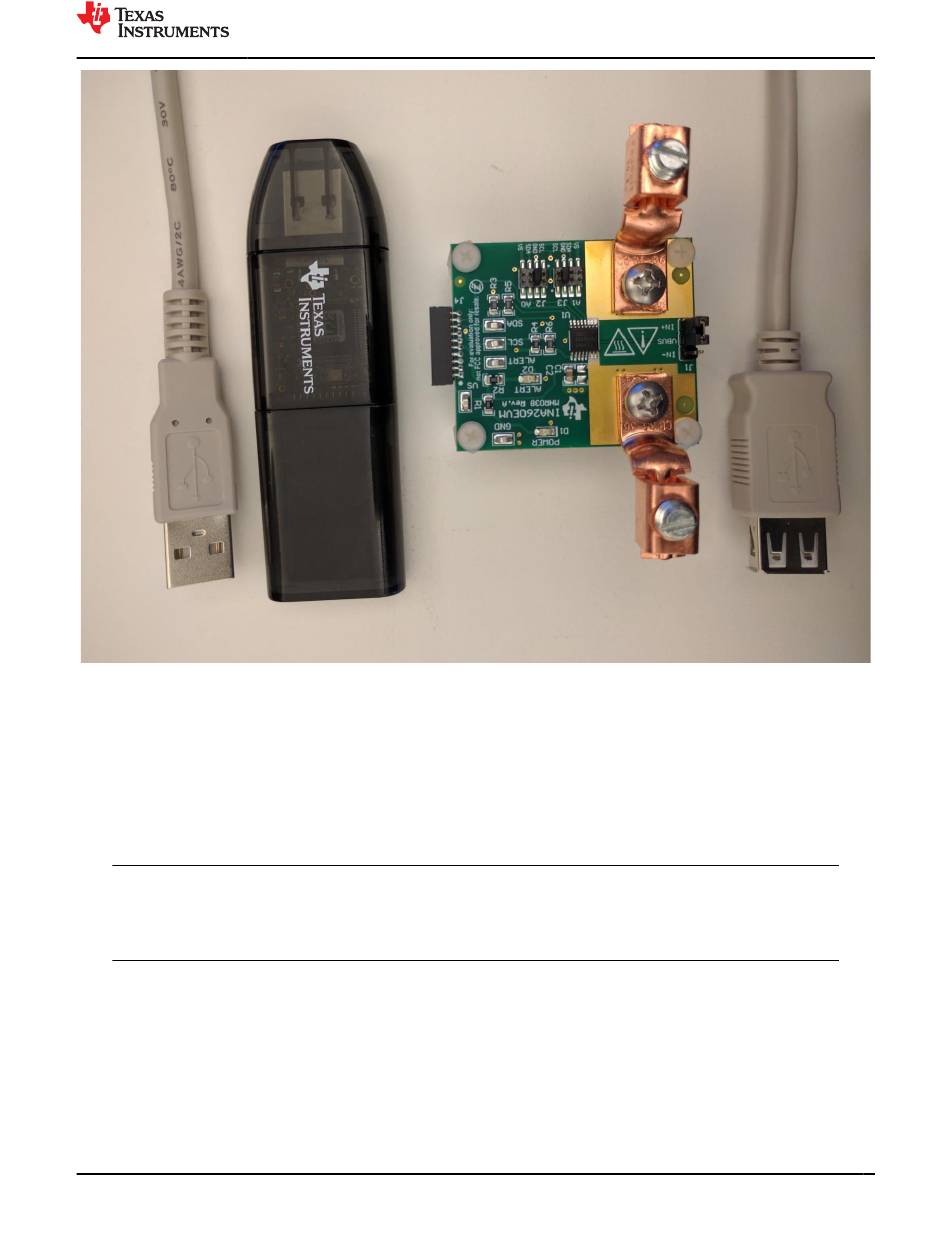

Figure 1-1. Hardware Included with the INA260EVM Kit
Copyright © 2023 Texas Instruments Incorporated
Note
Figure
1-2) with a minimum power
Overview
INA260EVM-PDK (Rev A)
3
