Registers Tool - Texas Instruments INA260EVM-PDK Instruction Manual

INA260EVM GUI Software

4.4 Registers Tool

The Registers tool (as shown in
internal user-accessible registers of the INA260 on a bit-by-bit basis. Bit names for the selected register are
displayed on the lower panel of the page, but the user is advised to consult the
definitions that may be necessary when modifying the contents of the input registers.
28 INA260EVM-PDK (Rev A)
Figure 4-8) allows the user to monitor and even change the contents of the

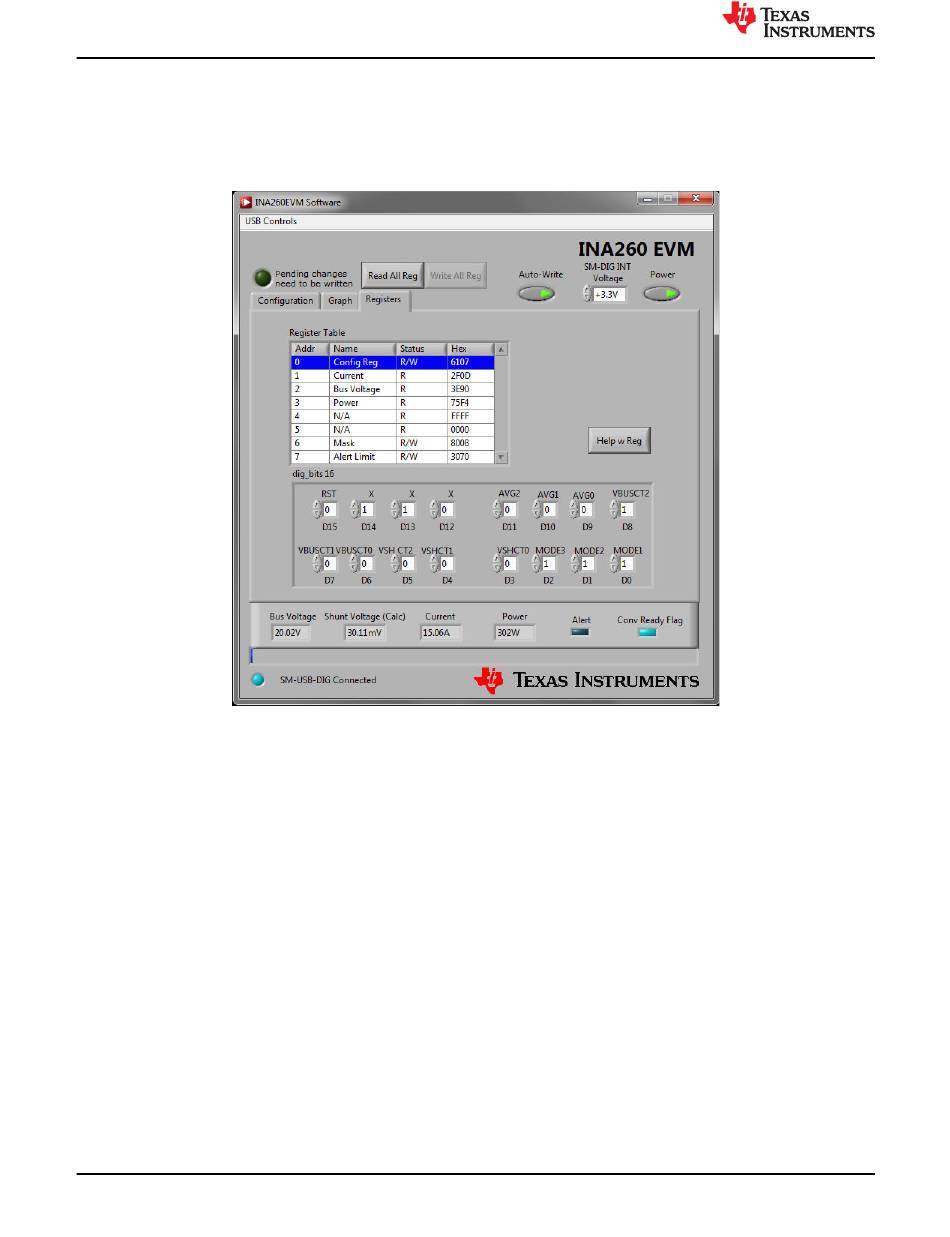

Figure 4-8. Registers Tool Page
