INA260EVM-PDK (Rev A) Setup
3.4 System Power-Up
Launch the INA260EVM GUI software. The Power button on the GUI is enabled by default, which allows the
POWER LED on the EVM to immediately light up. The light shows that the EVM PCB is receiving power.
To input
current
source low
side.

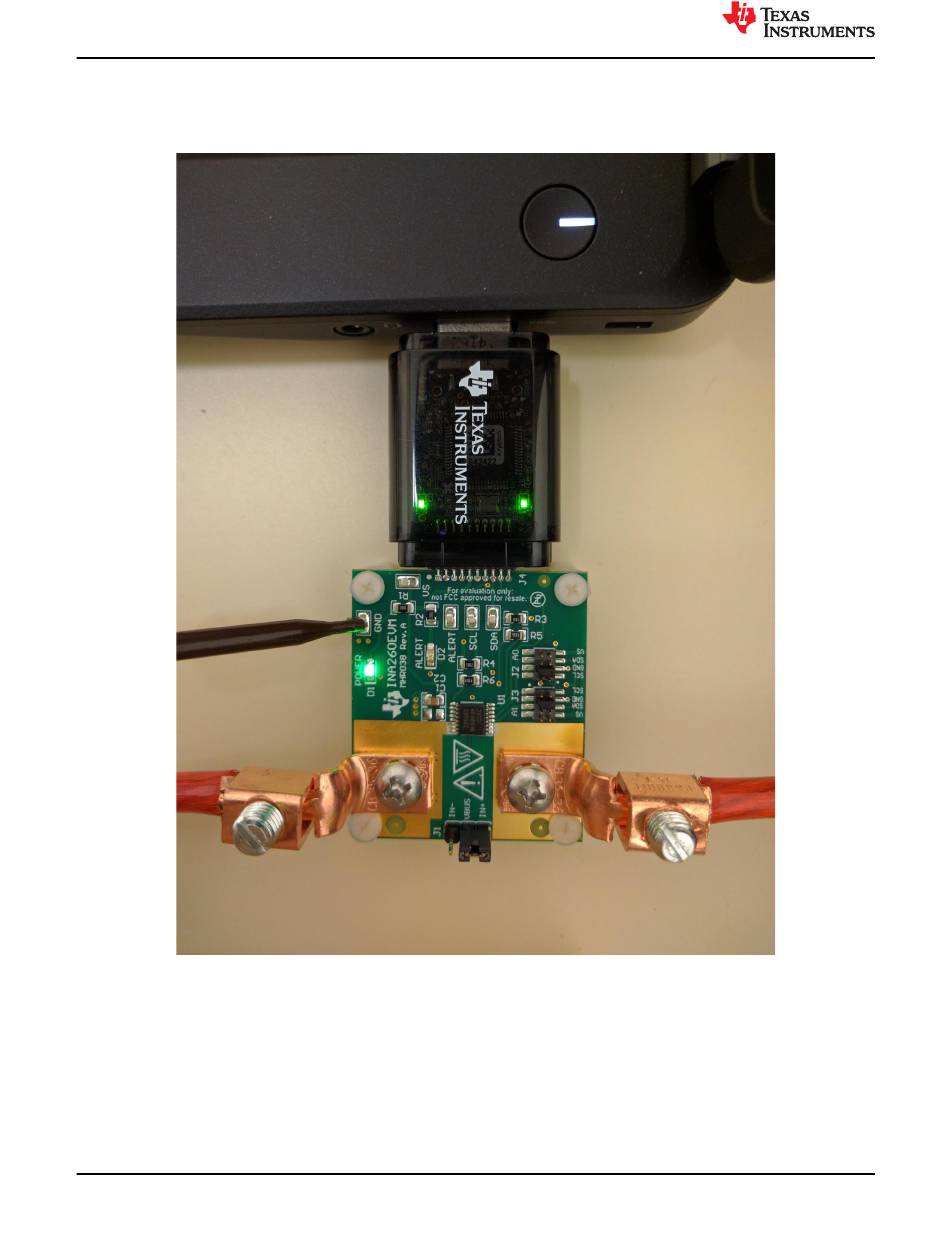

Figure 3-6. INA260EVM Powers Up Following the GUI Launch
