INA260EVM-PDK (Rev A) Setup
Additionally, the supply voltage (V
necessary (see
Figure
3-7).
With the INA260 powered on, the user can enable the analog input sources.
Section 4
discusses the GUI configuration and data collection using this setup.
18
INA260EVM-PDK (Rev A)
) is set to 3.3 V by default, but the user can select the 5-V option, if
DUT

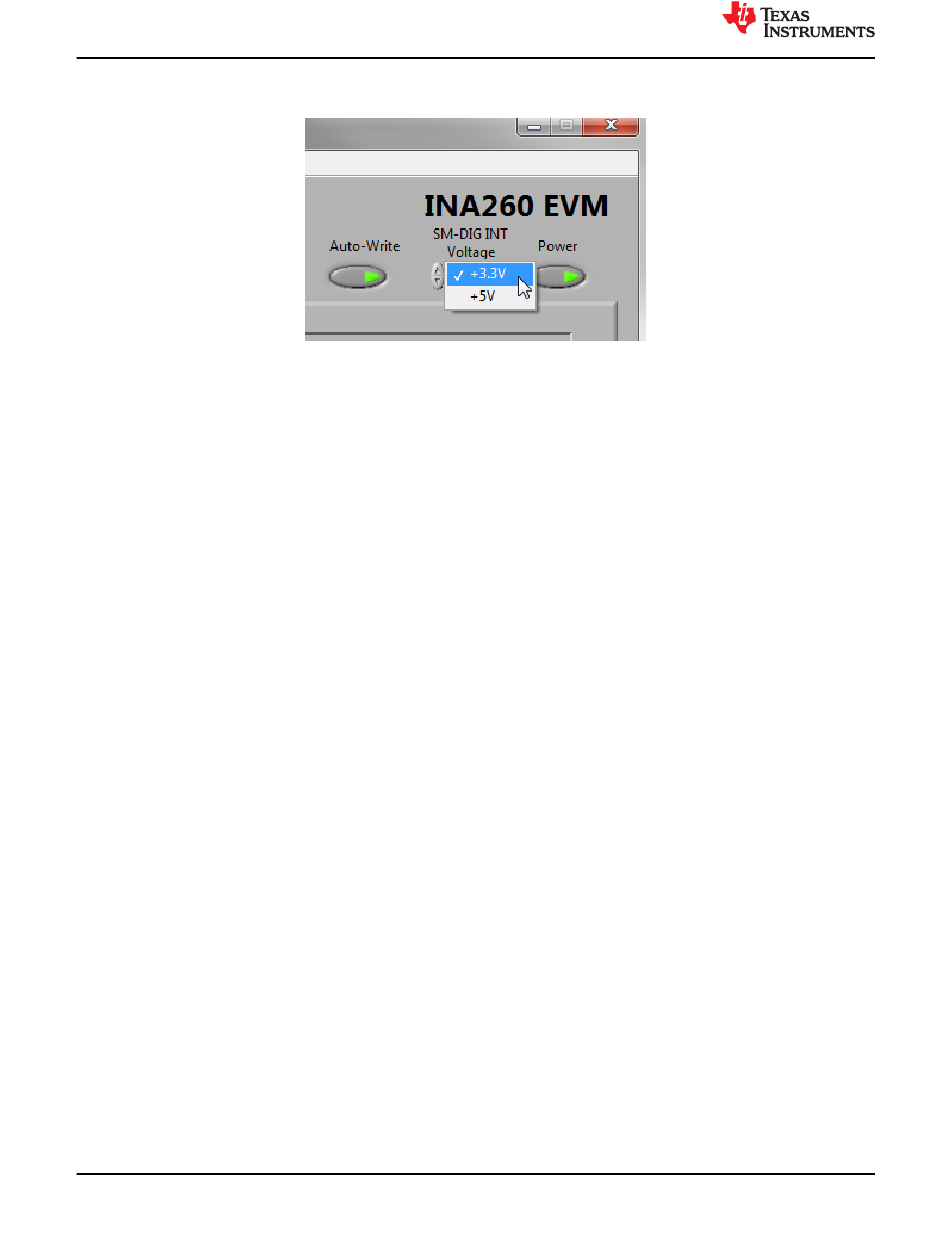

Figure 3-7. V
DUT
